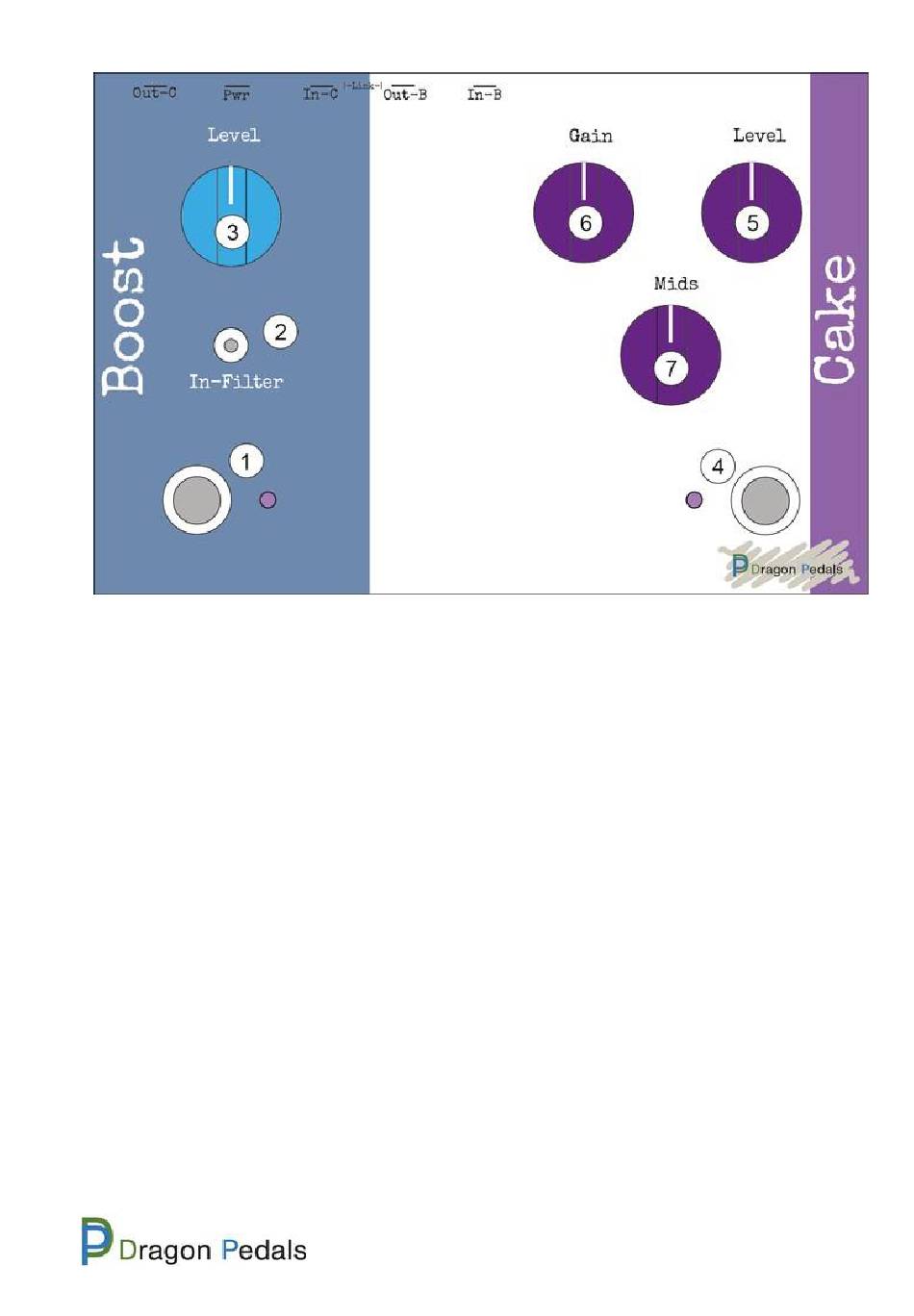

1. Footswitch operates the Chorister boost. On when the
LED is lit.
2. Frequency filter for the input signal to the Chorister
boost. Centre = least bass, Right = more bass, Left =
most bass.
3. Adjusts the level and intensity of the boosted signal.
4. Footswitch operates the Welsh Cake overdrive. On when
the LED is lit.
5. Adjusts the level (Volume) of the Welsh Cake.
6. Adjust the gain - amount of overdrive - of the Welsh
Cake.
7. Adjusts the mid frequencies of the Welsh Cake. Fully
counter-clockwise = most mids, Fully clockwise = least
mids
The Boost Cake
www.dragonpedals.co.uk
mail@dragonpedals.co.uk
Advertisement
Related Manuals for Dragon Pedals Boost Cake
Summary of Contents for Dragon Pedals Boost Cake
- Page 1 The Boost Cake 1. Footswitch operates the Chorister boost. On when the LED is lit. 2. Frequency filter for the input signal to the Chorister boost. Centre = least bass, Right = more bass, Left = most bass. 3. Adjusts the level and intensity of the boosted signal.
- Page 2 Chorister is first and boosts the Welsh Cake. However, on the back there are two sets of inputs and outputs. You can use the Boost cake as a single effect or as two separate effects by connecting it as described below.
