Summary of Contents for AlienTek T80

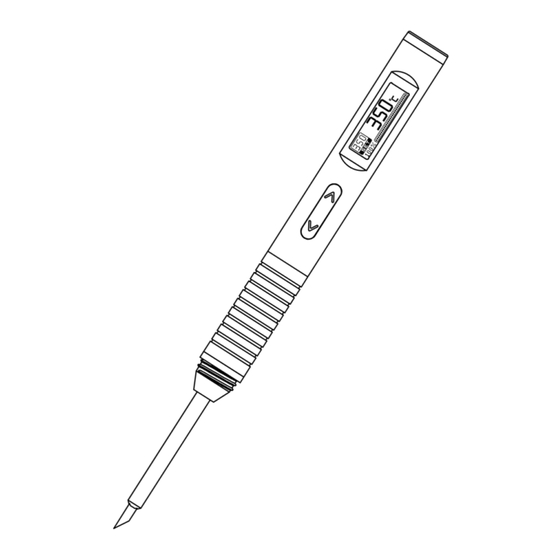

- Page 1 T80&T80P Smart Soldering Iron User Manual Pocket Size Soldering Iron User Manual User Manual Download T80&T80P Smart Soldering Iron User Manual...
-
Page 2: Table Of Contents
T80&T80P Smart Soldering Iron User Manual Pocket size soldering iron Contents 1. Description ......................3 2. Parts ........................3 3. Specifications ......................3 4. Installation ......................4 5. Interface ......................... 4 6. Operation ....................... 4 7. System flow ......................6 8. -
Page 3: Description
Small size, easy to carry. Ergonomically designed handle, good grip. 2. Parts Note: The T80 is the same as the T80P shell. The soldering tip used is different. Can't be used interchangeably! 3. Specifications Model T80P Power port... -
Page 4: Installation
T80&T80P Smart Soldering Iron User Manual Pocket size soldering iron Heating power 18~100W(adjustable) Screen 0.87’ OLED (128*32 Pixel) Handle size L175mm Ø14mm Tip model T80-xx T80P-xx Tip size T80-K (L80mm Ø3.5mm) T80P-KU(L98mm Ø4.5mm) Resistance 2.1Ω 2.5Ω Overall weight 38.5g 42.8g 4. - Page 5 T80&T80P Smart Soldering Iron User Manual Pocket size soldering iron Temperature adjustment: click A or B to enter the temperature adjustment UI. And release the button first, then click or long press to adjust the temperature. After the adjustment, automatically return after 3 seconds.
-
Page 6: System Flow
Figure 7-1 Work flow After the T80&T80P smart soldering iron is powered on, it displays the logo first, Then it is prompted to press the A button to enter the main UI (the button heating UI can be set to turn on or off in the menu. -
Page 7: Working Voltage
T80&T80P Smart Soldering Iron User Manual Pocket size soldering iron 8. Working voltage The machine can set the heating power of different voltages from the fast charger to obtain different voltage and the corresponding voltage. However, the following two situations may occur: 1. -
Page 8: Firmware Upgrade
T80&T80P Smart Soldering Iron User Manual Pocket size soldering iron Rotate the display by 180 degrees, and the functions of buttons A and B are Rota 0 10.Rota 180 Rota 0 reversed. Suitable for left-hand work Rota 180 mode ... -
Page 9: Maintenance
T80&T80P Smart Soldering Iron User Manual Pocket size soldering iron Figure 10-2 connection succeeded Step 4: Select the local firmware, and load the T80_APP.atk file, click to start the upgrade and wait for the upgrade to complete. The operation is shown in Figure 10-3 below. -
Page 10: Faq
13. Serivices 1. After – sales Service： T80&T80P host has a one-year free warranty service in the case of non- artificial damage. Please contact the dealer for warranty service. Soldering tips are consumables, if there is no quality problem, once used they will not be returned.
