Summary of Contents for IMPACT ACOUSTIC Undercover Mount System

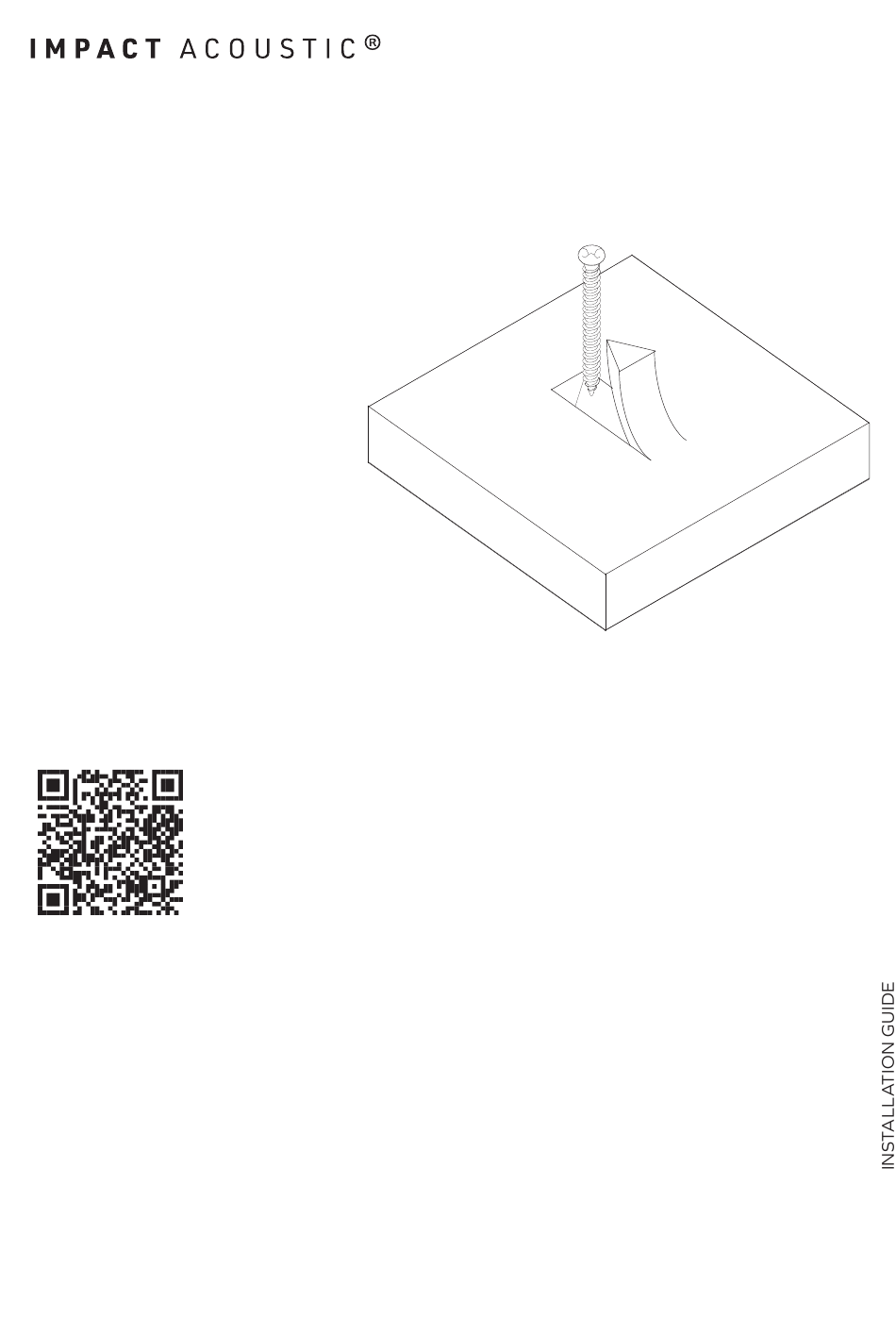

- Page 1 Undercover Mount System...
- Page 2 Undercover Mount System Installation Guide Undercover Mount All our Wall Covering products come with pre-cut Undercover attachment points. Those points are distributed along the edge (10-15mm offset) and in the middle of the panel. The exact distribution might vary depending on the particular panel design.
- Page 3 Undercover Mount System Geometry Information 10-15mm (0.4-06”) (0.3”) 12mm Archisonic Felt panel (0.3”) 25mm (1”) 1 – All dimensions are nominal WeMake (Switzerland) connect@impactacoustic.com (+41) 41 566 55 55 AnImpact (USA) usa@impactacoustic.com ( +1) 646 918 1581 Archisonic Woodgrain rev.01 - 26.04.24...
- Page 4 Undercover Mount System Installation Guide Undercover Mount Locate the Undercover cuts on the panel Pull out the edge Cuts are distributed along the edge (10- Use a flat head screwdriver to pull out the 15mm offset) and in the middle of the panel.
- Page 5 Undercover Mount System Application preview Undercover Mount Closed Undercover cut is barely visible at the surface of the panel, even at the closeup view. See the picture below that shows open and closed Undercover cut integrated in our Vertigo Wall Covering panel.
