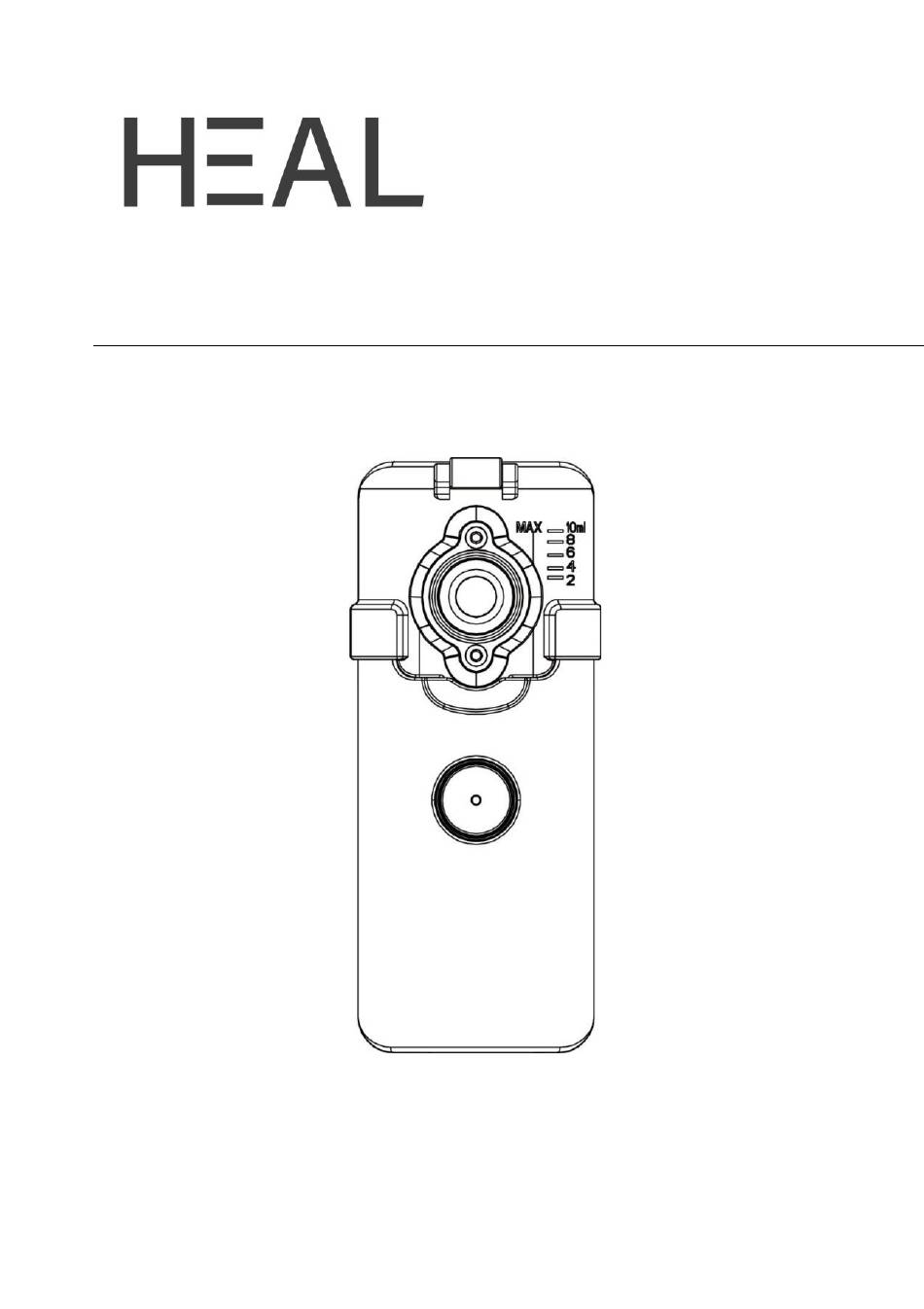

- Page 1 HEAL™ Ultrasonic Mesh Nebuliser H-NEB02 Instructions for Use...
- Page 2 Catalogue 1.Product introduction - 1 - 1.1 Product characteristics - 1 - 1.2 Working principle - 1 - 1.3 Intended use - 1 - 1.4 Contraindication - 1 - 1.5 Main technical parameters - 2 - 1.6 Product structure composition - 3 - 1.7 Package contents - 3 -...
-
Page 3: Product Introduction

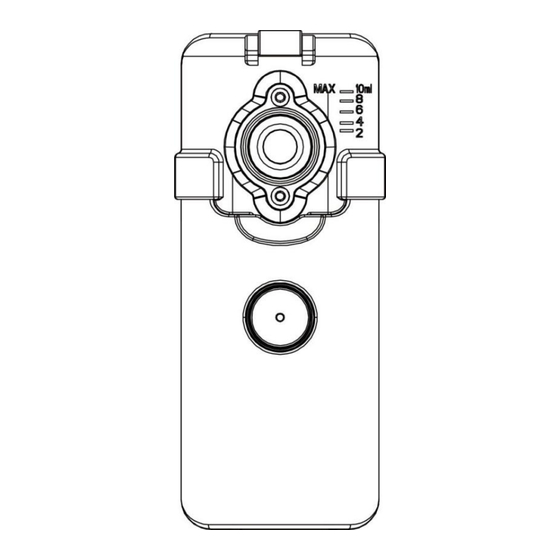

1.Product introduction 1.1 Product characteristics The Heal Ultrasonic Mesh Nebuliser (hereinafter referred to as nebuliser) is the use of ultrasonic oscillations to break the drug solution into microscopic droplets. It is safe and efficient to deliver medication to the upper respiratory tract. This device is conveniently portable. - Page 4 Built-in lithium battery:DC3.7V,1200mAh, Power supply Charging mode DC 5 V; 1A Lithium battery use Number of 1000 times Ultrasonic working frequency 103kHz±10% Speed 1 (Low grade nebulising rate): 0.15 0.30mL/min Nebuliser rate Speed 2 (High grade nebulising rate): ≥0.3 mL/min Particle size Particle size less than 5um accounts for 60% above Maximum noise...
- Page 5 1.6 Product structure composition The Heal Ultrasonic Mesh Nebuliser is mainly composed of main engine, liquid cup, mouth piece and masks, as shown in the following figure: 1.7 Package contents number name quantity remarks Main Body Detachable Liquid Cup Mouth Piece...
- Page 6 2.1.1 Charging the nebuliser This product has built-in lithium battery, the USB end of the charging cable is connected to the USB interface of the mesh nebuliser, the other end is connected to the adapter (not included), and then the adapter can be plugged into the network power supply to charge, or directly connected to the USB interface.
- Page 7 drugs will remain on the inner wall. Please clean the mouth piece after use. figure 5 2.3.2 Using the mask Select the appropriate size mask for the patient (adult or paediatric) Connect the mask to the nebuliser liquid cup as shown in figure 6. Gently place the mask over the patient's mouth and nose.
- Page 8 2.3.1 Adding medication to the liquid cup Open the lid of the liquid cup. Pour the medication into the liquid cup. Close the lid of the medicine cup and fasten the clip. Warning: The maximum liquid capacity of the cup is 10ml. It is suggested that be 2- 10ml of medication be added.
- Page 9 Press the switch button a second time, and a solid blue indicator light will display, indicating Speed 2, which is a faster speed mist. Once the liquid medicine is consumed, the main unit will stop automatically, and no mist will appear. At this time, press the switch button to shut down, the indicator light will go off.
- Page 10 recommended. Please store out of reach from infants, young children, and mentally ill patients. Do not to touch the connector/ electrode/ mesh whilst nebulising. Hold the nebuliser as vertically upright as possible during use. Do not tilt the unit more than 45 degrees during use. Ensure medicine in the liquid cup is disposed of after each use.
-
Page 11: Fault Analysis And Troubleshooting
3. Fault analysis and troubleshooting This product is a medical device, and to ensure the safety of the product and patients, please strictly follow the operation steps in this manual or under the guidance of the doctor. Some common problems and troubleshooting methods in the use of the product are shown in the following table. -
Page 12: Cleaning, Disinfection, And Maintenance
1. The handheld is 1.Re-attached the liquid cup and its not the right way components 2.Too few drugs or modified drugs are not 2. Nebuliser is too suitable for the use of this product (please No mist tilted. consult your doctor for which drugs to 3. - Page 13 and that the power switch is off. Before and after each use of the product, please clean the liquid cup and accessories. Remove the liquid cup and accessories before cleaning. The main unit is not waterproof, therefore do not immerse in water. Simply wipe with a soft cloth.
-
Page 14: Conditions Of Transport And Storage
cross-infection. ● Rinse thoroughly with pure water and dry in a ventilated area before storing 4.3 Maintenance If not used for a long time, the operator is recommended to clean the machine when it is used again. There is no need to disinfect the main unit. 2. -
Page 15: Compatibility (Emc)
disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. - Page 16 use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.” 2* WARNING: Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.”...
- Page 17 Electrical fast ± 2 kV for power supply transient/burst Not applicable lines IEC 61000-4-4 Surge ± 0.5kV, ± 1 kV line(s) to Not applicable IEC 61000-4-5 lines Voltage dips, 0 % UT; 0.5 cycle at 0°, short interruptions 45°, 90°, 135°, 180°, 225°, and voltage 270°and 315°...
- Page 18 61000-4-3 *FM+ 5Hz 450 MHz deviation: 28 V/m 28 V/m 1kHz sine 710 MHz **Pulse 745 MHz Modulation: 0.2 W 9 V/m 9 V/m 780 MHz 217Hz 810 MHz **Pulse 870 MHz Modulation: 28 V/m 28 V/m 930 MHz 18Hz 1720 MHz **Pulse 1845 MHz...
- Page 19 Applicant: Taga Medical Unit 2 & 3 Mirabel Industrial Park, Cnr Maple & Mirabel Roads, Pomona, Kempton Park, 1619 www.tagamed.com Date of publication: 17 May 2022 - 5 -...
