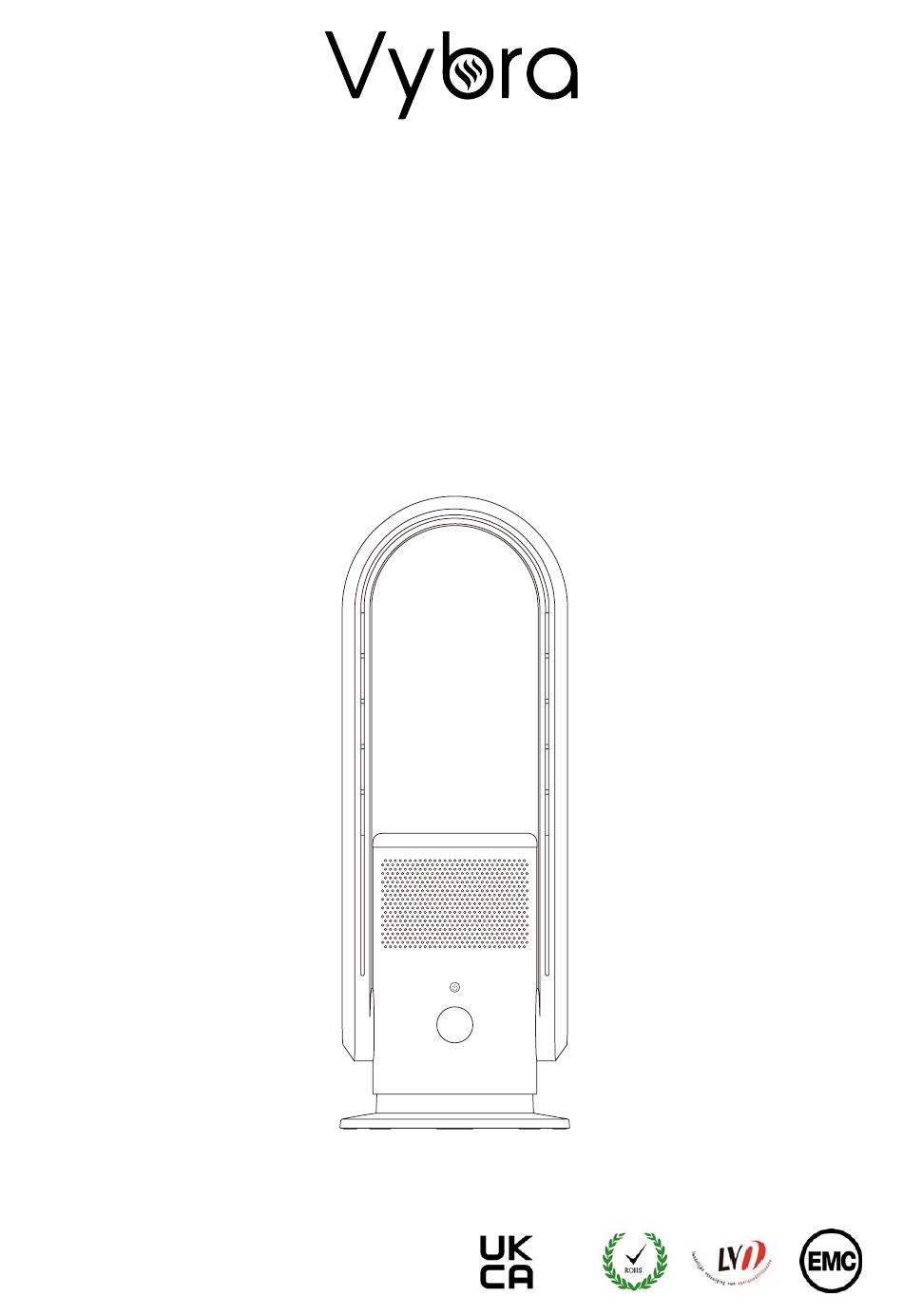

- Page 1 Vybra ARCH BLADELESS 3-IN-1 PTC HEATER, BLADELESS COOLING FAN & UVC AIR STERILISER Instruction Manual MODEL: VSA001 RATING: 220V~ / 50/60Hz / 230W vybrasolutions.co.uk | sales@vybrasolutions.co.uk...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Please read all instructions before using this product and keep these safety instructions for future reference. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: This product is only suitable for indoor use and should not be used outdoors;... -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS PTC HEATER, BLADELESS COOLING FAN & Product Name UVC AIR STERILISER Model VSA001 Rated Voltage 220-240V 45W (Fan) Operating frequency 50-60Hz Rated capacity 2000W (Heat) Oscillation 80±5° Timer 1-8H 255 x 255 x 700 Size Weight 4.6kg (mm) Scope of supply: host, remote, User Manual ASSEMBLY AND PARTS Magnetic... - Page 4 IMPORTANT INFORMATION Remove all packaging materials Before using the fan, make sure that it is on a flat and stable surface. Damage may occur if it is placed on an incline or a decline. Set all the controls to the OFF position and insert the plug into a socket outlet that is compatible with the rating label on the product.
- Page 5 SCREEN MANUAL mode timer WiFi UV-C Room temperature Speed Automatic Mode Sleep Mode: Balances the noise production with the wind speed for pleasantly quiet cooling Natural Mode: Slight changes in wind speed simulate a natural breeze Strong Mode: Sets the wind speed to maximum output vybrasolutions.co.uk | sales@vybrasolutions.co.uk...
- Page 6 OPERATING INSTRUCTIONS 15° 15° • Insert the power plug into the socket • Turn the power switch ON • The LED display will turn ON Wind Circle Adjustment • After the operation stops, swing in the direction you like; • Please hold down the main unit with one hand, and adjust the wind ring by 15 degrees front and rear.
- Page 7 HEATER OPERATION • Press “heater mode sign” to turn on heater mode. • LED screen will display the ambient temperature* (tempºC). Adjust the temperature setting, the number shown in the screen will flash ranging from 1-30ºC, it will stop flashing after 5 seconds if no button is pressed, •...
-
Page 8: Remote Control
REMOTE CONTROL Battery Before first use: remove the clear contact-prevention strip coming out of the closed battery compartment. Battery replacement: as shown in the following picture. Please note the battery direction. Do not install the positive and negative poles of the battery in wrong position. -
Page 9: Cleaning And Maintenance
CLEANING & MAINTENANCE This appliance requires little maintenance. It contains no user-serviceable parts. Any servicing requiring disassembly, other than cleaning, must be performed by a qualified appliance repair technician. • CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent. - Page 10 Name Button The product can be switched on and off by pressing On / Off the On / Off Button Press this key to switch the between modes: Automatic Mode, Sleep Mode, Natural Mode, Strong Mode Automatic mode: displays ‘Ⓐ’ automatically Modes Sleep Mode: ' ' the lowest airspeed and noise Natural Mode: ' ' air volume 3-4-5 air speed...
- Page 11 NOTE: When you operate the remote control, the fan will 'beep'. UPGRADE: Should you wish to remove air particles from your room as well, the Vybra Arch has the option to be fitted with a Hepa Filter. Please contact sales@vybrasolutions.co.uk...
-
Page 12: Troubleshooting
No power - The power switch is not on - Turn the unit on - The machine is damaged - Contact Vybra Solutions: sales@vybrasolutions.co.uk New Unit - when the unit is used No action required Odour emission for the first time, the fan motor... - Page 13 vybrasolutions.co.uk | sales@vybrasolutions.co.uk...
-
Page 14: Smart Life
How to Connect the VYBRA ARCH to the App 1. Your phone must be connected to a Wi-Fi network. 2. Download the “TUYA smart” or “SMART life” app or scan one of the following QR codes: TUYA smart SMART life 3. - Page 15 A guide to 2.4GHz and 5GHz networks If you own a “dual band” router (identified on the sticker on the back), you will have the option of using two bands throughout your home: 2.4GHz and 5GHz. What’s the difference between 2.4GHz and 5GHz? Each WiFi enabled device in your home can connect to one of the 2.4GHz or 5GHz bands at one time.
- Page 16 e: sales@vybrasolutions.co.uk w: vybrasolutions.co.uk vybrasolutions.co.uk | sales@vybrasolutions.co.uk...
