- Page 1 Tube Sealer CR6 User’s Manual Technical Reference Distributed by: OriGen Biomedical, Inc.
-
Page 2: Electrical Safety
Important Safety Information This user’s manual is written for the Tube Sealer CR6 user with specific instructions for sealing OriGen CryoStore cryopreservation bags. The operational methods and routines were developed and tested to ensure a reliable, safe and effective operation of CR6. It is important that the operator read and understand the contents of this manual before using the CR6. -
Page 3: Table Of Contents
Table of contents: Important..........................i Electrical safety........................i Batteries..........................i Environmental effects......................i Quick Start...........................2 Design Properties.........................2 Function ..........................3 Operation..........................3 Sealing Tubing........................4 Temperature-alarm......................4 Charging battery .......................4 Maintenance and service.....................6 Cleaning the jaws........................6 Change of batteries......................6 Troubleshooting........................7 Technical data........................8 Warranty..........................8 Declaration of Conformity....................9 Revision History: Rev 04, Jan 2020: Removed OriGen EUAR address. -
Page 4: Quick Start

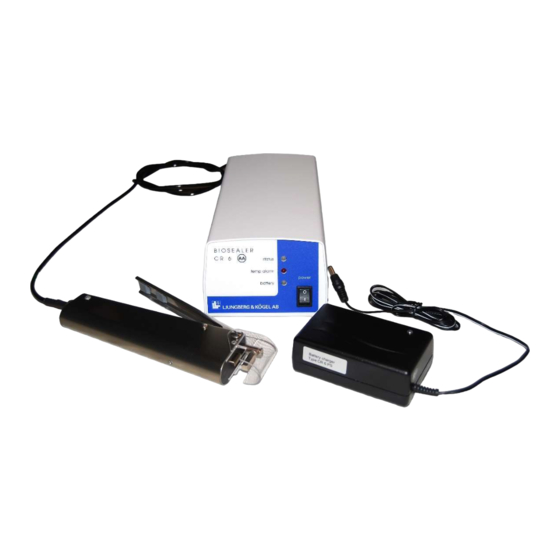

• Console including a battery, a high frequency generator and a control unit • Battery charger and cables The Tube Sealer CR6 is a battery operated sealing unit especially suitable for sealing tubing from cryopreservation bags and tubing sets for administration of blood products. -
Page 5: Function
in a mobile or stationary capacity. However, the sealer should cool at least one minute after making multiple seals to produce consistent, reliable seals. Function Sealing is complete in 2-5 seconds depending on type of tube. The width of the seal is fixed at about 3 mm. -
Page 6: Sealing Tubing
Sealing PVC tubes, EVA and PVC/EVA tubes 1. Dry the tubing if it is wet. (Wet tubing will cause the system to flash the Status LED and abort the sealing operation) 2. Place the tubing between the jaws and squeeze the handle fully. 3. - Page 7 Use only the battery charger supplied with the CR6! The charging LED on the Console should be either orange or red when the charging is started. If it turns green immediately after the power cable is connected to a power supply, the power cable must be unplugged and the unit allowed to cool before proceeding.
-
Page 8: Maintenance And Service
Maintenance and service The maintenance that can be done by the operator is limited to cleaning. Electrical repairs must be done by an approved service personnel. The power unit and the handle can be cleaned with a damp sponge and a mild soap solution or 70% Isopropyl alcohol (IPA). -
Page 9: Troubleshooting
Troubleshooting Issues/Problems Solutions Initial seals are good, but unit makes poor Allow unit to cool slightly between seals. or no seals on the 3 or 4 Keep handle closed for a few seconds after the handle LED goes out, try to start seals 8-10 seconds apart to allow RF generator to cool. -
Page 10: Technical Data
Class II type B. Limited Equipment Warranty Ljungberg & Kögel AB (L&K) hereby guarantees the original buyer that Tube Sealer CR6 is manufactured in a professional and quality manner, and will be free from all faults during a period of one year from the date of delivery from OriGen. -
Page 11: Declaration Of Conformity
Disclaimer of Warranties OriGen Biomedical warrants that reasonable care has been used in the manufacture of this device and that it was free from defects in workmanship or materials at the time of shipment from OriGen. OriGen's sole obligation shall therefore be to repair or replace any device which it determines was defective at the time of shipment.
