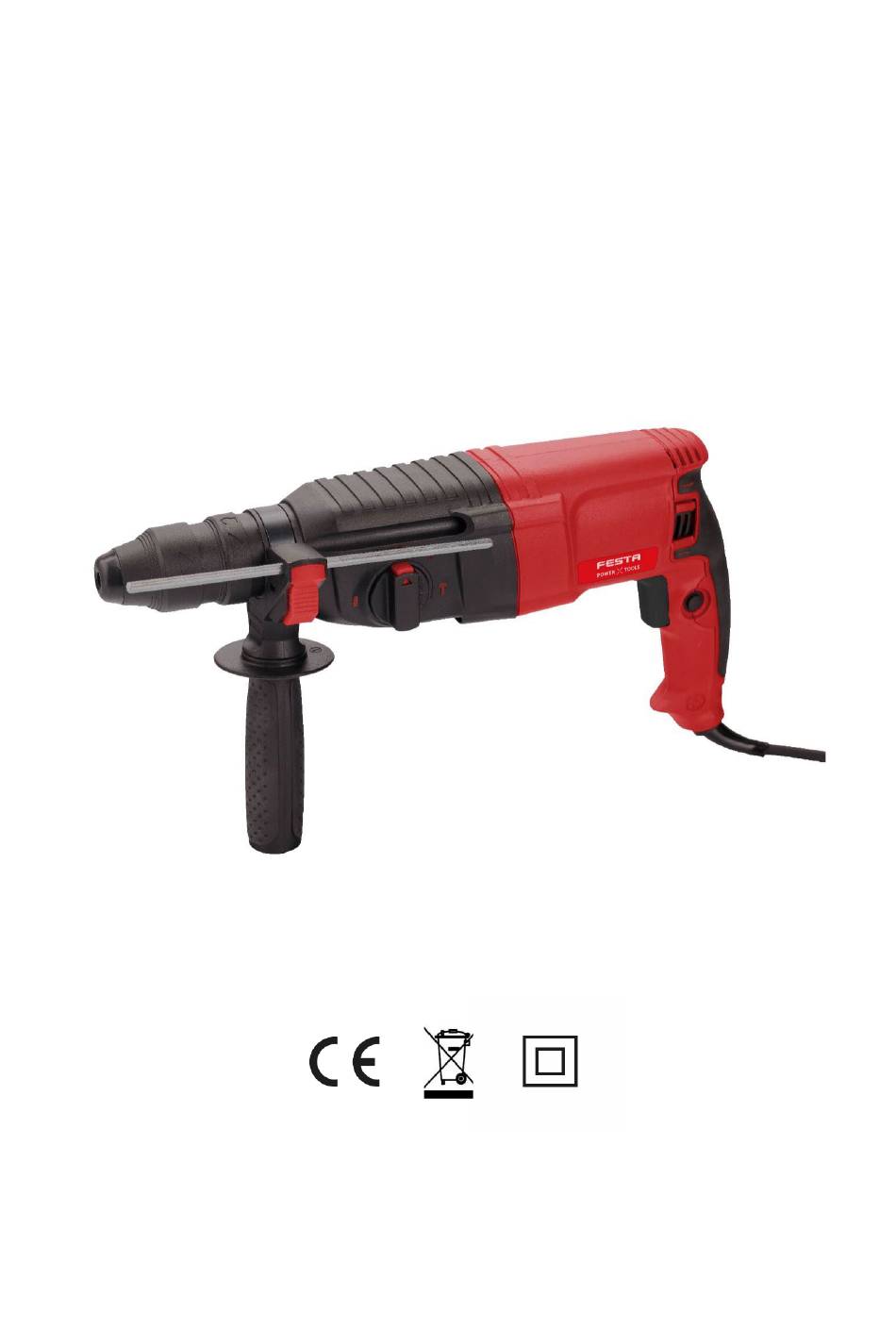

- Page 1 Hammer drill Item No.: 28220 Model No.: 2622 Manual for use Please read this manual carefully before using.
-
Page 2: Technical Specifications
1. Technical Specifications Item No. 28220 Model No. 2622 Rated voltage 230 V, 50 Hz Rated power input 800 W Impact frequency at rated speed 0-5500 bpm No load speed 0-1350 min −1 Impact energy 2,8 J Tool holder SDS+... -
Page 3: General Power Tool Safety Warnings
1. Quick change keyless chuck 2. SDS-plus quick change chuck 3. SDS-plus tool holder 4. Dust protection cap 5. Locking sleeve 6. Lock ring for rapid-change chuck 7. Rotational direction switch 8. Lock-on button for On/Off switch 9. On/Off switch 10. - Page 4 • When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. • If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) or an earth leakage circuit breaker (ELCB).
- Page 5 power tools. • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories, tool bits etc in accordance with these instructions, taking •...
-
Page 6: Auxiliary Handle
5.1 Auxiliary Handle • Operate your power tool only with the auxiliary handle ⑭. Rotating the Auxiliary Handle The auxiliary handle⑭ can be set to any position for a secure and low-fatigue working posture. Turn the bottom part of the auxiliary handle⑭ in counterclockwise direction and swivel the auxiliary handle⑭... -
Page 7: Changing The Tool
Grasp the SDS-plus quick change chuck② or the quick change keyless chuck① completely with your hand. Slide the quick change chuck with a turning motion onto the drill chuck mounting until a distinct latching noise is heard. The quick change chuck is automatically locked. Check the locking effect by pulling the quick change chuck. -
Page 8: Starting Operation
Removing Drilling Tools without SDS-pIus Firmly hold the retaining ring⑥ of the quick change chuck. Open the tool holder by turning the front sleeve⑤ in the direction of the arrow until the tool can be removed. 6. Operation 6.1 Starting Operation •... -
Page 9: Working Instructions
To switch off the machine, release the On/Off switch⑨. When the On/Off switch⑨ is locked, press it first and then release it. Setting the Speed/Impact Rate The speed/impact rate of the switched on power tool can be variably adjusted, depending on how far the On/Off switch⑨... -
Page 10: Disposal Of Waste
7. Meaning of symbols on labels Meets relevant EU requirements. Electrical waste, see below. Second class protection equipment. Double insulation. Use certified eye and ear protection with a sufficient level of protection. Read the instructions before use. 8. Disposal of waste Packaging materials Dispose of packaging materials in the appropriate container for sorted waste. -
Page 11: Ec Declaration Of Conformity
Subjects of declaration-product identification: Product: Hand Held Hammer Drill Model No.: 2622 Item No.: 28220 comply with the following harmonized standards, including their amending annexes, if any, by which conformity with the following harmonization provisions is declared: 2006/42/EC: EN 62841-1:2015;...
