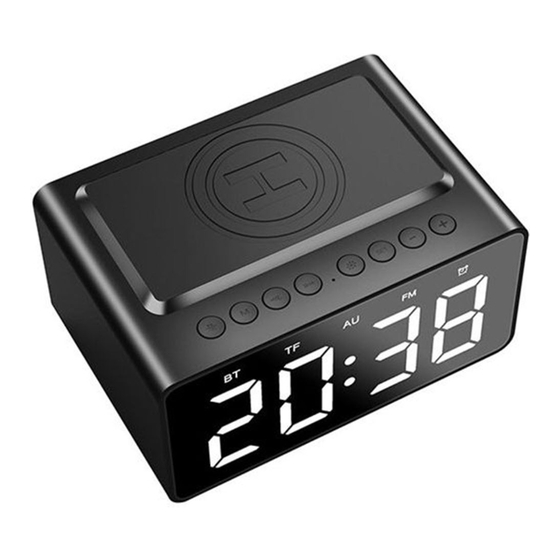

Wireless Qi Charger/FM Radio/Speaker
1. Functions Description
1.1 Button Keys
: Wireless Charger Zone
Music speaker function keys:
Power on/off ; Play/pause , Answer/end phone calls
Function switch key:
BT / TF / AU / Time Clock (only clock , no speaker function to save power)
Volume down (short press); Previous song (long press)
Digital Alarm Clock
User Guide
BT508
Advertisement
Table of Contents
Summary of Contents for iBright BT508
- Page 1 Digital Alarm Clock Wireless Qi Charger/FM Radio/Speaker User Guide BT508 1. Functions Description 1.1 Button Keys : Wireless Charger Zone Music speaker function keys: Power on/off ; Play/pause , Answer/end phone calls Function switch key: BT / TF / AU / Time Clock (only clock , no speaker function to save power)
- Page 2 Volume up (short press); Next song (long press) Time & Alarm clock setting keys Short press to cycle clock brightness: strong brightness(default)/normal brightness/low brightness; Long press to turn OFF/ON the LED clock display. Tips: 1) In order to save power, the strong brightness setting will auto change to low brightness after 5 minutes. 2) Light stays on when Type C charging.
- Page 3 ① LED Digital Display: Time Clock ② BT Mode; Bluetooth working ③ TF Mode; MP3 music playing (TF card inserted) ④ AU Mode; audio device music playing (3.5mm audio line-in) ⑤ FM Mode: FM radio playing (With 3.5mm audio line-in as antenna, short press ”M” to switch to “FM” mode) ⑥...
-
Page 4: How To Use
2. Short press “ ” to switch to “BT” mode. pairing mode Flashes fast 3. Scan “BT508” on your compatible device and select it to pair with alarm clock speaker. When pairing successful BT mode on clock will Connected ‘BT’ light on Dong- stop flashing. - Page 5 1. Go to “Bluetooth” on mobile phone. 2. Disconnect BT508 on “MY DEVICES” list Disconnect BT flash fast Dong--- from mobile phone. 4. Your device will auto disconnect when Bluetooth range over effective transmission distance (ie 10m). TF mode will auto play MP3 music when TF card ‘TF’...
- Page 6 Clock Function Operations Indicator Voice Prompt 1. Hour setting: Long press the “ ” button the Hour number flashes. Press “ ”/“ ” to decrease/increase number. Long press “ ” to finalize the correct hour clock setting. Time Clock 2. To set Minutes: After the Hour number is Setting set, short press the “...
- Page 7 2.3.3 Keep your alarm clock and mobile device within range. Begin searching for Bluetooth device on your mobile device, and select “BT508” . If a password is required , enter “0000”. BT Light on screen will stop flashing once connected.
- Page 8 2.6 FM radio 1. Plug-in 3.5mm cable (side of clock) as antenna. “AU” light will appear on display screen 2. Short press “M” until “FM” mode lights up on display screen. FM will auto turn on. 3. To select FM radio station: (i) In FM mode, long press “M”...
-
Page 9: Specifications
Note: wireless charge function will not work if alarm clock is not plugged into mains power, or if your phone is not Qi enabled. Popular Qi Enabled/compatible phones include (for example): Apple: iPhone 8, 8Plus, XR, XS, XS Max, 11, 11Pro, 11ProMax, SE, Samsung: Galaxy S7, S8, S8+, S9, S10, S10e, S10Plus, S10 5G/Note 8, 9, 10, 10+, 10+ 5G, S20, S20Ultra Huawei: Mate20Pro, P30Pro,Mate30Pro, P40Pro, P40Pro+, 11 Google: Pixel 3, Pixel3XL, Google4XL, Google Pixel44... -
Page 10: Troubleshooting
Port: AUX-in, Micro SD card, TYPE C, DC5V Dimensions: 130 x 90 x 68.5mm 3.2 Wireless Charger Charging Adapter :DC5V 3A (allow wireless charging & USB output charging) Output Power: 5V 1A 5W 4.Trouble Shooting: Solution 1. If fails to find model name or connect with speaker, check the clock radio and smartphone are both in pairing mode. - Page 11 Australia Distributed by K2 Sales Pty Ltd. PO Box 696 Black Rock, VIC. 3193 Australia e: Info@iBright.com.au Join us on our socials @iBrightAu...
