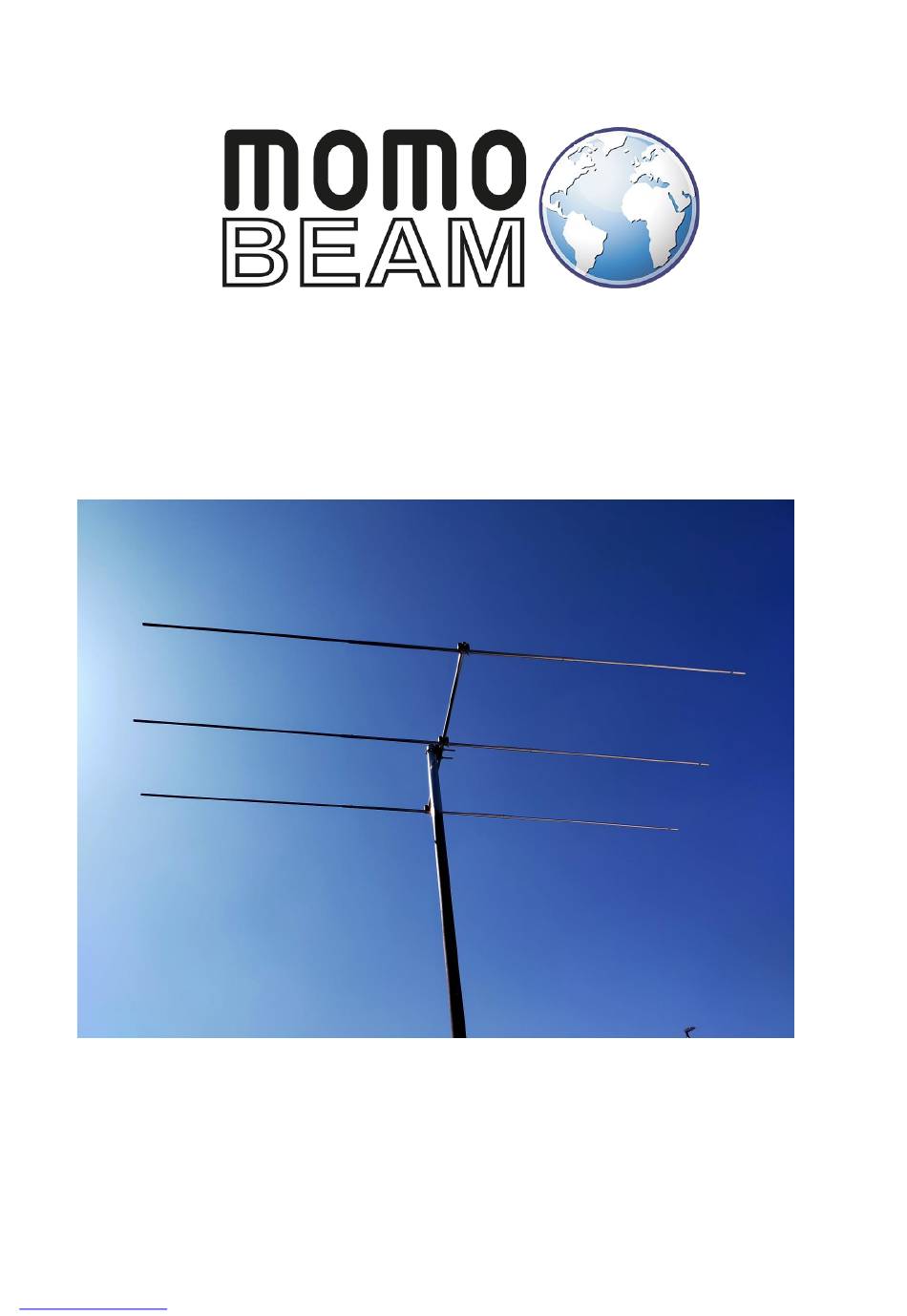

ASSEMBLY MANUAL
MONO3 6P
Momobeam
C.da Berbarello 508 - IT-91025 Marsala Italy
P.Iva IT-02439250818 Tel. +39 393 9906980
– info@momobeam.com
www.momobeam.com
MONO3 6P
Monoband portable Yagi Antenna
50MHz
ASSEMBLY MANUAL
Date issued
Revision
24/02/2023
01
page. 1
Advertisement
Related Manuals for Momobeam MONO3 6P
Summary of Contents for Momobeam MONO3 6P
- Page 1 ASSEMBLY MANUAL Date issued Revision MONO3 6P 24/02/2023 MONO3 6P Monoband portable Yagi Antenna 50MHz ASSEMBLY MANUAL page. 1 Momobeam C.da Berbarello 508 - IT-91025 Marsala Italy P.Iva IT-02439250818 Tel. +39 393 9906980 – info@momobeam.com www.momobeam.com...
-
Page 2: Assembly Advice
Momobeam warrants to the original purchaser that this product will be free from defects in material and workmanship for a period of two (2) years from the date of purchase. Momobeam will solely determine whether a part will be covered by this limited warranty and whether a part will be repaired or replaced. - Page 3 ASSEMBLY MANUAL Date issued Revision MONO3 6P 24/02/2023 SPECIFICATIONS BAND 6 meters (50 MHz) Gain (dBi)* 11.22 Gain free space (dBI) 6,5 (4,36 dBd) Front/back ratio (dB) Elements SWR <1.5:1 50 to 51 MHz Longest element: 310cm / 10.17 ft.
-
Page 4: Step1 - Boom Assembly
STEP2 - BOOM TO MAST U-Bolt ASSEMBLY The MONO3 6P boom comes pre-drilled and ready to accept the U-Bolt that you will need to secure the antenna to the mast. Please note: The supplied U-Bolt accepts a Mast with 30 to 50mm range... - Page 5 ASSEMBLY MANUAL Date issued Revision MONO3 6P 24/02/2023 STEP 4 - ELEMENTS TERMINAL PARTS ASSEMBLY You need to locate the terminal parts for each element by checking the labels. Slide the element terminal part into the corrispondent central part until holes align. Please note that the central element part has two size holes. Secure the elements sections with one bolt, one washer and one butterfly locking nut.
