Installing Stainless Steel Handrail Wall Bracket
Round Slim
Overview
1

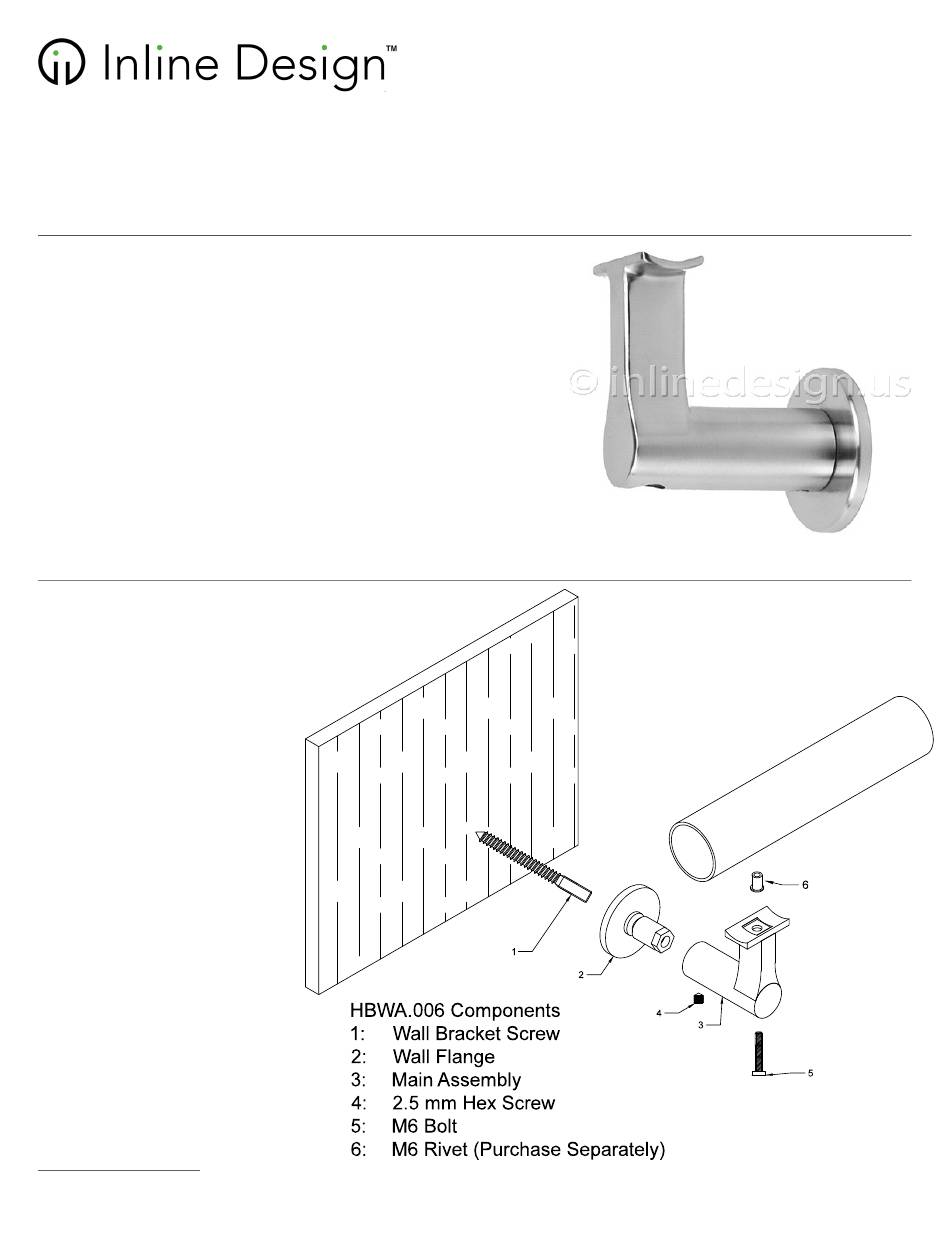

These instructions will provide step-by-step installation
guidelines for installing the Stainless Steel Handrail Wall
Bracket Round Slim, HBWA.006 into wood, drywall or
sheetrock
These brackets come with a wall bracket screw/hanger bolt to
attach to the wall, and an M6 bolt to attach to a handrail
Brackets should be installed at a maximum spacing of 4'
Caution:
Wear protective ANSI approved safety glasses,
working gloves and breathing mask at all times
Tools Required
1) Stud-finder
2) Handheld drill
3) 3/16" drill bit
4) 13mm wrench
5) 2.5mm hex wrench
6) M6x1.00 Tap
1
This document includes hyperlinks and is intended to be viewed as a PDF file rather than print material
©
InlineDesign.com
6335 1st Ave. S Unit B
Seattle, WA 98108
425 405 5505
inlinedesign.com
HBWA.006
Page
1
of
5
