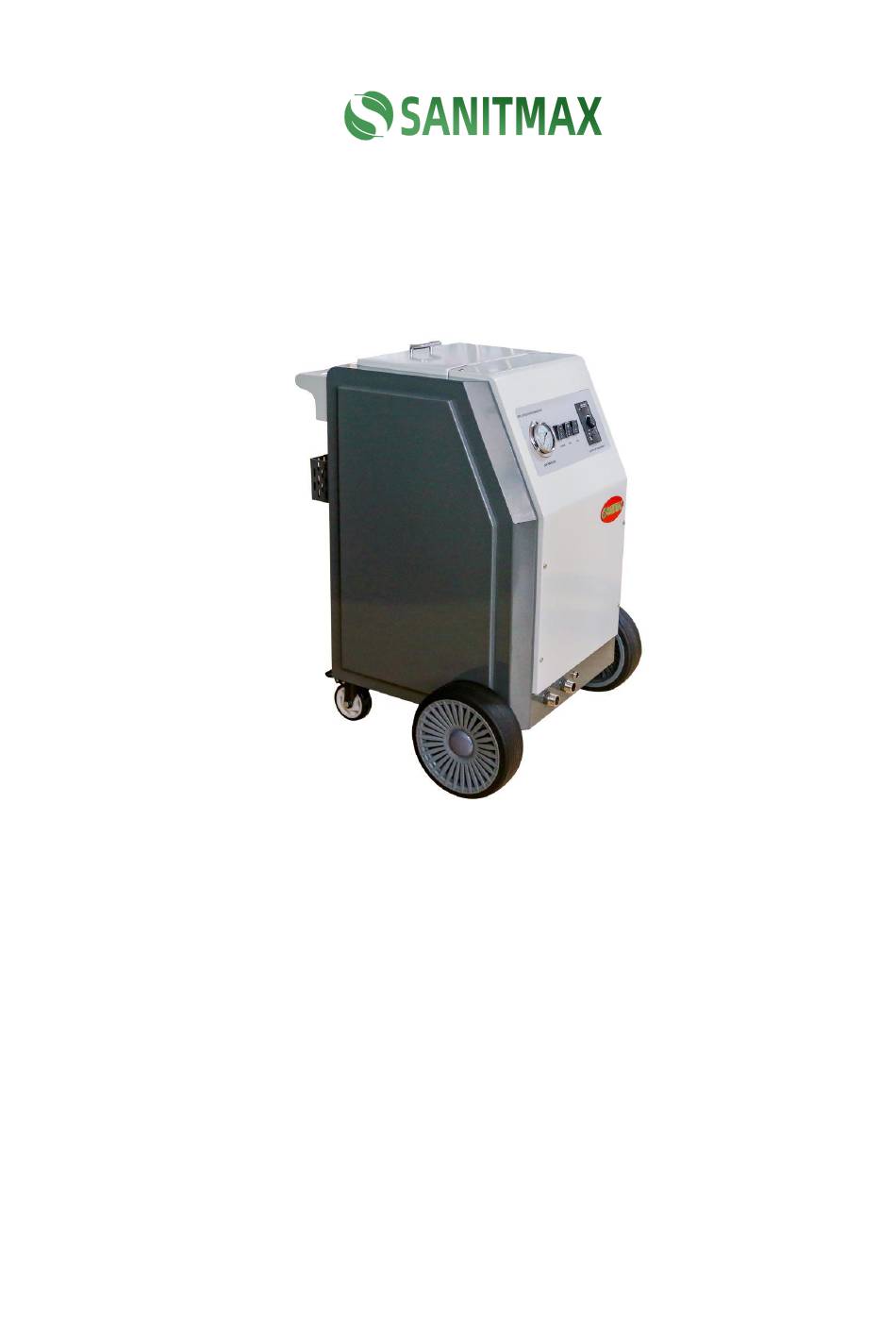

- Page 1 SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Warning: Do not use before thoroughly reading this guide.
- Page 2 Thank you for choosing Sanitmax SM2000 Dry Ice Cleaning Machine (hereinafter referred to as "SM2000"). Before using the machine, please read the user manual carefully and strictly follow the safety regulations to prevent accidents and unnecessary losses. We hope you can use the equipment safely, reasonably, and efficiently to maintain its optimal performance and extend its service life.
-
Page 3: Table Of Contents
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Contents Contents..........................2 Cautions............................. 3 Overview............................ 4 Section 1: Product Application..................... 4 Section 2: Product Features....................4 Section 3: Main Technical Specifications................4 Working Principle........................5 Unpacking and Preparation..................... 6 Unpacking..........................6 Preparation.......................... -
Page 4: Cautions
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Cautions ● Before use, verifying the machine's power supply is necessary. The power line's current carrying capacity should be more significant than 10A. The power supply must be adequately grounded and equipped with a leakage protection device and a fuse. The power connection should be performed by a professional. -
Page 5: Overview
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Overview Section 1: Product Application The SM2000 Dry Ice Cleaning Machine is suitable for cleaning carbon deposits in automobile engine combustion chambers, intake valves, throttle bodies, brake discs, wheel hubs, turbochargers, and grease and dirt on the engine compartment. -
Page 6: Working Principle
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Working Principle Dry ice cleaning technology is a relatively advanced cleaning method in the cleaning industry and has been widely used worldwide. Working Principle: Dry ice particles are accelerated by high-pressure airflow and are propelled at high speed onto the surface to be cleaned using a specially designed blasting gun. -
Page 7: Unpacking And Preparation
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Unpacking and Preparation Unpacking Remove the fastening screws and remove the machine from the wooden box. Check the accessories against the packing list to ensure everything is complete. Preparation Due to the high noise level of 75dB or above generated during machine operation, wearing protective earmuffs, goggles, and gloves in advance is necessary. -
Page 8: Power Connection
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide are in the closed position. Power Connection Open the hopper cover of the machine and slowly pour dry ice pellets into the hopper using an ice shovel (fill the dry ice pellets to about 3 cm from the top of the hopper, do not overfill... -
Page 9: Cleaning Operation
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Cleaning Operation Power On Operation 1. Hold the dry ice gun handle with one hand and close the leakage switch on the side of the machine. 2. Turn on the "Air" button and wait for stable compressed air to be released. -
Page 10: Cleaning Procedures For Different Objects
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Cleaning Procedures for Different Objects Cleaning of Combustion Chamber Carbon Deposits 1. Waits for the engine to reach operating temperature. Remove the spark plug. 2. Choose an appropriate nozzle for the dry ice gun handle and insert it directly into the combustion chamber. -
Page 11: Troubleshooting
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Troubleshooting Fault Reasons Troubleshooting Steps 1. Check if the compressed air is Open the air valve properly turned on. switch. 2. Check if the air solenoid valve is Inspect and replace if No Dry Ice Output open. -
Page 12: Maintenance And Care
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Maintenance and Care After one month of use, remove the filter from the gun handle for cleaning. Remove any debris from the filter and gently wash it with a soft brush to prevent clogging and ensure proper dry ice output. -
Page 13: Packing List
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Packing List Packing List for SM2000 Dry Ice Cleaning Machine Name Specifications Quantity Notes SM2000 Main Equipment Includes frame, ice delivery system, etc. Intake Air Hose 16 ft (5m) Low-Temperature Dry Ice Hose... -
Page 14: Packing, Transportation, And Storage
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Packing, Transportation, and Storage ● Before packing, drain any accumulated water from the machine. Cover the machine with protective covers and ensure secure fastening to the bottom of the box. -
Page 15: Exploded View Diagram
SM2000 Dry Ice Cleaning Machine User Manual and Maintenance Guide Exploded View Diagram...
