Summary of Contents for Sideshow SW077

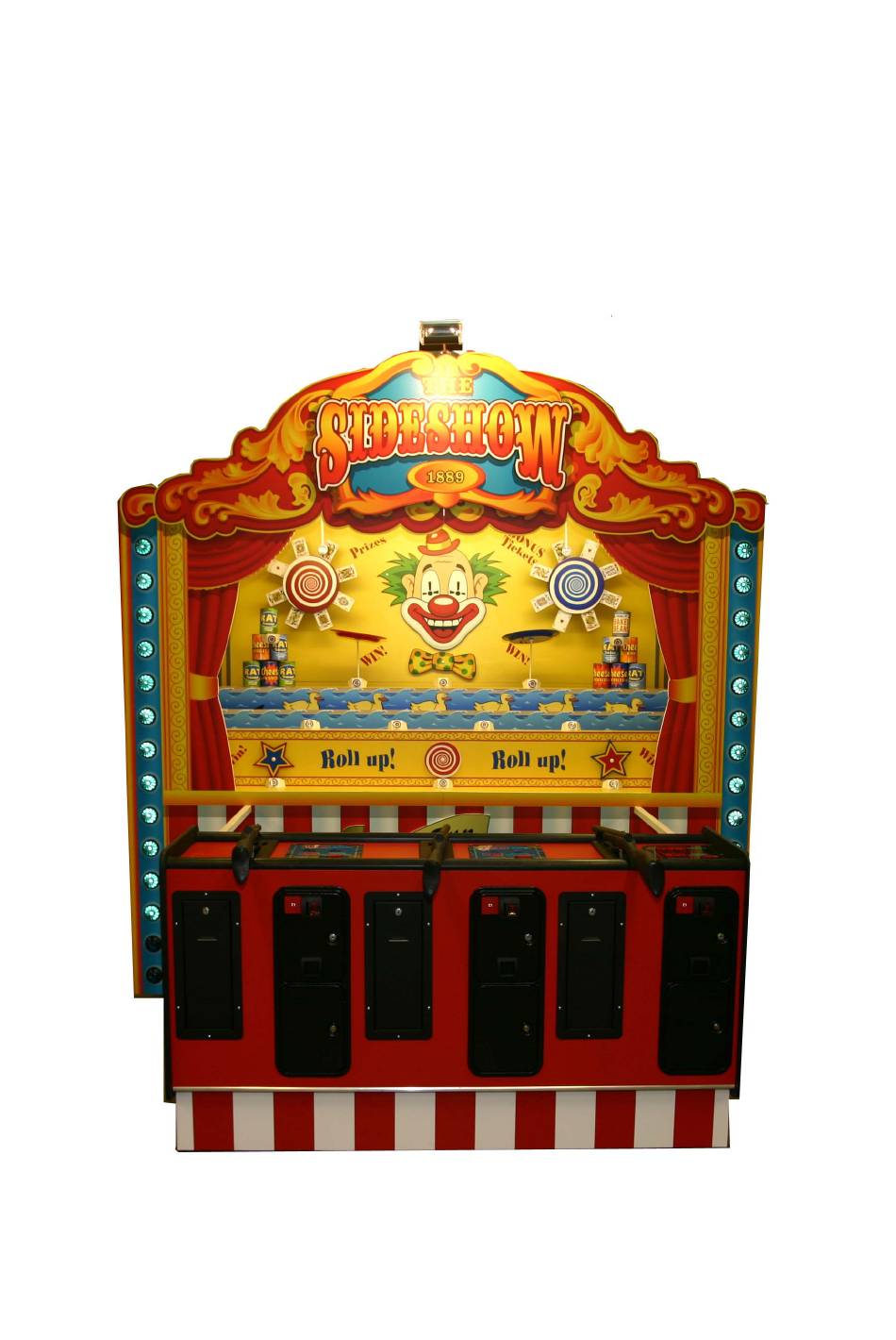

- Page 1 Sideshow installation and maintenance Before machine serial number SW077...
- Page 2 Sideshow Manual 1. Installation 1.1Unpacking 1.2Assembling 1.3Set up 2. Game operation 2.1Gun consoles 2.2Main cabinet 2.3Air systems 2.4Target descriptions 2.4.1 Ducks 2.4.2 Playing cards 2.4.3 Tin cans 2.4.4 Spinning plates 2.4.5 Clown bow tie 2.4.6 Stars and spiral 3. Access...
-
Page 3: Installation
4. Maintenance 5. Fault finding 5.1No electrical power 5.2No compressed air 5.3Unable to hit targets 6. Contacts 1.Installation .1 Unpacking Carefully remove all packaging material, and site the machine on a flat and level floor. The machine is designed for indoor use only. The back of the machine must be at least 300mm from other surfaces to allow adequate ventilation for the compressor and electric motors. - Page 4 The light fitting for the top sign is shipped on top of the console. Fit this to the the top sign, and plug in the electrical connection. The console fixing bars are shipped on top of the consoles. Pass the electrical wiring through the right bar fastening hole and then thread the wiring through one of the bars, and then through the console fastening hole.
- Page 5 Insert the black plug into the back of the console power supply, and connect the free 3 pin plug and socket together. The main power cable is on top of the gun console. Plug one end into the back of the main cabinet, and the other end into a mains power supply.
- Page 6 .3Set up The machine is delivered with the following settings:- Coin mechanism £1 per game Shots per game 20 Tickets per hit 1 NRI G-13 coin mechanism To change game prices Set top bank of dip switches on the side of the coin mechanism as follows:- 50 p per game - switches 1,3,8 up 100 p per game - switches 2,4,8 up...
- Page 7 If the coin mechanism is set for US coins or Euros switch up switch 5, or 6 3. Insert 10 tokens through the coin mechanism (the solenoid will be heard to pulse). 4. Switch number 9 switch down and then switch down the taught channel (5,6, or7) 5.
-
Page 8: Game Operation
To alter tickets per hit - turn switch C. To alter the gun shot volume – turn switch D 2. Game operation 2.1 Gun consoles When a coin is inserted, and the gun trigger is squeezed, infra red light is emitted from the gun barrel. - Page 9 2.4.1 Ducks The profile ducks are fastened to a toothed timing belt, driven by a geared motor which runs continuously when the machine is connected to a power supply. Four air jets are spaced at equal intervals in front of the ducks, and blow the ducks over when the target is hit and the air jet is in line with a duck.
- Page 10 2.4.3 Tin cans Then top tin can falls from view when the target is hit. A hit applies power to the coil of an air valve which switches air pressure from the bottom inlet of the air cylinder to the top inlet, and the cylinder rod moves down.
- Page 11 2.4.6 Stars and spirals There are two stars and one spiral. When the target is hit power is applied to an air valve, air is passed through the jet and on to the fan which spins the target. 3. Access The tubular cash door key will open all 3 cash doors.
-
Page 12: Maintenance
4. Maintenance The only item needing regular maintenance is the air compressor. North America only 110 volt supply Rest of the world 240 volt supply... - Page 13 5. Fault finding 5.1 No electrical power Check the wall socket for a supply. Check the fuse in the plug. If no power to the gun consoles, check the connections and wiring from the main cabinet to the consoles. Check the console power supply (in the consoles centre back) for a red light, and press the reset button next to the light.
- Page 14 PARE ARTS FOR IDESHOW MARK SW076 P TO SERIAL NUMBER Part Description Used on picture number A100 Air jet All air operated targets A100B Air jet adaptor All air operated targets to connect on to the air jet A114 5 port solenoid Operates tin can air valve cylinder...
- Page 15 SD085A compressor Provides compressed SD001 Bowtie Printed on 3mm foamex SD034A Playing card Falling cards attach disc to this SD035 Large blue Fastened to front spiral face of playing card disc SD035A Large red Fastened to front spiral face of playing card disc SD037 Card pivot...
- Page 16 SD048TYPE Card motor Drives the card disc SD098A King of hearts Playing card SD098B Ace of spades playing card SD098C Six of hearts playing card SD098D Queen of spades playing card SD098E Nine of diamonds playing card SD098F Eight of clubs playing card SD098G Ten of hearts...
- Page 17 SD098H Seven of spades playing card SD099 Card small Makes the playing actuator plate card fall over SD016 Duck timing Drives and supports belt travelling ducks SD017B Duck belt idler Pulley sitting furthest pulley from the duck motor SD017C Duck motor Pulley fastened to pulley, 12mm motor shaft, 8mm...
- Page 18 SD055A Cabuchon Fits behind the lens reflector SD056A Cabuchon Fits behind the lampholder lampholder and reflector SD057 Cabochon lamp SES 60 volt 5 watt SD069 Main cabinet Supplies sound speaker e ects from the main cabinet SD083A Top sign xenon Replace with xenon lamp for a brighter light...
- Page 19 SD091 Sideshow Installation and manual maintenance manual E129 Counter 12 volt Used in consoles to count games played and tickets dispensed E152 Console Gun noise only speaker E211 Game push On top of consoles to button give games for credits...
- Page 20 G416 Gun hose H101 Flat key lock H106 Radial cash lock SD003 Small spiral 3mm white foamex SD004 Star 3mm white foamex SD005 Red plate Part of spinning plate assembly SD006 Blue plate Part of spinning plate assembly SD007 Plate shaft and Connects the plate complete spinning plate to the...
- Page 21 E87QA Gun pcb Drives infra red light, and controls gun functions E87QAREP Gun pcb repair Advance replacement and exchange Charged at full price. only Credit will be given on return of faulty board if this is repairable. E87P/1 Piggy back Drives the displays board for above E87RSD...
- Page 22 E87T Score display E87G Credit display 6.Contacts Manufacturers :- Pan Amusements Austerlands Mill Huddersfield Road Oldham, UK OL4 3QB Telephone 0161 652 8092 0161 624 5578 0161 627 5357 Email info @panamusements.com Website www.panamusements.com Manufacturerʼs North American O ce:- Scott Behm Pan Amusements USA PO Box 19 2046 Main Street...
