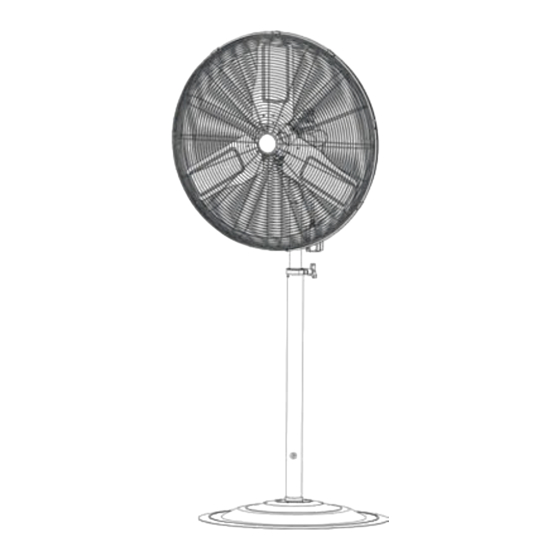

KING PFO-24 Instruction Manual And Owner's Manual

24/30 inch outdoor rated commercial air circulators

Download this manual



Rev. 3-4-2024



Time Period Mode

Rev. 2.27.18

（

）

Need help?

Do you have a question about the PFO-24 and is the answer not in the manual?

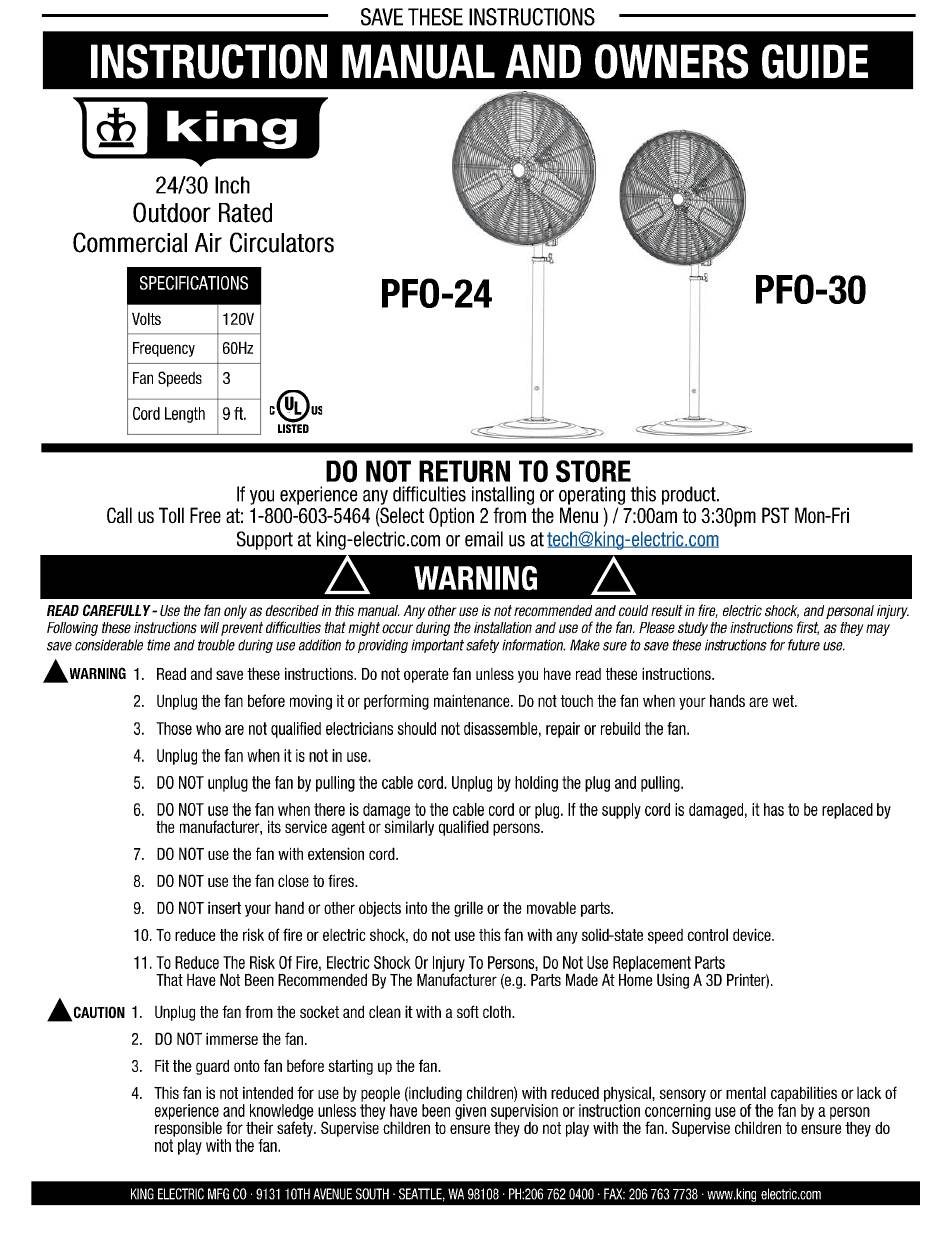

Page 1 （）       Time Period Mode Rev. 3-4-2024 Rev. 2.27.18...
Page 2 Remove the ﬁve bolts from the base. Remove the two screws from the end cap. Place the lower stand pole on the Retain for future use. base and fasten with the ﬁve bolts. （） Place the upper stand pole onto the spring and Align the two screw holes of the end cap and ...
Page 3 5. Insert the set knob and tighten. 6. Slide the motor bracket over the tapered end of the upper stand pole and fasten it by using the screws, washers and hex nut provided. This will be used to adjust the tilt angle of the fan head. （...
Page 4 Attach the front guard to the rear guard and Assemble the fan blade onto the motor shaft by secure them together using the clips on the tightening the one screw. Make sure the screws front guard. are tightly secured. （）...
Page 5 Test GFCI (Ground Fault Circuit Interrupter) plug BEFORE EACH USE. Plug GFCI into power outlet. Press RESET button (b). Indicator (a) should turn red. Press TEST button (c). Indicator (a) should turn off. （） GFCI plug is tripped. Press RESET button (b) again for use. Do NOT USE FAN IF ABOVE TEST FAILS.
Page 6 （）       Time Period Mode Rev. 2.27.18...
Page 7 NOTES: （）       Time Period Mode Rev. 2.27.18...
Page 8 （）       Time Period Mode Rev. 2.27.18...
