Summary of Contents for Manhattan Comfort Sheridan TV-3GLF

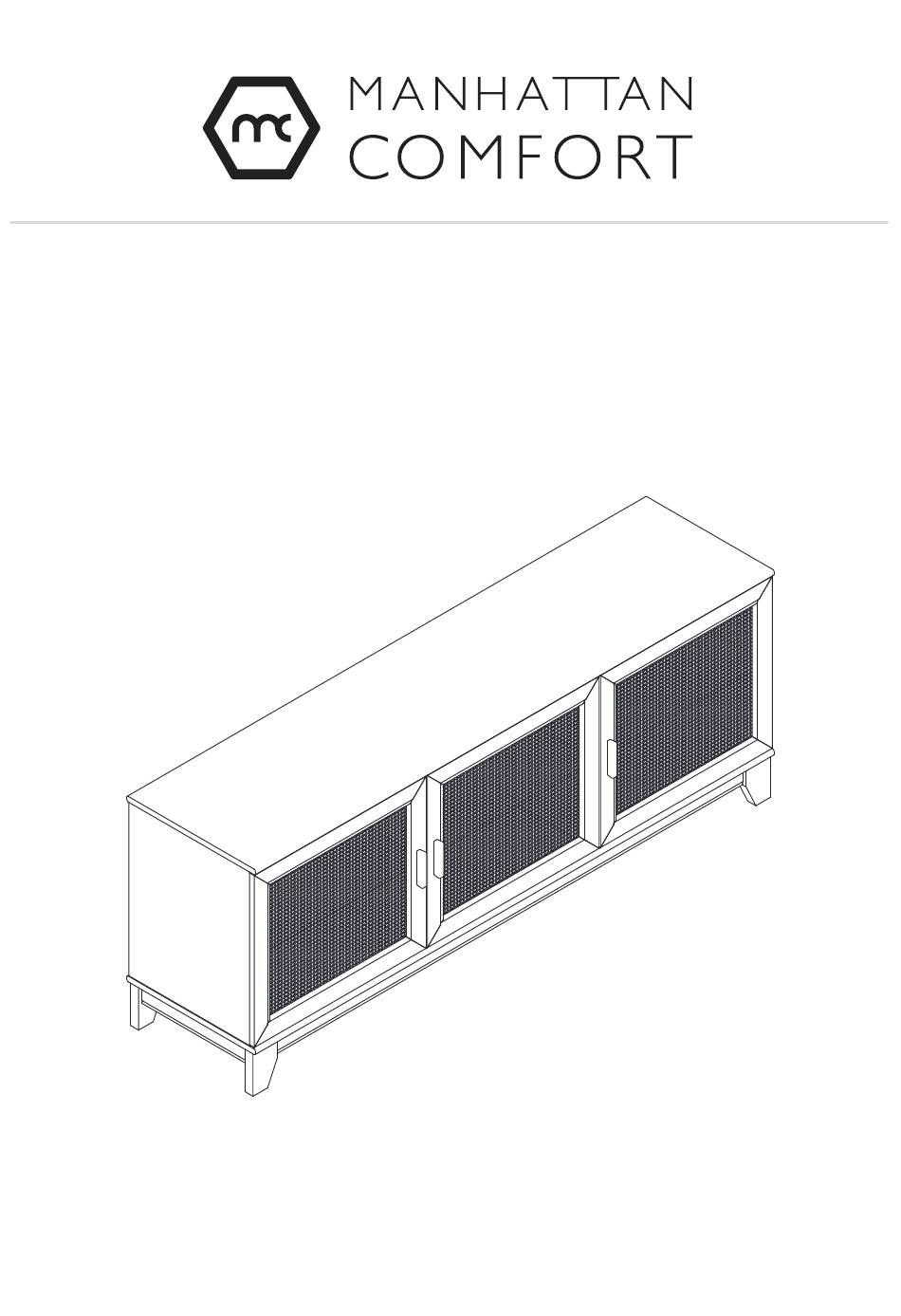

- Page 1 Sheridan TV Stand TV-3GLF V.05112023...
-
Page 2: For Best Results
STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •... -
Page 3: Right Door
Included in this package: A. TOP(1) B. BOTTOM(1) C. LEFT END(1) D. RIGHT END(1) E. LEFT UPRIGHT(1) F. RIGHT UPRIGHT(1) G. SHELF(3) H. BACK(1) K. LONG BRACE(2) L. SHORT BRACE(2) O. FOOT(2) Y. FOOT(2) P.MIDDLE FOOT(2) Q. DOOR(2) R. RIGHT DOOR(1) Page 3 TV-3GLF... - Page 4 Hardware Identifi cation Page 4 TV-3GLF...
-
Page 5: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada. - Page 6 Page 6 TV-3GLF...
- Page 7 Step 1 Assemble your unit on a carpeted floor or on the empty ◆ carton to avoid scratching your unit or the floor. Turn twenty CAM SCREWS (1) into the exact holes shown in ◆ the TOP(A) and FEET (O and Y) Page 7 TV-3GLF...
- Page 8 Step 2 ◆ Push eight HIDDEN CAMS (2) into the ENDS (C, D, E and F). Page 8 TV-3GLF...
- Page 9 Step 3 Push twelve HIDDEN CAMS (2) into the ◆ BACK(H) and SHORT BRACE(L). Page 9 TV-3GLF...
- Page 10 Step 4 Insert three WOOD DOWEL (8) into the TOP (A). ◆ Fasten the BACK (H) to the TOP (A), Tighten four HIDDEN CAMS. ◆ Page 10 TV-3GLF...
- Page 11 Step 5 ◆ Fasten the UPPER RIGHTS (E and F) to the TOP (A). Tighten four HIDDEN CAMS. Page 11 TV-3GLF...
- Page 12 Step 6 ◆ Fasten the BACK (H) to the UPRIGHTS (E and F). Use four PAN HEAD SCREWS (13). Page 12 TV-3GLF...
- Page 13 Step 7 ◆ Fasten the ENDS (D and C) to the TOP (A). Tighten four HIDDEN CAMS. Page 13 TV-3GLF...
- Page 14 Step 8 Fasten the MIDDLE FEET (P) to the BOTTOM (B). ◆ Tighten two HEX HEAD SCREWS (14) using the L-WRENCH. Insert seven WOOD DOWELS (8) into the ENDS (D and C), UPRIGHTS (E and F) and BACK (H).Fasten the BOTTOM to ◆...
- Page 15 Step 9 Fasten four METAL PLATE (4) to the FOOT (O and Y) and the LONG BRACES (K). ◆ Use sixteen PAN HEAD SCREWS (17). Page 15 TV-3GLF...
- Page 16 Step 10 Fasten twelve BRACKETS to the LONG BRACES (K) and the SHORT BRACES (L). ◆ Use twelve PAN HEAD SCREWS (17). Page 16 TV-3GLF...
- Page 17 Step 11 ◆ Fasten two SHORT BRACES (L) to the FOOT (Y and O). Tighten eight HIDDEN CAMS. Page 17 TV-3GLF...
- Page 18 Step 12 Fasten the BASE to the BOTTOM (B). Use twelve PAN HEAD SCREWS (17). ◆ ◆ Push three GROMMETS (19) into the BACK (H). Page 18 TV-3GLF...
- Page 19 Step 13 Insert the METAL PINS (5) into the hole locations of your ◆ choice in the ENDS (C and D) and UPRIGHTS (E and F). Set the ADJUSTABLE SHELVES (G) onto the METAL PINS (5). ◆ Page 19 TV-3GLF...
- Page 20 Step 14 Fasten the HINGE (12) to the DOOR (Q). Fasten the HINGES (11) to the RIGHT ◆ DOOR (R) and LEFT DOOR (Q). Use twelve FLAT HEAD SCREWS (16). Fasten the PULLS (6) to the DOORS (Q and R). Use six PAN HEAD SCREWS (15). ◆...
- Page 21 Step 15 Fasten the DOORS (R and Q) with the HINGES (11) to the ENDS (C and D). Use sixteen FLAT ◆ HEAD SCREWS (16) through the round holes in each HINGE. Peel BUMPERS from the BUMPER CARDS (10) and stick them on the edges of the SHELVES (G) ◆...
- Page 22 Step 16 Fasten the DOOR (Q) with the HINGE (12) to the UPRIGHT (F). Use eight FLAT ◆ HEAD SCREWS (16) through the round holes in each HINGE. Page 22 TV-3GLF...
- Page 23 Step 17 ◆ Peel APPLIQUES from the APPLIQUE CARDS (3) and stick them onto each visible HIDDEN CAM Page 23 TV-3GLF...
