Step Kit
for Zero-Turn-Radius Riding Mowers
Model No. 117-5316
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Step
Self tapping screw, (5/16 x 3/4 inch)
Installing the Step

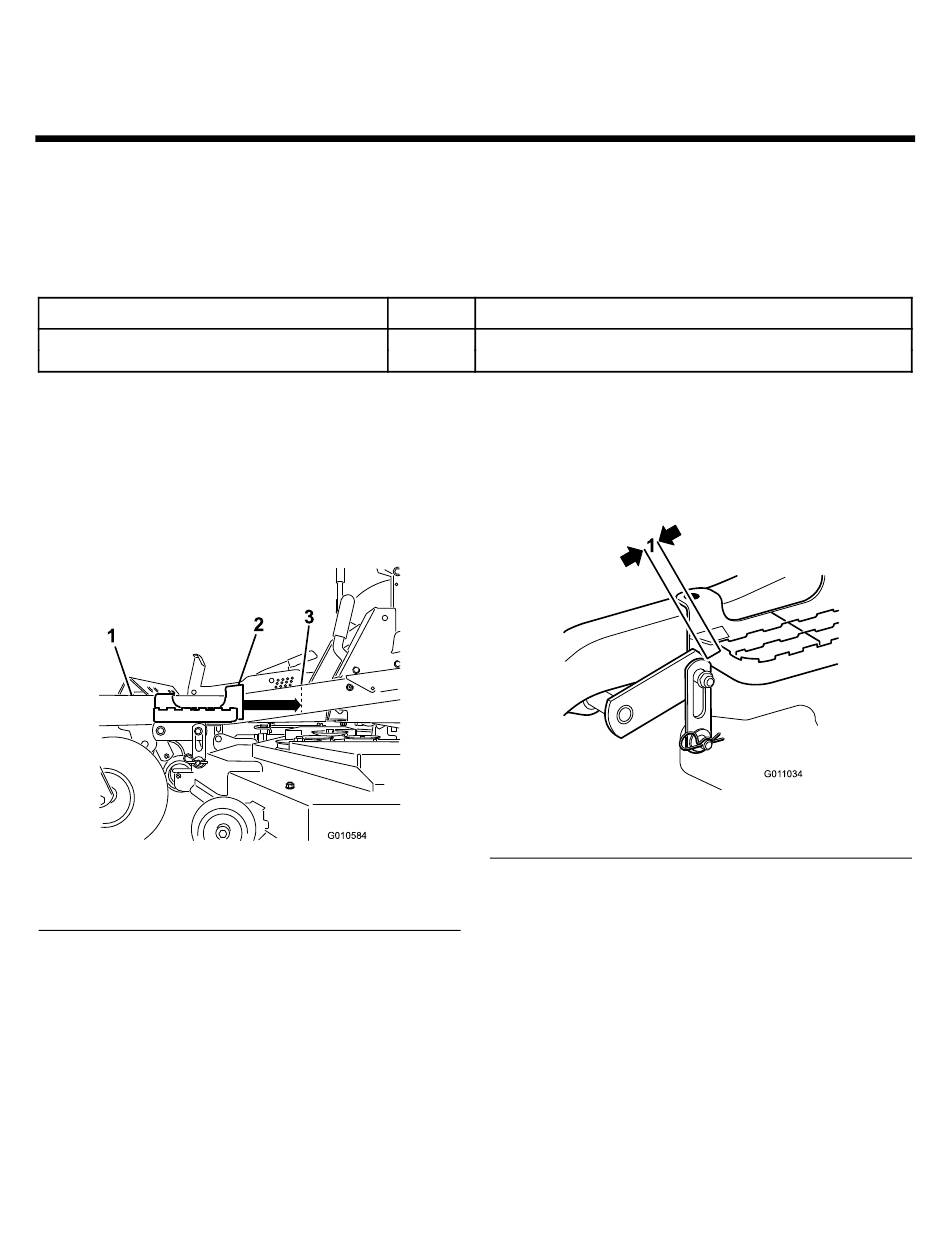

1. Drill holes in the frame (Figure 1).
A. Locate the step kit and place it on the left frame
rail as shown in Figure 1.
Make sure the step is flush against the top and
left side of the frame rail.
1
Figure 1
1. Frame rail top surface
2. Step, moving into position
Printed in the USA.
Qty.
1
2
3
2
G010584
3. Step Flush, mark here
Original Instructions (EN)
Install the step.
B. Slide the step gently rearward until it is flush with
the frame surface at the mounting holes. The
front edge of the step should allow for about
3/4-1 inch of clearance for the HOC assembly
when set to the transport position.
1
1. 3/4-1 inch clearance
C. Mark the drill points with a center punch.
D. Drill through only the top wall of the tubular
frame at the location using a 9/32 drill bit.
Form No. 3362-209 Rev B
Installation Instructions
Use
G011034
Figure 2
