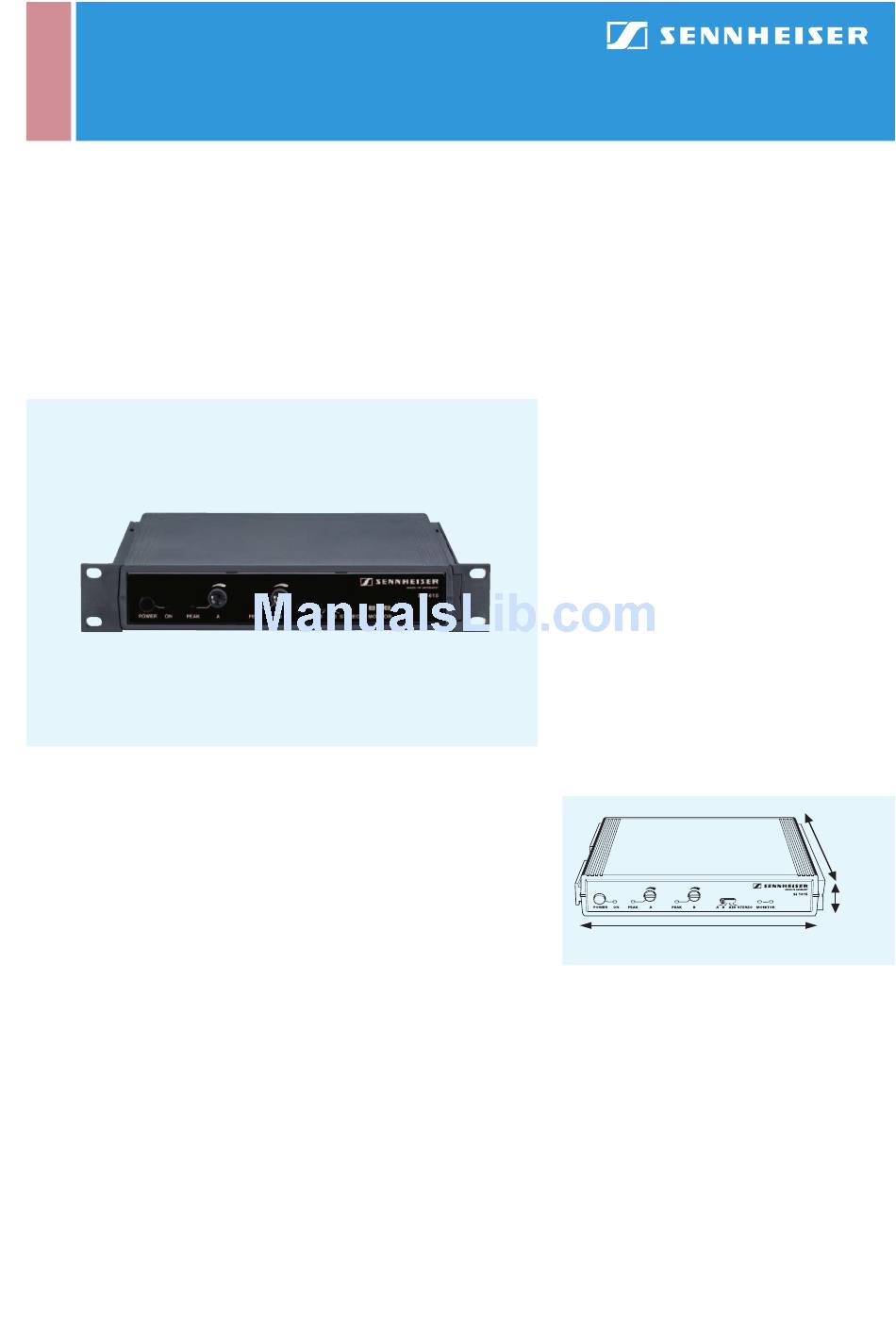

Sennheiser SI 1015 Product Sheet

SI 1015
IR Audio Transmission Technology |
General Description
The SI 1015 wideband modulator uses the extremely reliable carrier frequencies 2.3
and 2.8 MHz and can be operated in single-channel, two-channel and stereo modes.
The modulator is fitted with two balanced XLR-3 audio inputs and IR monitoring
diodes. It can be used with SZI 1015 and SZI 1029 radiators, the signals for the
ra diators are available at two RF sockets, or, alternatively, at a barrier strip. (N.B.:
The barrier strip – which also powers the connected radiators – can only be used
with SZI 1015 and SZI 1029-24 radiators.)
Features
Modulator for the carrier frequencies 2.3 and 2.8 MHz
Single-channel, two-channel or stereo operation, features
monitoring diodes and a separate barrier strip with RF and DC outputs for
connecting radiators
Delivery includes: SI 1015 modulator, two rack-mount ears
Recommended Accessories
Mains unit
NT 1015-EU European version
NT 1015-120 USA version
BNC-BNC co-axial cable
GZA 1019 A 1 (1 m)
GZA 1019 A 5 (5 m)
GZA 1019 A 10 (10 m)
GZV 1019 A BNC coupler
GA 1031 CC Blank module
Modulators/Radiators
Technical Data
Modulation ....................................................... wideband FM
Nominal/peak deviation........................±40 kHz/±56 kHz
Carrier frequencies .................................... 2.3 and 2.8 MHz
AF frequency response...............................50 – 15,000 Hz
Audio inputs......................................... 2 x XLR-3, balanced
Input impedance .......................................................... 600 Ω
Input sensitivity.....................................50 mV – 5 V (line),
RF outputs.............2 x BNC socket, in parallel with barrier
Operating voltage............................................. 24 – 30 V DC
Current consumption ............................................ < 140 mA
Dimensions ..................1/2 19", 1 U (224 x 44 x 173 mm,
Weight .............................................................. approx. 800 g
Dimensions of the SI 1015
Cat. No. 004560
Cat. No. 004561
Cat. No. 002324
Cat. No. 002325
Cat. No. 002326
Cat. No. 002368
Cat. No. 004253
Cat. No. 004252
optional: 1 mV – 100 mV (condenser
microphone, 12 V phantom powering)
0.4 mV – 40 mV (dynamic microphone)
strip, terminating impedance 50 Ω
without rack-mount ears)
173 mm
224 mm
44 mm
