- Page 1 RATMON sp. z o.o. SMARTBOX-1 User Manual ver.1.00...

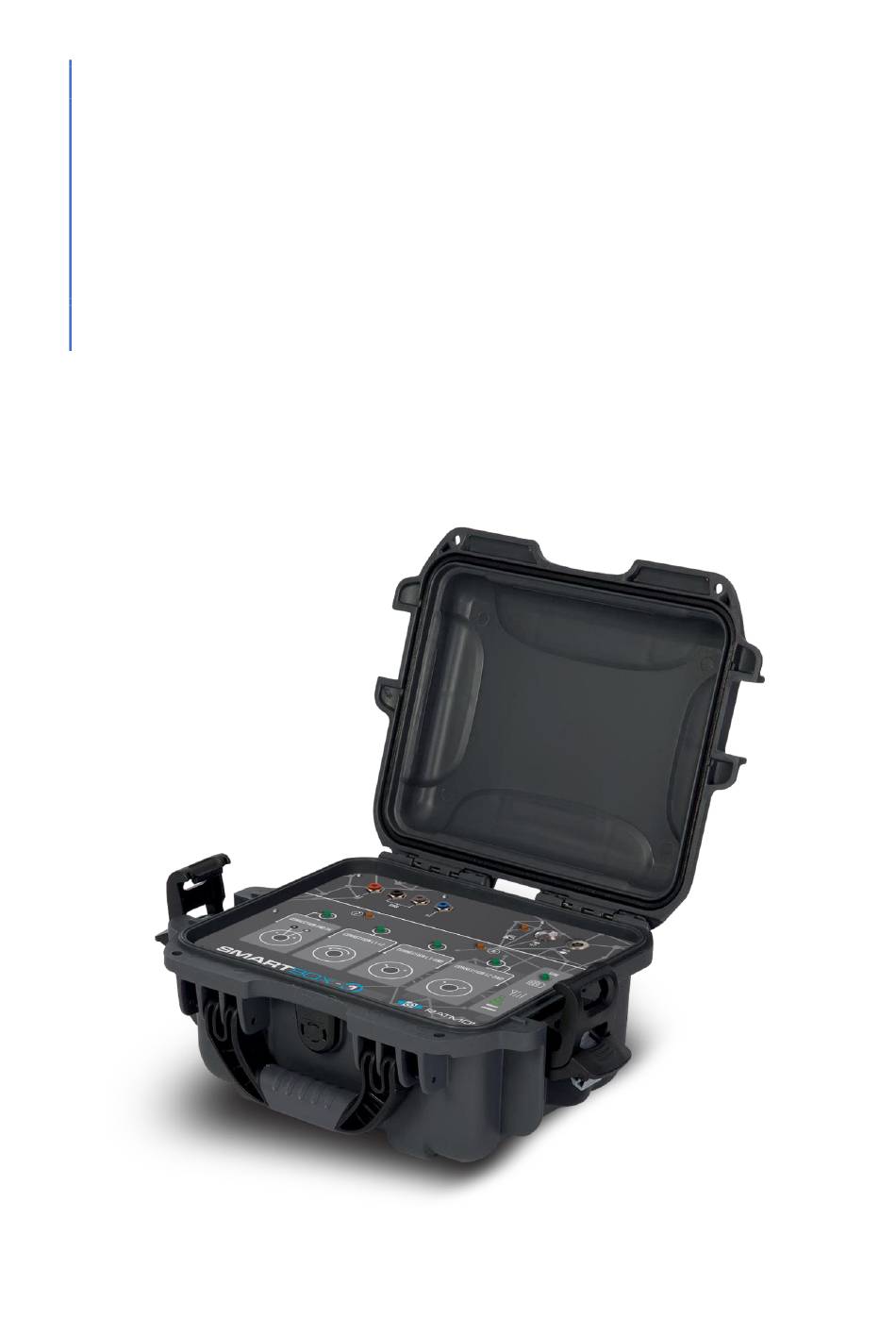

- Page 2 Introduction The SMARTBOX-1 device enables remote simulation of alarm network states to assist in fault localization. Basic functionalities of the device: 1. remote control of alarm network connections 2. configuration of simulation sequences 3 Battery power supply 4. case prepared to handle harsh conditions The kit after unpacking contains: 1.
-
Page 3: Panel Description
Panel description: 1. sockets for connecting measurement probes 2. USB socket for device configuration 3. GSM modem 4. battery charge LED indicator 5. power charging socket PWR power button 7 Device status LED indicators 2 z 9... -
Page 4: Power Supply And Battery Charging
Power supply and battery charging The device is designed to operate on network power and battery power. Before working on battery power, charge the battery using the original charger. To do this, connect the power supply to the socket (5) and the electrical network. The rechargeable battery allows for 10-12 hours of operation of the device. - Page 5 SIM card installation The device works with SIM cards supporting 2G, 3G, 4G bands. 1. Before installing the SIM card, turn off the SMARTBOX-1 with the PWR button (6). 2. Unscrew the front panel of the modem using the included allen wrench.
- Page 6 The measurement sequence of AUTO mode can be pre-configured according to the following description using the RATManager2 application. The program is available on the manufacturer's website www.ratmon.com. 5 z 9...
- Page 7 - Blue - connection driven on pipe 1 (CH1) - White - connection driven on pipe 2 (CH2) Diode 6 - SMARTBOX-1's L1 connection to the pipe (shorted L1 to the pipe) is driven. - Blue - connection controlled on pipe 1 (CH1)
- Page 8 Diode 7 - SMARTBOX-1 controlled connection L2 to pipe (shorted L2 to pipe) - Blue - connection controlled on pipe 1 (CH1) - White - connection controlled on pipe 2 (CH2) Diode 5 - SMARTBOX-1 controlled connection opening (open L1, L2 and pipe)
- Page 9 Control using the application 1.Click on the “plus” at the bottom of page 2.Fill the data below. - device name - serial number - password 8 z 9...
