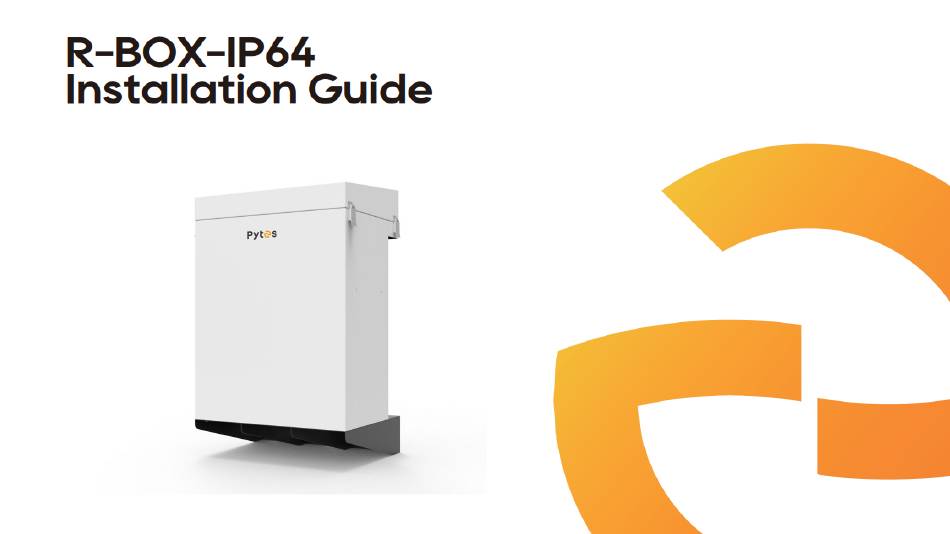

Summary of Contents for Pytes R-BOX-IP64
- Page 2 STEP 1 Assemble the base components ① Fix the base onto the wall with 6 expansion bolts ② Connect main cabinet to the baseand fastern with 6 screws Connect the support base to the mounting plate with 8 screws. Fix the base components on the wall with 10 expansion bolts. (If placed the R-BOX on the ground, there is no need to install the support base) mounting plate...
- Page 3 STEP 2 Assemble the Ba�eries Assemble the main body ③ Fix the bracket on the wall with 5 expansion bolts. Assembling Ba�eries into Cabinet Insert the main body into the base components, and fix both System Cabling ④ sides with 4 screws. bracket Put the batteries on the base components.
- Page 4 STEP 3 Assemble the cover Insert the cover into the main body. Finish. Assemble the upper cover ⑥ ⑤ Finish and fix to cabinet with clips cover...
