Tivoli Audio TivoTape Outdoor FUSE RGB+W Installation Instructions

RGB+W
TivoTape™ Outdoor Installation Instructions

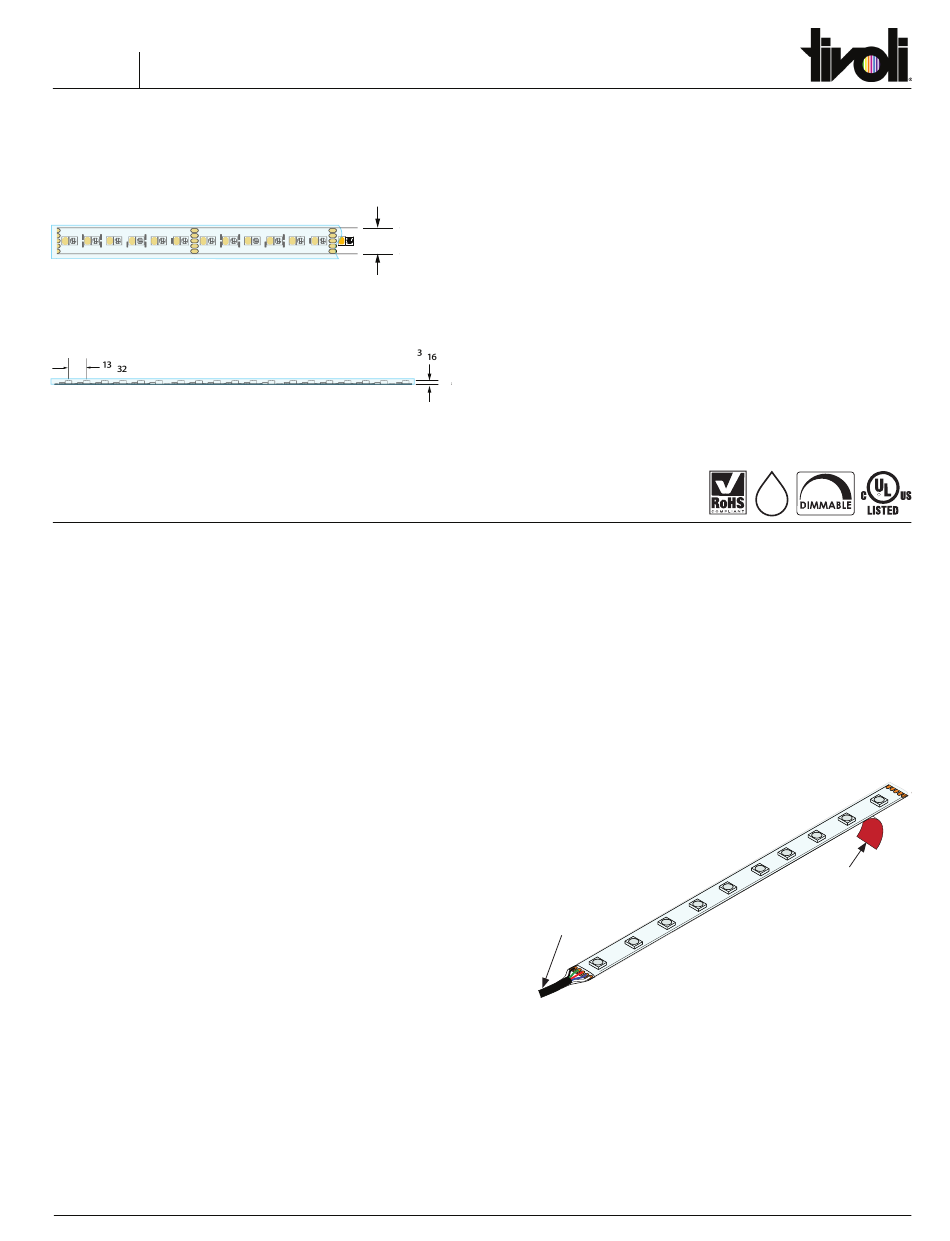

Profile Dimensions
LED Tape in Waterproof Silicone Jacket
/ "
2
/ "
LEDs On Center Spacing
/ "
Installation Instructions
CAUTION - Risk of Damage. Handle carefully.
1. Do not twist, bend, fold or crease Tivotape™.
2. Do not bend or crease lead wire at solder point.
3. Do not attempt to remove Tivotape™ once it has been installed.
Attempting to pull Tivotape™ away from mounting surface after it
has been adhered will cause damage to the product.
4. Do not use chemical solvents on Tivotape™ during routine
maintenance.
Failure to comply will damage the product and void the
warranty.
Option 1: Direct to Surface
Note: Use in clean, smooth, surface applications. Attaching to textured
surfaces without the use of a mounting channel is not recommended.
Step 1: Identify Tivotape™ from supplied lengths to fit the area
as marked.
Note: Outdoor Tivotape™ is shipped manufactured to specific lengths
with factory attached end preps. It is not designed to be trimmed in
the field.
Step 2: Make sure surface where Tivotape™ is to be installed is
smooth, clean, free of dirt, oil and debris.
Note: For backing tape to remain permanently attached, mounting
surface must be clean and free of oil and debris.
Copyright © 2020 Tivoli 06.24.20
/
19
32
/ "
/ "
2
Please verify the contents of the packages!
Please read instructions entirely before starting installation
Be sure power is turned off before installing or modifying
the system
Call Tivoli, LLC tech support with questions
Caution: Tivotape™ LED is designed to work with listed Class 2,
24V DC transformers only. Use of any other power source will
"
cause damage, shorten the life of the fixture and will void the
warranty.
Consult any and all applicable local and national codes for
/ "
19
32 installation.
Do not conceal or extend exposed conductors through a building
wall as per local electrical code.
/ "
Warning: With any luminaire for any application, basic safety
precautions should always be followed to reduce the risk of fire,
electric shock and personal injuries. This lighting system should be
installed by a certified professional.
Caution: Do not attempt to remove Tivotape™ once it has been
adhered to surface. Stick down once to avoid damage to the
product. If there is a misapplication, remove the Tivotape™, clean
off all adhesive from the mounting suface and start over with a new
strip of Tivotape™ on a clean surface.
Step 3: Peel off PET tape backing and apply Tivotape™ to clean,
smooth surface area.
Step 4: Press firmly with hand along the entire length of Tivotape™
to ensure a strong bond to the mounting surface.
22ga Wire in a Black Jacket
(see Specification Sheet
for End Prep options)
Caution: Do not bend, twist or crimp the lead wire at the solder
connection point. This will damage the product and void the
warranty.
Step 5: Make necessary electrical connections. (See Page 4)
Page 1 of 5
IP67
PET Tape Backing
www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458
