CMOS Camera

DDU Series

DDU2607MG

DDU2607MCG/DDU2607MCF

Specifications

Information contained in this document is subject to change without prior notice.

Standard name might be trade mark of each company.

DAA04612C

https://www.toshiba-teli.co.jp/en/

Table of Contents

Need help?

Do you have a question about the DDU Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Toshiba teli DDU Series

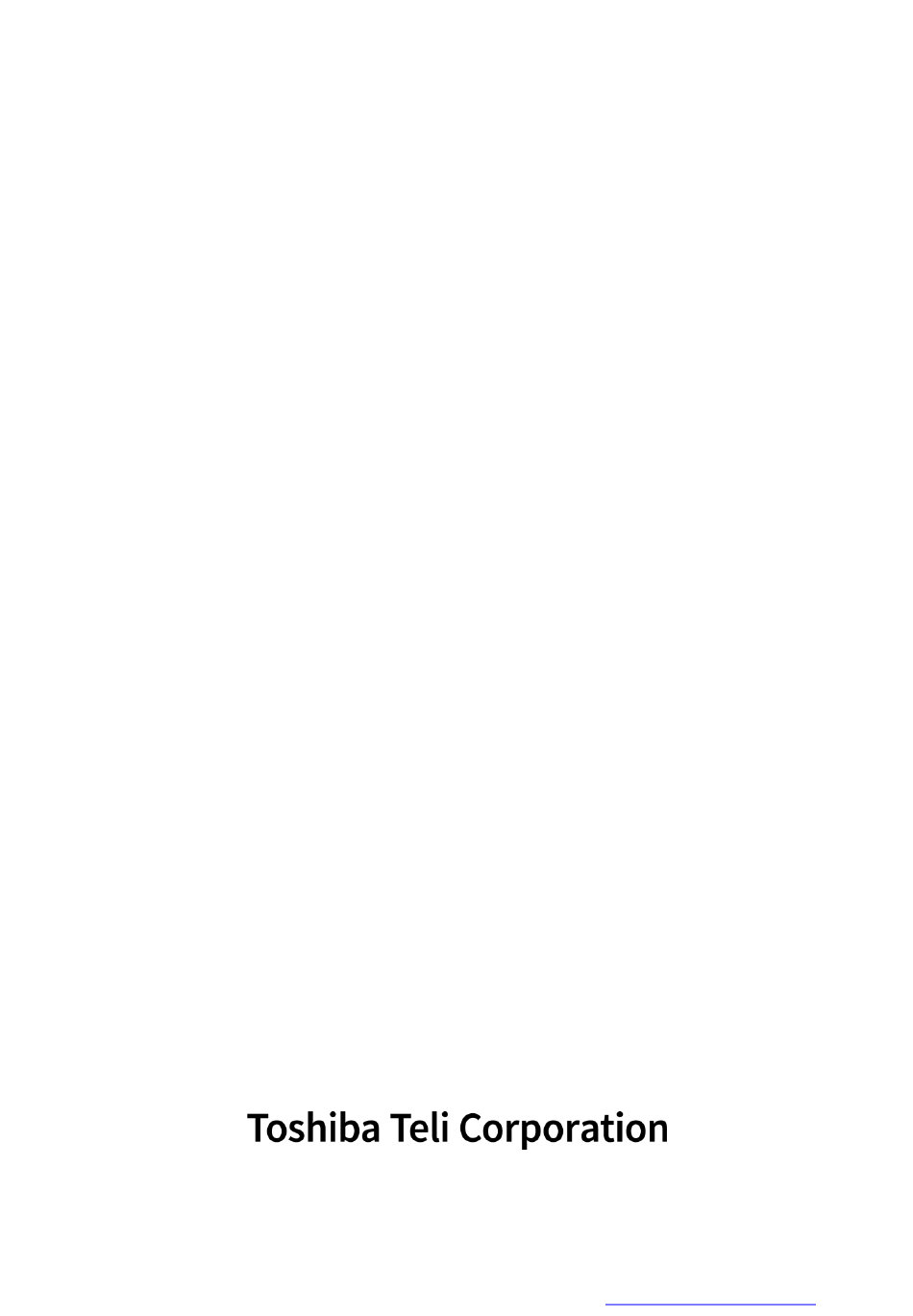

Page 1 CMOS Camera DDU Series DDU2607MG DDU2607MCG/DDU2607MCF Specifications Information contained in this document is subject to change without prior notice. Standard name might be trade mark of each company. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 2: Table Of Contents
Features .............................. 6 Configuration ............................8 Optional part ............................8 Functions ............................. 9 Specifications ............................ 18 Timing chart............................35 Warranty rules ........................... 38 Repair ..............................39 10. Outline Drawing ..........................40 DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 3: Restriction For Use
(*2): Equipment relating to maintenance of public services/functions involving factors of safety refers - Traffic control systems for air transportation, railways, roads, or marine transportation - Equipment for nuclear power generation - Equipment related to the above DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 4: Cases For Indemnity (Limited Warranty)
⚫ Expenses we bear on this product shall be limited to the individual price of the product. ⚫ The item that is not described in specifications of this product is off the subject of the guarantee. ⚫ The attachment mistake of a cable. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 5: Usage Precautions
If an intense magnetic or electromagnetic field is generated near the camera or connection cable, noise may be generated on the screen. If this occurs, move the camera or the cable. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 6 The brightness of the upper part of the screen may be different from that of the lower part. Note that this is a characteristic of a CMOS image sensor and is not a fault. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 7: Overview
IIDC2 Digital Camera Control Specification Ver.1.1.0 This product is based on IIDC2 Digital Camera Control Specification Ver.1.1.0. e-CON Connector adoption The e-CON connector adoption enables to assemble the cable easily without using special tools. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 8 This camera is compact and lightweight; it is easy to integrate into industrial equipment. IR –cut filter 2.14 Build-in IR-cut filter models are optional for color models. Suffix [F] is attached to the model name of built-in IR-cut filter model. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 9: Configuration
* No application software and manuals are attached to this camera. Optional part - Camera mounting kit Model name: CPTC6M * Contact your dealer / distributor for details of option units. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 10: Functions
White Balance (OPWB). Select the mode to suit the subject and purpose 5.6.1 MWB R/B gain can be set independently. 5.6.2 OPWB When OPWB is executed, the camera adjusts R/B gain automatically. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 11 Sharpness It is possible to adjust the edge enhancement of the image. Chunk It is possible to integrate some sort of information about each image with video data. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 12 - When the interval of the input trigger signal is extremely short, or when the trigger signal is noisy, there is a possibility of causing the malfunction. In this case, please input a proper trigger signal. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 13 Note on Sequential Shutter: - In Sequential Shutter mode, window size is unchangeable. 5.11 Trigger Delay You can add the delay between trigger signal input and the start of exposure. TriggerDelay Image DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 14 Delay High Valid Valid Valid Valid Edge Edge Edge Edge AntiGlitch Circuit Output Invalid Edge AntiChattering Insensible Insensible Value Time Time High AntiChattering Circuit Valid Valid Signal Signal Output DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 15 : End of transferring streaming data. (6) ExposureStart : Start of Exposure. (7) ExposureEnd : End of Exposure. (8) Timer0Start : Start of Timer0. (9) Timer0End : End of Timer0. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 16 : Indicating waiting a Random Trigger Shutter. An External trigger is input during this period, exposure starts immediately. EXT_TRIG Exposure Sensor Output USB Streaming Delay Duration Timer0Active ExposureActive FrameActive FrameTransfer FrameTrigger Wait * ActiveLow DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 17 In the scalable mode, camera reads out only necessary area at the normal speed and reads out other area at high speed. The trigger interval can be shorter when the vertical height size is small. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 18 ) (@ 8-bit) Grey B : Full screen 85 LSB (01010101 ) (@ 8-bit) Horizontal ramp waveform Vertical ramp waveform Grey scale (B/W models only) Color Bar (Color models only) DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 19: Specifications
Horizontal ramp waveform, Vertical ramp waveform, Grey scale (factory setting: OFF) Power supply DC +5V5% (from USB connector) Power consumption (*1) 5.6 W (maximum) (*1) at the all pixel readout and Dual mode DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 20 (factory setting : OFF) Power consumption(*1) 5.6 W (maximum) Horizontal ramp waveform, Vertical ramp waveform, Color bars (factory setting : OFF) (*1) at the all pixel readout and Dual mode DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 21 Input circuit Input level Low: 0 to 0.5V, High: 2.0 to 24.0V Polarity High active / Low active (factory setting: Low active) 50μs (minimum) Pulse width Input impedance High impedance DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 22 External trigger input recommended circuit: 1) Isolated I/F CAMERA Inside Your system DC3.3V Photocoupler Camera Your Your Secondary GND 2) Non-isolated I/F CAMERA Inside Your system DC3.3V Camera Your Your FRAME GND DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 23 Input level Low: 0 to 0.5V, High: 3.3 to 24.0V Input current 5 to 15mA Polarity High active / Low active (factory setting: Low active) 200μs (minimum) Pulse width DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 24 * Even if LineMode is set as Output, the input signal to Line2 is valid when LineSource is set as Off. Note on Input Level: - Line0,3,4 and Line2 have a different input level. Please use input level within the voltage described in this specification. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 25 High active / Low active (factory setting: Low active) Timer0 Active 0 to 2000000μs (factory setting: 0μs) Delay 0 to 2000000μs (factory setting: 0μs) Duration TimerTriggerSource Line0Active, ExposureStart, FrameTrigger DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 26 Secondary GND *Camera GND (e-CON connector Pin 3) and I/O_GND (Round connector Pin 5) are mutually isolated. It is also possible to connect them to common GND of your system. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 27 Flash orange (ON: 200ms, OFF: 800ms) Data being transferred Fast flash green (ON:60ms, OFF:20ms) Error during data transfer Solid Red (Time period: 500ms) Stand-by Super slow flash orange (ON:200ms, OFF: 2800ms) DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 28 - Depends on your PC or USB interface card configurations, images may not be captured normally (e.g. dropping frames may occur). In this case, change to frame rate setting lower. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 29 40 mm(W) * 40 mm (H) * 35 mm (D) (Not including protrusion) Mass Lens mount C-mount Flange back 17.526mm Camera body grounding Conductive between circuit GND and camera body insulation status DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 30 - Telephone number: +81-42-589-8771 - URL: https://www.toshiba-teli.co.jp/en/ ● Changes or Modifications Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 31 Round connector TRIG IN(Line4) TRIG IN(Line4) TRIG IN(Line3) TRIG IN(Line3) GPIO(Line5) GPIO(Line5) GPIO(Line6) GPIO(Line6) I/O GND *Please confirm the EMC adaptability when it combines with parts other than them. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 32 Pin assignment ↑TOP * Above figure is connector view from insert side. Pin No. Signal Name Function Line2 GPIO Input / Output Line1 GPIO Output Ground Line0 GPIO Input DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 33 Pin assignment Camera side Cable side ↑TOP Pin No. Signal Name Function Line4 GPIO Input Line3 GPIO Input Line5 GPIO Output Line6 GPIO Output I/O GND GPIO Ground Not Connected DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 34 6.15 Typical spectral response The lens characteristics and light source characteristics is not reflected in table. <DDU2607MG> DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 36: Timing Chart
(Number of USB cables) [ms] [ms] Mono8 35.1 35.1 Bayer8 Dual mode Mono10/12 35.1 64.2 Bayer10/12 DDU2607 1/(Frame Rate setting) MG/MCG/MCF Mono8 35.1 64.2 Bayer8 Single mode Mono10/12 35.1 128.3 Bayer10/12 DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 37 - When the interval of the input trigger signal is extremely short, or when the trigger signal is noisy, there is a possibility of causing the malfunction. In this case, please input a proper trigger signal. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 38 : Rising delay time of Line5, 6 Toff [μs] Ton [μs] Pull-up amplitude * Measured pulled up with 10k ohm register. * Toff and Ton are typical value. These values are changed in operating environment. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 39: Warranty Rules
Forgery product, products which does not have proper serial number, products of which serial number is forged, damaged or deleted. 10. All defects that happened after the expiration for a warranty term DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
Page 40: Repair
10. The immunity from responsibility of the product is applied in the repair completion products. * Please refer for the inquiry about the software to our homepage or sales personnel. DAA04612C Copyright © 2024 Toshiba Teli Corporation, All Rights Reserved. https://www.toshiba-teli.co.jp/en/...
