Midilift SL
513354 - Fitting instructions Ryobi D-2550BC
Fitting instructions - Ryobi D-2550BC door closer
Introduction
This document describes procedure for fitting of Ryobi closer D-2550BC (Stannah part
number 513352) as part of a new lift installation. Required steps for fitting to steel frame door
& wooden fire door are described as Section A & Section B following, respectively.
Note: Do not make any alterations to door closer
adjustment screws until directed in the instructions
below; this is important to ensure that the correct
closing & opening forces are achieved without the
need to make measurements.
This document is provided as constituent of kit boxes 6102507 & 6102509.

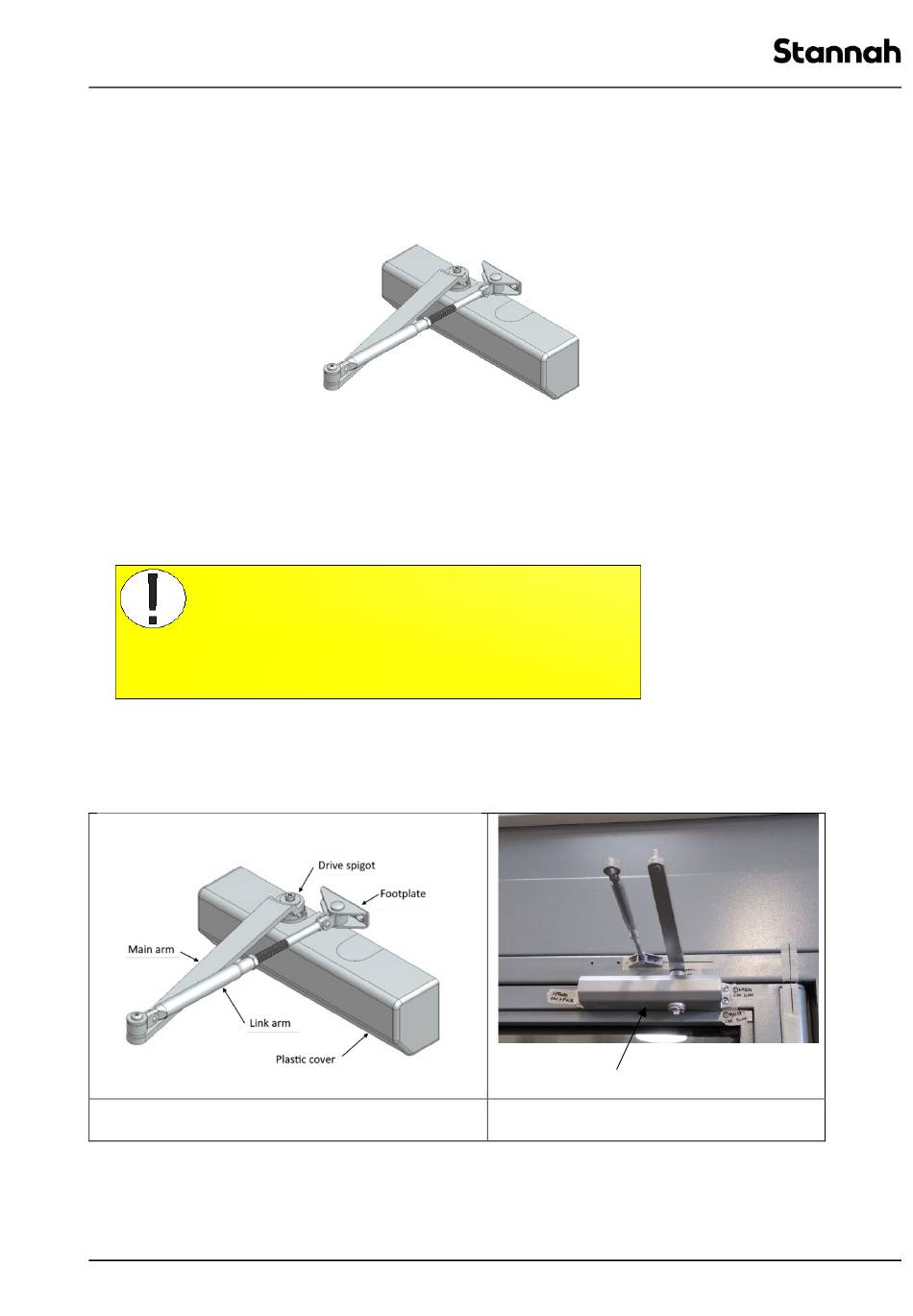

Images 1 & 2 show closer & nomenclature of parts referred to in following sections.
1: Ryobi door closer D-2550BC parts
nomenclature
Rev 0
Closer body
2: Closer (without Plastic cover) fitted to
steel frame door, left hand slam
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ryobi D-2550BC
Summary of Contents for Ryobi D-2550BC
- Page 1 Fitting instructions - Ryobi D-2550BC door closer Introduction This document describes procedure for fitting of Ryobi closer D-2550BC (Stannah part number 513352) as part of a new lift installation. Required steps for fitting to steel frame door & wooden fire door are described as Section A & Section B following, respectively.
-
Page 2: Section A: Retro Fit Of Ryobi D-2550Bc To Steel Frame Door
Midilift SL 513354 - Fitting instructions Ryobi D-2550BC Section A: Retro fit of Ryobi D-2550BC to steel frame door Steps to fit the new closer are described in generic terms in the instruction leaflet provided with the closer unit. However, all details are not explicit, so a full description of the process to be followed is described following. - Page 3 Midilift SL 513354 - Fitting instructions Ryobi D-2550BC 3: Footplate orientation 4: “Power” adjustment screw 5: speed adjustment screws 6: Back check adjustment screw 4. Check for satisfactory operation: door should close smoothly & reliably. If for any reason door operation is not satisfactory then as a last resort, minor adjustment of speed setting screws (Image 5) may be attempted.
-
Page 4: Section B: Retro Fit Of Ryobi D-2550Bc To Wooden Fire Door
Midilift SL 513354 - Fitting instructions Ryobi D-2550BC Section B: Retro fit of Ryobi D-2550BC to wooden fire door Steps to fit the new closer are described in generic terms in the instruction leaflet provided with the closer unit. However, all details are not explicit, so a full description of the process to be followed is described following. - Page 5 Midilift SL 513354 - Fitting instructions Ryobi D-2550BC 4. Check for satisfactory operation: door should close smoothly & reliably. If for any reason door operation is not satisfactory then as a last resort, minor adjustment of speed setting screws (Image 5) may be attempted. Under no circumstance shall any further adjustment be made to the power setting.
