Brooklyn BAF5L3LDW Instruction Manual

8l dual digital air fryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
8L DUAL DIGITAL AIR FRYER
BAF5L3LDW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAF5L3LDW and is the answer not in the manual?

Questions and answers

Related Manuals for Brooklyn BAF5L3LDW

Summary of Contents for Brooklyn BAF5L3LDW

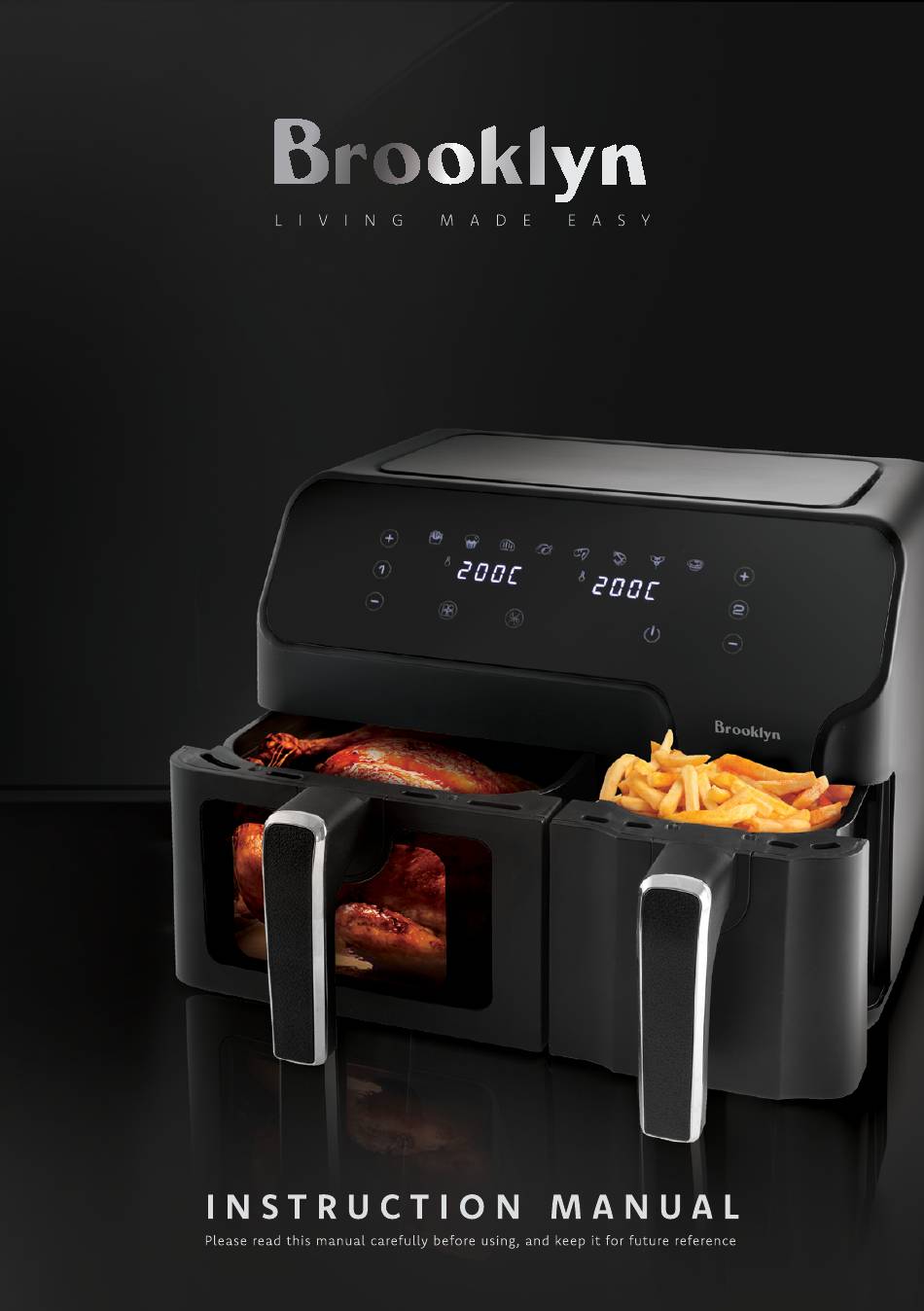

  • Page 1 8L DUAL DIGITAL AIR FRYER BAF5L3LDW...

  • Page 3: Table Of Contents

    CONTENTS GENERAL SAFETY PRODUCT OVERVIEW IMPORTANT BEFORE THE FIRST USE CONTROL PANEL INSTRUCTIONS OPERATION INSTRUCTIONS SETTINGS CLEANING AND MAINTENANCE TROUBLESHOOTING STORAGE ELECTRICAL SCHEMATIC DIAGRAM SPECIFICATIONS SUPPORT LAST PAGE...

  • Page 4: General Safety

    GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Air Fryer. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings.
  • Page 5 GENERAL SAFETY (Cont.) • When handling Air fryer, make sure to use handle to remove basket after using the air fryer. Other surfaces may be hot. • The outside of the air fryer is hot during and after use. • Always use heat-resistant gloves, pads, or oven mitts when handling hot materials, and when placing items in or removing items from the air fryer, including trays, racks, accessories, or containers.
  • Page 6 GENERAL SAFETY (Cont.) WHILE COOKING • Do not place oversized foods or metal utensils (except for Brooklyn accessories) into your air fryer. • Do not place paper, cardboard, or nonheat-resistant plastic into your air fryer, or any materials which may catch fire or melt.
  • Page 7 GENERAL SAFETY (Cont.) ELECTRICAL SAFETY AND POWER CORD HANDLING • VOLTAGE: Make sure that your outlet voltage and circuit frequency correspond to the voltage stated on the appliance rating plate. • POWER OUTLET: Connect the appliance to a properly earthed power outlet, which must be easily accessible so that you can unplug it if necessary.
  • Page 8 GENERAL SAFETY (Cont.) • Do not use the appliance for anything other than its intended purpose. Drying of food or clothing and heating of warming pads and similar items may lead to risk of injury, ignition or fire. • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction on the use of the appliance by a person responsible for their safety.

  • Page 9: Product Overview

    PRODUCT OVERVIEW (FIG.1) (FIG.1) 1. TOP COVER 10. VISUAL WINDOW 2. SHELL 11. LEFT POT 3. CONTROL PANEL 12. RIGHT POT 4. BASE 13. RIGHT DRAWER MOVEMENT 5. SINGLE POT HANDLE 14. RIGHT DRAWER PANEL 6. HANDLE DECORATION RING 15. RIGHT AIR OUTLET 7.

  • Page 10: Important

    IMPORTANT DANGER - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 11 IMPORTANT (Cont.) - Do not place the appliance against a wall or against other appliances. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance. Do not place anything on top of the appliance. - Do not use the appliance for any other purpose than described in this manual.
  • Page 12 IMPORTANT (Cont.) CAUTION - Ensure the appliance in placed on a horizontal, even and stable surface. - This appliance is designed for household use only. It may not suitable to be safely used in environments such as staff kitchens, farms, motels, and other non-residential environments.

  • Page 13: Before The First Use

    BEFORE FIRST USE 1. Remove all packaging materials. 2. Remove any stickers or labels from the appliance . 3. Thoroughly clean the shelf and pot with hot water, some washing-up liquid and a non-abrasive sponge. 4. Wipe inside and outside of the appliance with a moist cloth. THIS IS AN OIL-FREE FRYER THAT WORKS ON HOT AIR, DO NOT FILL THE POT WITH OIL OR FRYING FAT DIRECTLY.
  • Page 14 BEFORE FIRST USE (Cont.) USING THE APPLIANCE The oil-free can prepare a large range of ingredients. HOT AIR FRYING 1. Connect the mains plug into an earthed wall socket. 2. Carefully pull the pot out of the Hot-air fryer (Fig.4) (FIG.5) (FIG.4) (FIG.6)
  • Page 15 BEFORE FIRST USE (Cont.) 4. Slide the pot back into the Hot-air fryer (Fig 7) Noting to carefully align with the guides in the body of the fryer. (FIG.7) NEVER USE THE POT WITHOUT THE BASKET IN IT. CAUTION: DO NOT TOUCH THE POT DURING AND SOME TIME AFTER USE, AS IT GETS VERY HOT.
  • Page 16 BEFORE FIRST USE (Cont.) 8. Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pot back into the appliance and set the timer to a few extra minutes. 9. To remove ingredients (e.g. fries), pull the pot out of the Hot-air fryer and place it on trial framework.

  • Page 17: Control Panel Instructions

    CONTROL PANEL INSTRUCTIONS ICON RESOLUTION Key 1 – Power Key Once the Basket and pot are properly placed in the main housing, the Power light will be illuminated. Select the power key to put the machine into standby mode After selecting the pot body to be used Selecting the Power key a second time will start the cooking process.
  • Page 18 CONTROL PANEL INSTRUCTIONS (Cont.) ICON RESOLUTION displayed, the temperature indicator on the upper left of the display are always on. When the time is displayed, the time indicator on the lower left of the display will be always on. If you press the key for 2 seconds, you can cancel the selection of pot and the product enters standby mode.
  • Page 19 CONTROL PANEL INSTRUCTIONS (Cont.) ICON RESOLUTION Key 9 –Temp /Time Key Icon Touch the “ ”key pressing it and corresponding to the screen display the temp or time, you can adjust the temperature and time you need. Key 10 –Synchronization end key Touch the “...

  • Page 20: Operation Instructions

    OPERATION INSTRUCTIONS 1. BOOT MODE Firstly, to confirm that the frying pan is correctly installed into the machine, insert the plug into the socket, the machine will be powered on, the machine will beep once, all the lights are lit for one second and then extinguished, the Power Icon will be illuminated.
  • Page 21 OPERATION INSTRUCTIONS (Cont.) 3.1.4 Touching the Time Key Icon, the defaulted or set time will be flashed on the display for the selected menu, Pressing the “+” or “-” Key Icon to adjust the time, the time will change 1min per once pressing, if pressing and hold the “+” or “-” Key Icon, the time will be continuously adjusted.
  • Page 22 OPERATION INSTRUCTIONS (Cont.) 3.3 DRAW OUT OF THE BASKET 3.3.1 If the frying pan was drawn out, the display will show the “OPEN” at any time. 3.3.2 During cooking process, If the pan was drawn out, the unit will stops working (both heating and motor will be stopped), when the basket is inserted back the unit will resume working setting as per previous.
  • Page 23 OPERATION INSTRUCTIONS (Cont.) 4.3 PAUSE OR TURN OFF THE UNIT DURING THE COOKING PROCESS. 4.3.1 In the double pots working process, if need to pause one out of 2 sides pot, need to press the Pot Key Icon key icon firstly, and then pressing the Power Key Icon within 10 seconds, Pot or Pot will be paused working.
  • Page 24 OPERATION INSTRUCTIONS (Cont.) Finish Key Icon is always illuminated. 4.6.3 When one side is on cooking, and another is HOLD: 4.6.3.1 If adjust the Hold side pre-set time to over the current cooking time for the cooking side, or to adjust the cooking time of the cooking side to let it smaller than the pre-set time of the HOLD side, the Smart Finish mode will be quitted, and the Smart Finish icon will be extinguished.
  • Page 25 OPERATION INSTRUCTIONS (Cont.) 4.6.3.8 When one side is Hold and one side is cooking, pressing the Smart Finish Key Icon, the Smart Finish Function will be quitted, then each sides keeps working as per its pre-set time/temp. 4.7 Flip reminder function 4.7.1 The program is settled with a flip reminder function at the half-time node for some menus.
  • Page 26 OPERATION INSTRUCTIONS (Cont.) process heaters and motors are not work. 7.2 Debug the unit during cooking process 7.2.1 During the cooking process, the menu does not flash but only the selected recipe icon illuminated, the screen flashes alternately showing temperature and time, the temperature and time can be adjusted as per item 3.1.3 and 3.1.4, but the recipe cannot be adjusted, the heating tube and motor work continuously.
  • Page 27 OPERATION INSTRUCTIONS (Cont.) 9 POWER OFF MEMORY: If the machine is being used with an accidental power off, the machine will return to the state before the power failure as long as the power is reapplied within 30min. 10 DISPLAY FAILURE MODE: 10.1 E1 is displayed: The NTC is Opened.

  • Page 28: Settings

    SETTINGS This table below will help you to select the basic settings for the ingredients. Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.
  • Page 29 SETTINGS (Cont.) Reference Default Single Double Temperature Time Menu weight temperature pot time Pot time Range Frame Shake 1-60 Chips 200°C 25min 28-32min 80-200°C Small 1-60 150°C 25min 25-30min 80-200°C Cake Small 1-60 Steak 200°C 15min 15-20min 80-200°C Small 1-60 Drumsticks 200°C 30min...

  • Page 30: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Clean the appliance after every use. The pot and the Shelf. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating. 1 Remove the mains plug from the wall socket and let the appliance cool down. Note: Remove the pot to let the Hot-air fryer cool down more quickly.

  • Page 31: Troubleshooting

    TROUBLESHOOTING If experiencing issues with your air fryer and isn’t operating correctly, please check the following pages for solutions to the problems. If none of the solutions offered help solve the problem with your appliance, then please contact our call centre on: info@ayonz.com.
  • Page 32 TROUBLE SHOOTING Problem Possible Causes Solving Method There are too much Do not fill the basket beyond ingredients in the basket. the MAX indication. I cannot slide the pan into the appliance The basket is not placed in Push the basket down into properly.

  • Page 33: Storage

    STORAGE 1 Unplug the appliance and let it cool down. 2 Make sure all parts are clean and dry.

  • Page 34: Specifications

    SPECIFICATIONS Power Supply 220-240V ~ 50-60Hz Rated Power 1700W Dimensions 400 (w) x 352(d) x 306(h) mm Weight Net: 7.15kg / Gross: 8.05kg...
  • Page 36 CUSTOMER HELPLINE: DISTRIBUTED BY: info@ayonz.com Ayonz Pty Ltd...
