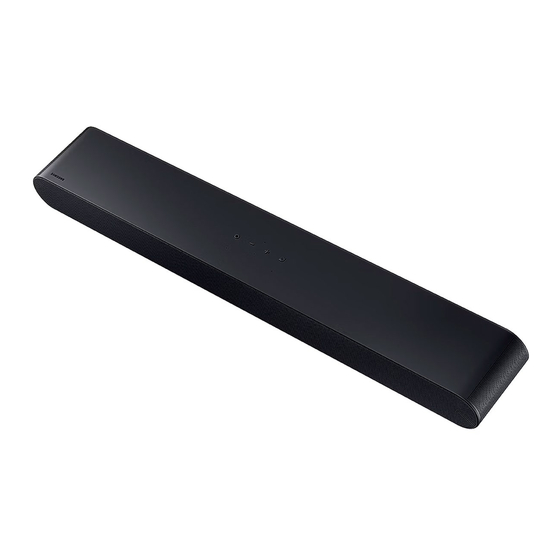

Samsung HW-S60D Simple User Manual

Simple User Guide
HW-S60D / HW-S61D
You can access the User guide on Samsung's on-line customer support center by scanning the QR code on
the left. To see the manual on your PC or mobile device, download the manual in document format from
Samsung's website. (http://www.samsung.com/support)
QUESTIONS OR COMMENTS?
Samsung Service Center 
1-800-SAMSUNG (726-7864) www.samsung.com/us/support
© 2024 Samsung Electronics Co., Ltd. All rights reserved.
SAFETY INFORMATION
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
Refer to the table below for an explanation of symbols
which may be on your Samsung product.
CAUTION
RISK OF ELECTRIC
SHOCK.
DO NOT OPEN.
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of
this product.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
Class II product : This symbol indicates
that a safety connection to electrical earth
(ground) is not required.
If this symbol is not present on a product
with a power cord, the product MUST have
a reliable connection to protective earth
(ground).
FCC Caution :
• Any changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate this equipment.
• This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit to
other equipment.
To prevent electromagnetic interference with electric
appliances, such as radios and televisions, use shielded
cables and connectors for connections.
Class B FCC Statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
of the following measures:
• Reorienting or relocating the receiving antenna.
• Increasing the separation between the equipment and
receiver.
• Connecting the equipment to an outlet that is on a
different circuit than the radio or TV.
• Consulting the dealer or an experienced radio/TV
technician for help.
FCC Radiation Exposure Statement :
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated so there is at least 8 inches
(20 cm) between the radiator and your body. This device
and its antenna(s) must not be co-located or operated in
conjunction with any other antenna or transmitter.
CALIFORNIA USA ONLY (Applicable for networking
models only.)
This Perchlorate warning applies only to primary
CR(Manganese Dioxide) Lithium coin cells in the product
sold or distributed ONLY in California USA "Perchlorate
Material - special handling may apply, See www.dtsc.
ca.gov/hazardouswaste/perchlorate."
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov.
Samsung products and recycling
– Dispose unwanted electronics through an approved
recycler. To find the nearest recycling location, go to
our website: www.samsung.com/recycling Or call,
1‐800‐SAMSUNG
– WARNING! Never dispose of batteries in a fire because
they may explode. Do not dissemble, crush, puncture,
heat, burn or reuse batteries.
For more information, visit call2recycle.org or call
1-800-822-8837. Alternatively, visit: www.samsung.
com/recycling or call 1-800-SAMSUNG.
AH81-17430A-00
Web Site Address
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefi eld Park, NJ 07660
AC voltage : Rated voltage marked with
this symbol is AC voltage.
DC voltage : Rated voltage marked with
this symbol is DC voltage.
Caution. Consult Instructions for use : This
symbol instructs the user to consult the
user manual for further safety related
information.
WARNING
• To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely set on
a solid surface or attached to a wall in accordance with
the installation instructions.
• This product contains chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm.
CAUTION
• Do not expose this apparatus to dripping or splashing.
Do not put objects filled with liquids, such as vases, on
the apparatus.
• To turn this apparatus off completely, you must pull the
power plug out of the wall socket. Consequently, the
power plug must be easily and readily accessible at all
times.
01 CHECKING THE
COMPONENTS
• Soundbar Main Unit • Wall Mount Guide
• Soundbar Remote • Holder-Screw X 2
Control • Bracket-Wall Mount X 2
• Batteries • Screw (M4 x L10) X 2
• Power Cord
• AC/DC Adapter
• HDMI Cable
NOTES
• For more information about the power supply and power
consumption, refer to the label attached to the product.
(Label: Bottom of the Soundbar Main Unit)
• To purchase additional components or optional cables,
contact a Samsung Service Center or Samsung Customer
Care.
• Design, specifications, and App screen are subject to
change without prior notice.
Important Safety Instructions
Read these operating instructions carefully before using
the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future
reference.
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not hinder in any way the safety purpose of the
polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
02 PRODUCT OVERVIEW
Front Panel / Top Panel of the
Soundbar
Volume


Multi Function Button

In standby mode, press the (Multi Function)
button to turn on the Soundbar.
Press the (Multi Function) button to change
the mode.
LED Indicator
White On -> Off
"TV ARC" or
"eARC"
White On -> Off
"Wi-Fi"
White On -> Off
"Bluetooth"
White On -> Off
"Digital Audio In"
Mic On/Off Button

Press the (Mic On/Off) button to turn on or off
the microphone.
LED Indicator
Red On
"Mic Off"
"Mic On"
To switch to Bluetooth Pairing state in "Bluetooth"
mode, press and hold the (Mic On/Off) button
on the top of the Soundbar for more than 5 seconds.
LED indicator

The LED Indicator flashes, glows, or changes color
depending on the Soundbar's current mode or
status.
PRECAUTIONS
1. Make sure to rest the AC/DC Adapter flat on a table or
the floor. If you place the AC/DC Adapter so that it is
hanging with the AC cord input facing upwards, water
or other foreign substances could enter the Adapter
and cause the Adapter to malfunction.
2. Ensure that the AC power supply in your house
complies with the power requirements listed on
the identification sticker located on the bottom
of your product. Install your product horizontally,
on a suitable base (furniture), with enough space
around it for ventilation (3~4 inches). Make sure the
ventilation slots are not covered. Do not place the unit
on amplifiers or other equipment which may become
hot. This unit is designed for continuous use. To fully
turn off the unit, disconnect the AC plug from the wall
outlet. Unplug the unit if you intend to leave it unused
for a long period of time.
3. During thunderstorms, disconnect the AC plug from
the wall outlet. Voltage peaks due to lightning could
damage the unit.
4. Do not expose the unit to direct sunlight or other heat
sources. This could lead to overheating and cause the
unit to malfunction.
5. Protect the product from moisture (i.e. vases), and
excess heat (e.g. a fireplace) or equipment creating
strong magnetic or electric fields. Unplug the power
cable from the AC wall socket if the unit malfunctions.
Your product is not intended for industrial use. It
is for personal use only. Condensation may occur if
your product has been stored in cold temperatures.
If transporting the unit during the winter, wait
approximately 2 hours or until the unit has reached
room temperature before using.
6. The battery used with this product contains chemicals
that are harmful to the environment. Do not dispose
of the battery in the general household trash. Do not
expose the battery to excess heat, direct sunlight, or
fire. Do not short circuit, disassemble, or overheat the
battery. CAUTION : Danger of explosion if the battery
is replaced incorrectly. Replace only with the same or
equivalent type.
FCC NOTE (for U.S.A):
FCC Supplier's Declaration of Conformity
Responsible Party - U.S. Contact Information:
Samsung Electronics America, Inc.
85 Challenger Road.
Ridgefield Park, NJ 07660
Phone: 1-800-SAMSUNG (726-7864)
FCC Compliance Statement :
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Bottom Panel of the Soundbar
DC 19V DIGITAL
 AUDIO IN
 DC 19V DIGITAL
(OPTICAL)
AUDIO IN
(OPTICAL)
SERVICE
HDMI
 SERVICE
(eARC)
HDMI
(eARC)
DIGITAL
AUDIO IN
DC 19V (OPTICAL)
HDMI
SERVICE (eARC)
DC 19V (Power Supply In)

Connect the AC/DC power adapter.
SERVICE

Connect a USB storage device to upgrade the
product's software.
DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an
external device.
HDMI (eARC)

Connect to the HDMI (eARC) port on a TV.
03 CONNECTING THE
SOUNDBAR
Connecting Electrical Power
• For more information about the required electrical
power and power consumption, refer to the label
attached to the product. (Label: Bottom of the Soundbar
Main Unit)
DC 19V
SERVICE
DC 19V
SERVICE
Bottom of the Soundbar
Main Unit
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
