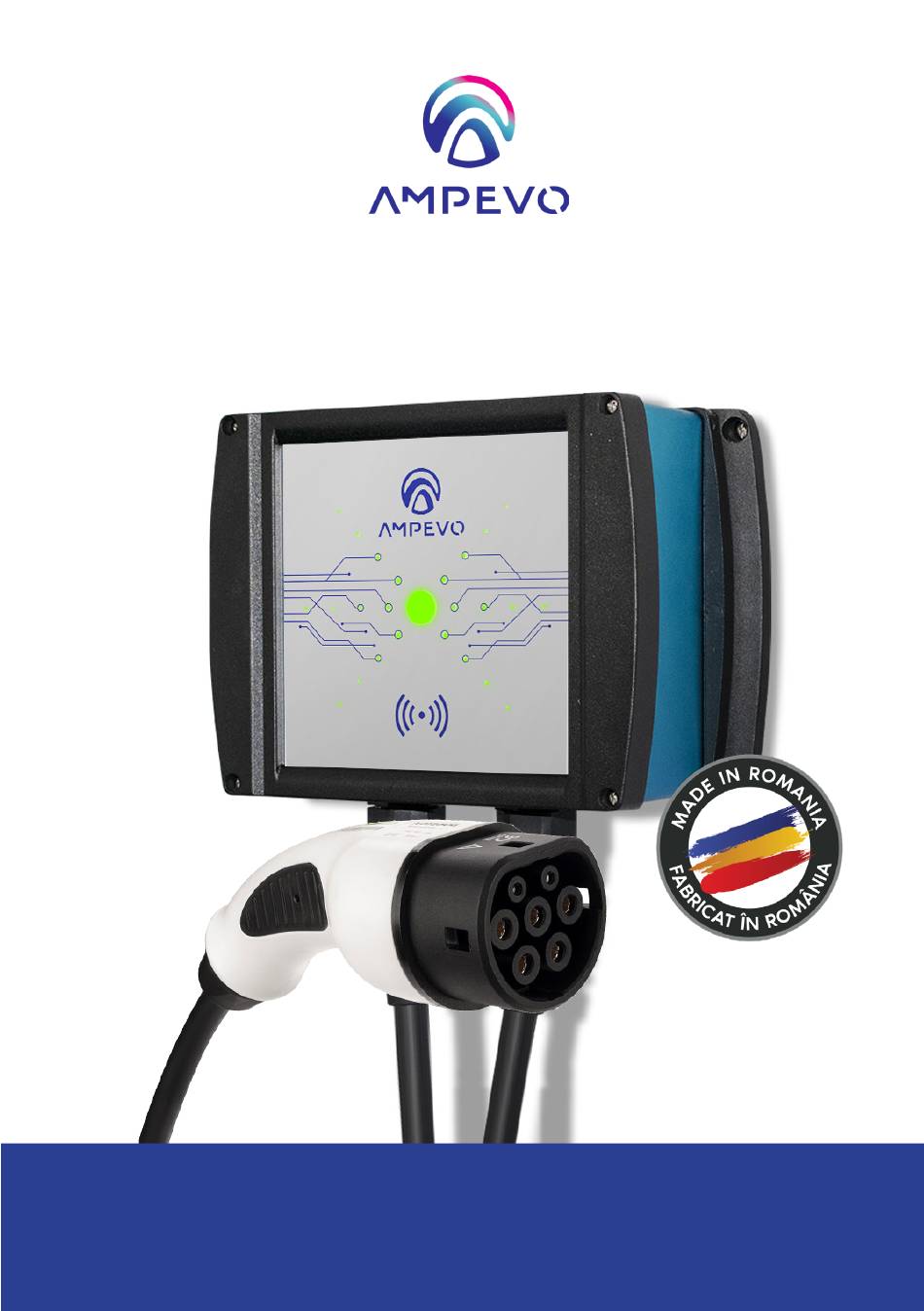

Page 1 Installation and use manual AMPEVO - electric car charging station...
Page 2: Table Of Contents
Table of Contents Informative note The warranty Safety instructions General informations Installation How to use it AMPEVO App Technical specifications Contact us Pag. 2...
Page 3: Informative Note
Informative note The following manual provides you informations about the installation and use of the EV charging station. By its easy reading way, we recommend you to read the manual content carefully, and to properly instruct the employers in whose attributions are the installation of the station, and its settings operations.
Page 4: The Warranty
THE WARRANTY Warranty The express warranty of the charging station would last 2 years, starting at the purchase of it and its delivery. This warranty represent the legal obligation from the provider to the costumer, without any other costs, to bring the product to compliance, including repayment, repair of changing the product, if it does not correspond to the conditions stated in the warranty or in the advertisement.
Page 5: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Danger of electric shock! ATTENTION! This product must be installed only by qualified personal. Its installation requires electricity. The lack of knowledge in this domain may cause severe injuries or even death. The installation of the charging station may require an extra surge protection, from the national regulations or the electric car.
Page 6 Safety instructions Make sure that the threaded joints are tightened enough, but not too much, before installing the EV charging station. The housing cover must never be left open without supervision. Close it if you leave or if it rains. Do not perform constructive transformations of modifications to the charging station by your own! Any type of reparations to the station are not acceptable, and...
Page 7 Use acording to the purpose The product was created to be used at alternative current, both for the interior and for the exterior placement, to which electric cars can be coupled, with both single-phase and three-phase charging systems. The EV charging station was designed, produced, verified and documented according to the safety regulations, so by following the usage, technical and safety instructions, this product doesn’t show any type of damage or danger.
Page 8: General Informations
AMPEVO Electric Car Charging Station Perfectly for both outside and inside usage, the AMPEVO electric car charging station stands out by its systems that provides confidence and security to the user, easy to operate by its user-friendly facilities, these elements combined into a product which supports personal needs and the environment.
Page 9 Safe and fast charging Single-phase Adjustable electric and three-phase intensity Management charging Compatible with all Electrical power RFID Type 2 electric cars 7.4kW – 22kW Access control Weather and impact Differential protection Bluetooth protection IP65 / IK10 AC and DC Connection Pag.
Page 10 Model: AMP107T2GC-CP / AMP322T2GC-CP EV charging station with Type 2 charging cable Model: AMP107T2GO-CP / AMP322T2GO-CP EV charging station with Type 2 Outlet Pag. 10...
Page 11: Installation
INSTALLATION ATTENTION! At every charging station installation, we recommend you to connect it to the electrical system ONLY in places that have type B RCD differential protection against surge and short- circuit. The charging station must be acclimatized for at least 3 hours, if there’s a temperature variation more than 15°C, between transportation and installation place.
Page 12 INSTALLING THE CHARGING STATION IMPORTANT: The installation must be made with the right screws, according to the placement’s surface and structure. Installation instructions The right way to install the EV charging station can be made by following the steps below: 1.
Page 13 Instruction for the electrical connection IMPORTANT: Connection to the single-phase and three-phase electric system must be made by an electrician or specialist. At the same time, there must be a method to stop the electric energy when needed, for installation, repairs or any technical problems. Single-phase connection Three-phase connection L1 - Phase 1 (Brown)
Page 14: How To Use It
1. Connect the charging station to the electric car through the cable. 2. After the connection, the charging process may start by the following methods: Plug&Charge AMPEVO App RFID Card Simply connecting the car to following the instructions of by scanning the cards on the...
Page 15 Blue-Green: EV-PRESENT Once the charging station – electric car connection is made through the cable, the station will indicate the EV-PRESENT function, by the BLUE – GREEN color. Green: CHARGE The GREEN color of the LED light represents that the charging process has started, and the care has entered in CHARGE mode.
Page 16 IMPORTANT: Connecting the cable to the car will make the station go in EV-PRESENT status. This status may appear in between 3-10 seconds from that moment, depending on the car model. For the Outlet type charging station, the cable must be connected first in the station, and then in the car.
Page 17 The station has the READY LED functioning, but is not Charging In this case, check if the charging cable is well connected to the car. If the charging station has an Outlet, check if the cable is well placed there too.
Page 18: Ampevo App
AMPEVO APP Start the charging with the AMPEVO App To access the app, you must activate the Bluetooth and location (important) of the device, and give it access to the media files, camera and SMS messages. Only one user can be connected at a time to the app. If you have troubles...
Page 19 After scanning, a new window will appear where you can see the code, and you must press the button CONNECT (Fig.02) Fig.02 Right after that you will be able to see the main menu, where you can find informations about the device and details about the charging station, as its statuses (Ready, EV-Present, Charging) and its energy consumption.
Page 20 Once you accessed the previous function, a new menu will be opened, and here you can find: a button for changing the PIN code, a button for enrolling you access cards for the station, still here you can delete them, or you can set the electric power intensity for charging.
Page 21: Technical Specifications
TECHNICAL SPECIFICATIONS Model: AMP107T2GC-CP / AMP322T2GC-CP / AMP107T2GO-CP / AMP322T2GO-CP 01 - Electric AMP107T2GC-CP AMP322T2GC-CP Charging power (kW) 7.4 kW 22 kW Charging current (A) 50Hz frequency 8-32A Programmable charging current Changing the current power from the App 230VAC ±10% 400VAC ±10%...
Page 22 01 - Electric AMP107T2GO-CP AMP322T2GO-CP Charging power (kW) 7.4 kW 22 kW Charging current (A) 50Hz frequency 8-32A Programmable charging current Changing the current power from the App 230VAC ±10% 400VAC ±10% Power supply Single-phase Three-phase Mode 2 Charging mode Advanced charging control, by the station-car communication Type 2 Connector type...
Page 23: Contact Us
Contact Us Got charging problems and need help? We’re here to help! www.ev-mag.ro evmag@generalsecurity.ro EV-Mag by General Security Street. Piata 1 Mai, No. 4-5, Postal code: 400141 Cluj-Napoca, Cluj România Pag. 23...
