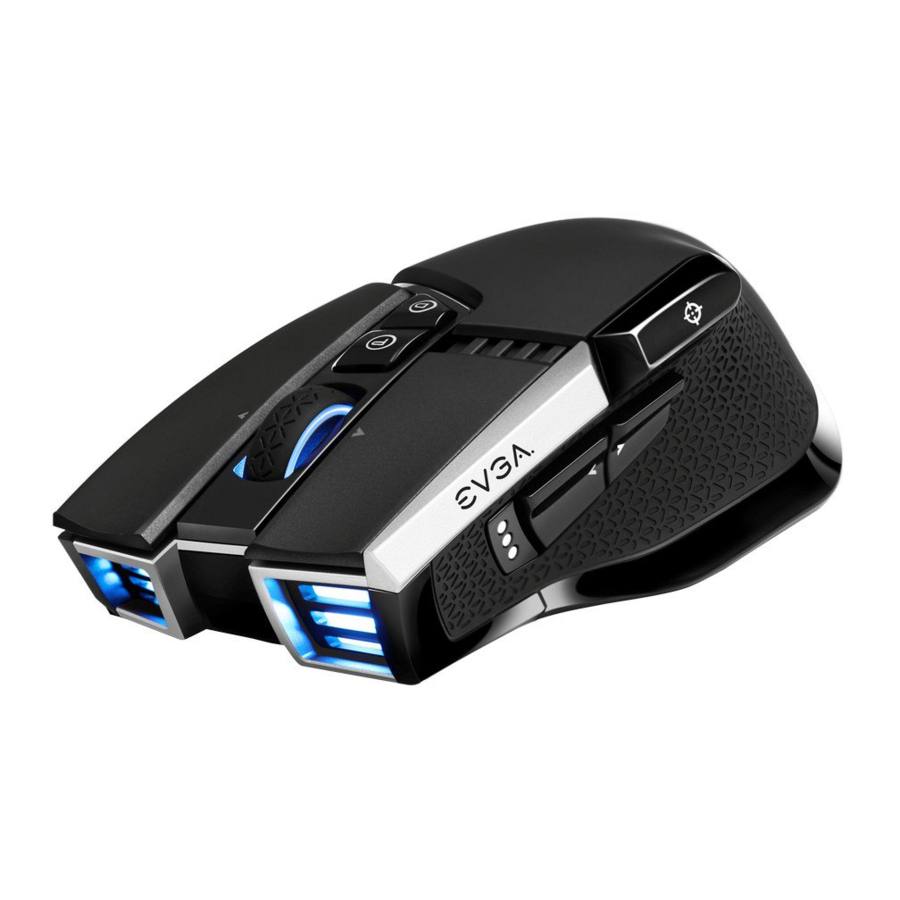

EVGA X20 - GAMING MOUSE Manual

GETTING START YOUR X20 GAMING MOUSE

INTRODUCTION

1. Left Click Key
2. Right Click Key
3. Middle Click Key
4. Wheel Left Scroll
5. Wheel Right Scroll
6. Profile Cycle Key
7. DPI Cycle Key
8. DPI Indicator
9. Side Front Key
10. Side Rear Key
11. Sniper Button

12. Micro USB Port
13. Lift Off Distance Detection Sensor 2
14. Lift Off Distance Detection Sensor 1
15. Pixart 3335 Optical Sensor
16. Connection Switch
17. Pairing LED
18. Pairing Button
19. USB Charging/Data Cable
20. Extension Adapter
21. USB Receiver

SETTING UP YOUR X20 GAMING MOUSE

2.4GHz Wireless Mode:

1. Plug the USB charging/data cable to computer.
2. Use extension adapter to connect USB receiver and USB charging/data cable.
3. Turn the connection switch to " 2.4G" position.
4. The Pairing LED on mouse will turn solid green while connected.

Bluetooth Wireless Mode:

1. Turn on Bluetooth enabled computer and initiate Bluetooth pairing mode.
2. Turn the connection switch to " " position.
3. Press pairing button on mouse for 5 seconds and the pairing LED on mouse will start blinking green.
4. The Pairing LED on mouse will turn solid green while connected.

Sniper Button:
Allows you to change DPI to 400 (Default value) when held.

LOD Sensors:
X20 Mouse is equipped with two LOD sensors. You can calibrate each LOD sensor with EVGA Unleash Software.

LED Indicator:

Battery Status	Battery Charging	Scroll Wheel LED- Green
	Battery Critical	Scroll Wheel LED- Blinking Red
2.4GHz Status	2.4GHz- Pairing	Pairing LED- Blinking Green
	2.4GHz- Paired	Pairing LED- Green
	2.4GHz- Pairing Failed	Pairing LED- Pulsing Green
Bluetooth Status	BT- Pairing	Pairing LED- Blinking Green
	BT- Paired	Pairing LED- Green
	BT- Pairing Failed	Pairing LED- Pulsing Green
DPI Status	Stage 1 - 800 DPI
	Stage 2 - 1600 DPI
	Stage 3 - 3200 DPI
	Stage 4 - 6400 DPI
	Stage 5 - 16000 DPI
Profile Status	Profile 1	LED - Red
	Profile 2	LED - Orange
	Profile 3	LED - Yellow
	Profile 4	LED - Green
	Profile 5	LED - Blue
