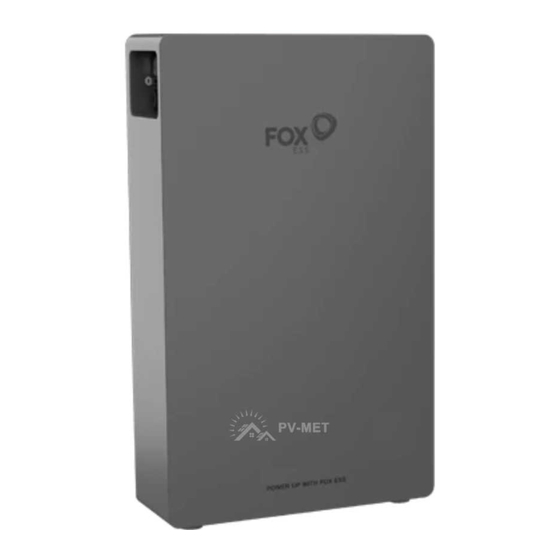

FoxESS EP5 Quick Installation Manual

EP5 Quick Installa�on Guide
1. Tools Required
The following tools will be required to install battery.
6mm Magne�c
Crimpers(B1) Safety Shoes(C1) Safety Gloves(D1)
Phillips Screwdriver(A1)
8mm External
Safety Glasses(E1) Rubber Mallet(F1) Marker(G1)
Hexagonal Socket(H1)
Hammer Drill
Cable Ties(I1) Spirit Level(K1)
@φ8mm(J1)
2. Packing List
Please check if following items are included with the package:
Ba�ery×1(A2) Bracket(wall)×1(B2) Bracket(ba�ery)×2(C2) M6*12 Screw×4(D2)
D8 Plas�c Expansion
M5*10 Screwsx2(F2) OT Terminal×2(G2) Parallel Plug×2(H2)
Tube×4(E2)
PCS Communica�on Ground Cable Power Cable Quick Installa�on
Cable (3m)×1(I2) (3m)×1(J2) Guide×1(L2)
(3m)×1(K2)
是Product Appearance在，惯看
3. Product Appearance
14
1
13
2
9
3
10 12
4
11
15
Left side Front
No. Description No.
1 Handle
2 Ground Terminal
PCS COM
3
BMS Status LED
4
5 BMS SOC LED
6 DC+
7 DC-
Power Switch
8
4. Installation Prerequisites
Installation Angle Requirements
The battery can be installed on the floor or on the wall. The installation angle
requirements are as follows:
- Do not install the battery in a forward tilt, backward tilt, lateral tilt, horizontal
position, or upside-down position.
Installation Location Requirements
-The location should be far from the seaside to avoid salt spray and high
Mul�meter
(Vdc>500)(L1) humidity, with a distance of over 1000m.
-The location should be free from flammable or explosive materials, with a
minimum height of 0.9m.
-The environment at the location should be cool, away from high temperatures
and direct sunlight.
-There should be minimal dust and dirt at the location.
-The location should be free from corrosive gases, including ammonia and
acidic vapors.
-The building should be of solid brick and concrete structure for installation on
walls or floors. If other types of walls and floors are used, they must be made
of flame-retardant materials and meet the load requirements of battery.
Installation space requirements:
During the installation steps, ensure that there are no other heating device or
flammable materials around the battery. Sufficient space for heat dissipation
and safety isolation should be provided.
Standing mounting：
≥300mm ≥300mm
≥300mm ≥300mm ≥300mm
Wall mounting：
≥300mm ≥300mm
7
8
≥300mm ≥300mm ≥300mm
6
5
15 ≥70mm ≥70mm
5.Installation Steps
STEP-1:
The steps for installing the bracket is as follows:
a. Place the bracket against the wall, adjust the hole position with a level (K1) ,
and mark the positions of the 4 holes.
b. Remove the bracket, drill the holes with a hammer drill (φ8mm, depth range
Right side
45-50mm), and tighten the expansion bolts to ensure that the bracket is securely
installed.
c. Fix the bracket to the wall with ST6*40 screws (E2) , ensuring that the bracket
is installed in a horizontal position.
Description
9 Valves
10 LINK OUT
Ground Terminal
11
G1
12 LINK IN
Handle
13
14 DC Switch
Battery Bracket
15
STEP-2:
The steps for installing the battery on the wall is as follows:
a. Align the buckle of the battery bracket with the holes of mounting bracket on
the wall, then place the battery from top to bottom.
b. Observe the left and right sides of the bracket to ensure that the holes of the
battery bracket and mounting bracket on the wall are aligned.
B2
H=248mm
STEP-3:
Insert 2 pcs of M5*10 screws (F2) into the holes on the left and right sides of
the mounting bracket then tighten the screws.
B2
F2 F2
H≥321mm
M5
2N · m
H1 F2
6. Wiring Steps
Ø8mm
90°
K1 J1
45-50mm
Stand-alone mode：
B2
STEP-1:
Insert the 2 parallel plugs (H2) into the LINK IN and LINK OUT ports respectively.
F1
E2
H2
A1
E2
ST6
5.5N · m
STEP-2:
Connect the inverter cables:
Note: Power cable (K2) must be pulled straight from the battery DC+/- for more
than 80mm before bending.
a. Connect the ground cable (J2) to the ground.
F2
2N · m
Bat
Press Tighten
Insert
BMS
BAT-
BAT+
DC+ DC- DC+
DC-
Ground
PCS
Ground
PCS
M5
Ground
J2
