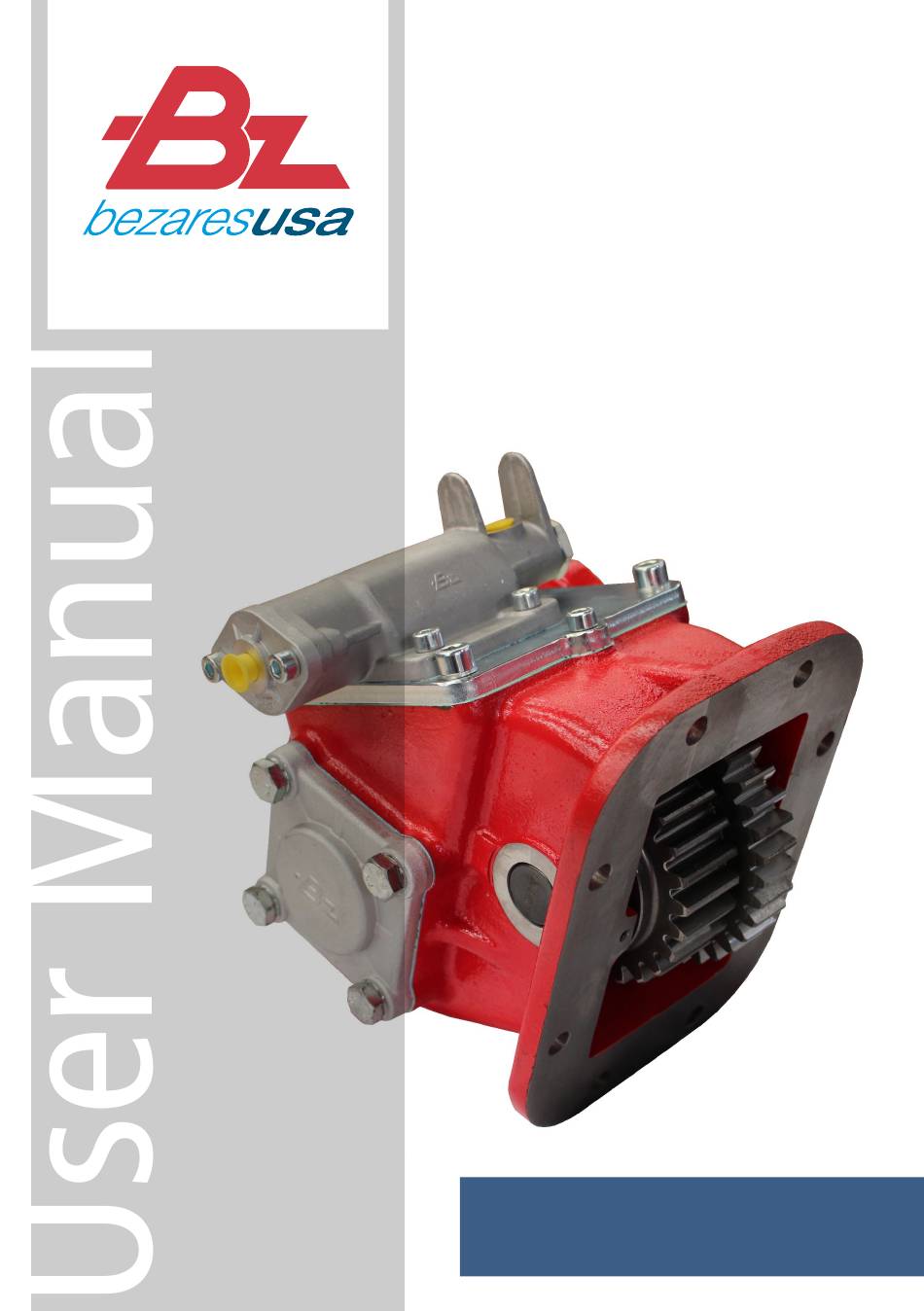

- Page 1 8500 series Hydraulic Systems & 8510 Building our world +1 000 660 1706 • pto-usa.com • pto@bezares.com...
-
Page 3: Table Of Contents
Contents Safety information ........................3 Foreword ............................4 Application questions .........................4 Mounting to the transmission (Fuller applications) ..............5 P.T.O. Shifting Procedure & Precautions ..................6 Endurant PTO Installation ......................7 Returns and warranty terms ......................15... -
Page 4: Safety Information
IMPORTANT Because most of our Bezares Power Take–Offs and P.T.O. drive lines are sold through distributors, the product applications and the resulting degree of exposure to danger of the operators are beyond the knowledge and controls of BZ U.S.A. -
Page 5: Foreword
To help you select the proper type, size and design of P.T.O. it is advisable to discuss your specific requirements with a Bezares P.T.O. specialist. They know their products and Power Take–Offs. They can inform you about everything you need to know about power, at the right time, before you specify components. -
Page 6: Mounting To The Transmission (Fuller Applications)
Fuller PTO Installation 30-5 Nm 22-3,5 lb-ft accordance with the pattern shown. Fit the gasket (1) plus a spacer (2), plus another gasket (1) on Fit the PTO with nuts (8) and washers (9) in accordance with the pattern shown. torque remove torque... -
Page 7: P.t.o. Shifting Procedure & Precautions
P.T.O. Shifting Procedure & Precautions CAUTION This vehicle is equipped with a Power Take-off. Shut engine off before working on Power Take- Off or getting below vehicle. Consult operating instructions before using. POWER TAKE-OFF OPERATION VEHICLE STATIONARY. Mechanical Transmission. • A power take-off is, and should be, operated as an integral part of the main transmission. •... -
Page 8: Endurant Pto Installation
PTO is engaged with a switch outside the cab NAVISTAR INSTALLATION REQUIREMENTS When selecting and ordering Bezares PTO ensure to order M2 metric stud kit. Ensure the transmission control module (TCM) has the J1939 enabled Have the dealer order the listed below codes for the correct PTO prep package... - Page 9 Endurant HD PTO Installation 30-5 Nm 22-3,5 lb-ft figure tighten torque shown in the figure. torque...
- Page 10 Endurant XD, XD Pro PTO Installation Mechanical Installation (PACCAR and NAVISTAR) The ribbed surface 20±5 Nm should face outward, 50±5 Nm toward the installer. 1/4" BSP 25±5 Nm 60±10 Nm 30-5 Nm 22-3,5 lb-ft GENERAL INFORMATION INSTALLATION METHOD The following installation instruction for Drain the gearbox and clean the cover plate and surrounding area to prevent ingress of dirt.
- Page 11 Endurant PTO Installation Electrical Installation PACCAR 1. Locate the TCM connector, it is on driver side frame rail near top of transmission. 2. Remove end cover from sealed connector to expose pins. 3. Connect wire harness, P92-5075- 2000, to connector. ELECTRIC ENGAGED EQUIPMENT At the left hand forward cab mount, P198 is available for PTO controls that are elec-...
- Page 12 Endurant PTO Installation Modify the indicator ball switch connector wires same way, both leads, length is determined at assembly. Ensure the length of the wire is long enough to establish a good clean ground location (recommend battery ground). Ensure splices are properly sealed.
- Page 13 Endurant PTO Installation 5. Truck must be in neutral. 6. Insert key in ignition. 7. Verify no one is under vehicle or near any rotating parts – ALL CLEAR! 8. Start engine, the PTO is not engaged and the output shaft is not turning.
- Page 14 Endurant PTO Installation Electrical Installation NAVISTAR There are two feed-back wire color combinations based on engine selection. If the LT tractor has the X15 Cummins, colors may be green and purple. Purple is PTO #1 The X15 may also come with PTO #1 wire marked K88. If the LT tractor has the A26 engine there are two green wires.
- Page 15 Endurant PTO Installation Operation Read and follow the truck’s manual before attempting to run PTO Verify tranny has adequate fluid and extra fluid to compensate for PTO (DO NOT OVER FILL) Follow all company, federal, state and local safety procedures and guidelines. Apply parking brake.
-
Page 16: Returns And Warranty Terms
The items described in this document and other documents or descriptions provided by Bezares USA, Ltd. are hereby offered for sale by Bezares USA, Ltd. These terms and its acceptance by any customer shall be governed by all of the following Terms and Conditions. - Page 17 PTO Maintenance Guide: Keep Your Vehicle Running Smoothly Proper maintenance of your Power Takeoff (PTO) is crucial to ensure the longevity and optimal performance of your vehicle. Follow these tips to maintain your PTO: Safety First: Do not go under or near PTO when the engine is running. Shut off the engine and disconnect batteries on electric motor-driven PTOs (i.e., hybrid vehicles) before checking or servicing.
