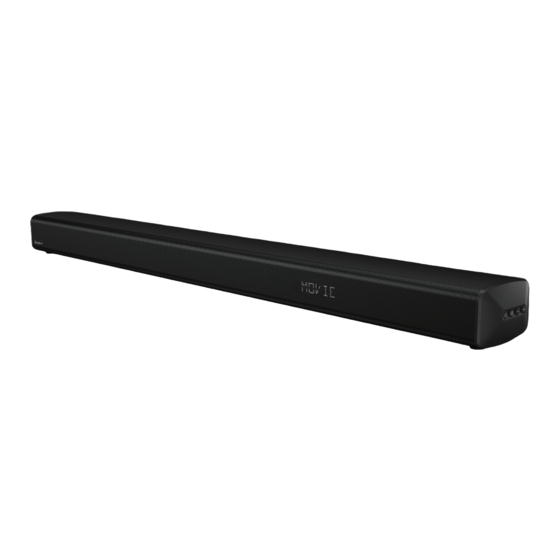

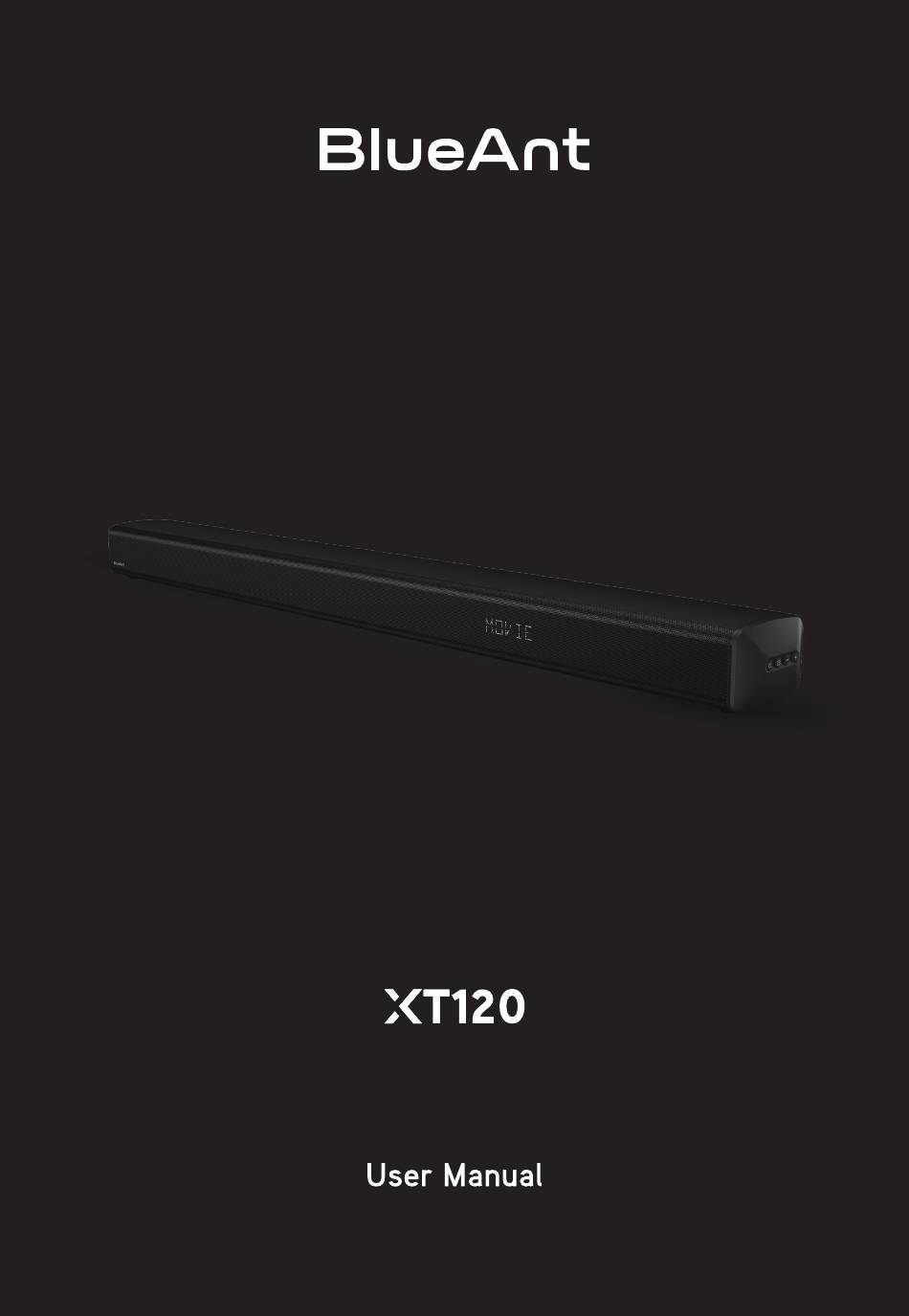

- Page 1 2.1 CH Soundbar with Built-in Subwoofer...
-
Page 3: Table Of Contents
Contents What’s in the Box ......................4 Identifying the Parts ..................... 5 Main Unit ......................................5 Remote Control ....................................6 Preparations the Remote Control ..................6 Prepare the Remote Control ................................6 Replace the Remote Control Battery ............................6 Placement and Mounting ....................7 Placement ......................................7 Wall Mounting (if using option-B) ...............................7 Connections ........................ -
Page 4: What's In The Box
1. What’s in the Box Remote Control / AC Power Cord x 1 Main Unit AAA Batteries x 2 3.5mm to 3.5mm Audio Cable Wall Bracket Wall mounting Screw HDMI Cable • Design and specifications are subject to change without notice. Images, illustrations and drawings shown on this User Manual are for reference only. -
Page 5: Identifying The Parts
2. Identifying the Parts 2.1 Main Unit AC~ Socket Use to connect to power cable. Remote Control Sensor COAXIAL Socket Receive signal from the remote control. Use to connect to the COAXIAL OUT socket on Display Window an external device. Show the current status. -
Page 6: Remote Control
3. Preparations the Remote Control 2.2 Remote Control Switch the unit between ON and STANDBY mode. 2 SOURCE buttons Select the play function. Skip to previous/next track in Bluetooth/USB mode. • Play/pause/resume playback in Bluetooth/USB mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device. -
Page 7: Placement And Mounting
4. Placement and Mounting 4.1 Placement If your TV is placed on a table, you can place the unit on the table directly in front of the TV stand, centered with the TV screen. If your TV is attached to a wall, you can mount the unit on the wall directly below the TV screen. -
Page 8: Connections
eARC/ARC HDMI OUT TV eARC/ARC 5. Connections 5.1 HDMI Connection Some 4K HDR TVs require the HDMI input or picture settings to be set for HDR content reception. For further setup details on HDR display, please refer to the instruction manual of your TV. Method 1: ARC (Audio Return Channel) The ARC (Audio Return Channel) function allows you to send audio from your ARC- compliant TV to... -
Page 9: Connect Power
5. Connections cont'd 5.5 Connect Power Risk of product damage! • Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit. • Before connecting the AC power cord, ensure you have completed all other connections. Connect the mains cable to the AC~ Socket •... -
Page 10: Aux / Optical / Coaxial / Hdmi Operation
Switch to another function on the Soundbar. Activate your Bluetooth device and select the • Disable the function from your Bluetooth search mode. “BlueAnt XT120” will appear on device. your Bluetooth device list. • Press and hold the BT or... -
Page 11: Listen To Music From Bluetooth Device
8. Bluetooth Operation cont'd 9. USB Operation Insert the USB device. Tips: • The operational range between the Soundbar and the device is approximately 8 metres (without any object between the Bluetooth device and the unit). ® • Before connecting a Bluetooth device to the unit, ensure you know the device’s capabilities. -
Page 12: Troubleshooting
10. Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. No power • Ensure that the AC cord of the apparatus is properly connected . •... -
Page 13: Specifications
11. Specifications Soundbar Power Supply 100-240V~ 50/60Hz 30 W Power Consumption < 0.5 W (Standby) Speakers Impedance 4Ω x 2 500mA Hi-Speed USB (2.0) / FAT32 / FAT16 32G (max) , MP3 Audio input sensitivity 500mV Frequency Response 40Hz - 20KHz Dimension (WxHxD) 950 x 76 x 106 mm Net weight 2.5 kg... -
Page 14: Important Safety Instructions
12. Important Safety Instructions other. A grounding plug has two blades and CAUTION a third grounding prong. The wide blade or RISK OF ELECTRIC SHOCK the third prong is provided for your safety. If DO NOT OPEN the provided plug does not fit into your outlet, consult an electrician for replacement of the CAUTION: TO REDUCE THE RISK OF ELECTRIC obsolete outlet. - Page 15 Bluetooth SIG,. Inc. and any use qualified personnel before operating it any of such marks by Blueant Wireless is under license. further. Other trademarks and trade names are those of their •...
