Summary of Contents for VBK VR-STS 2021

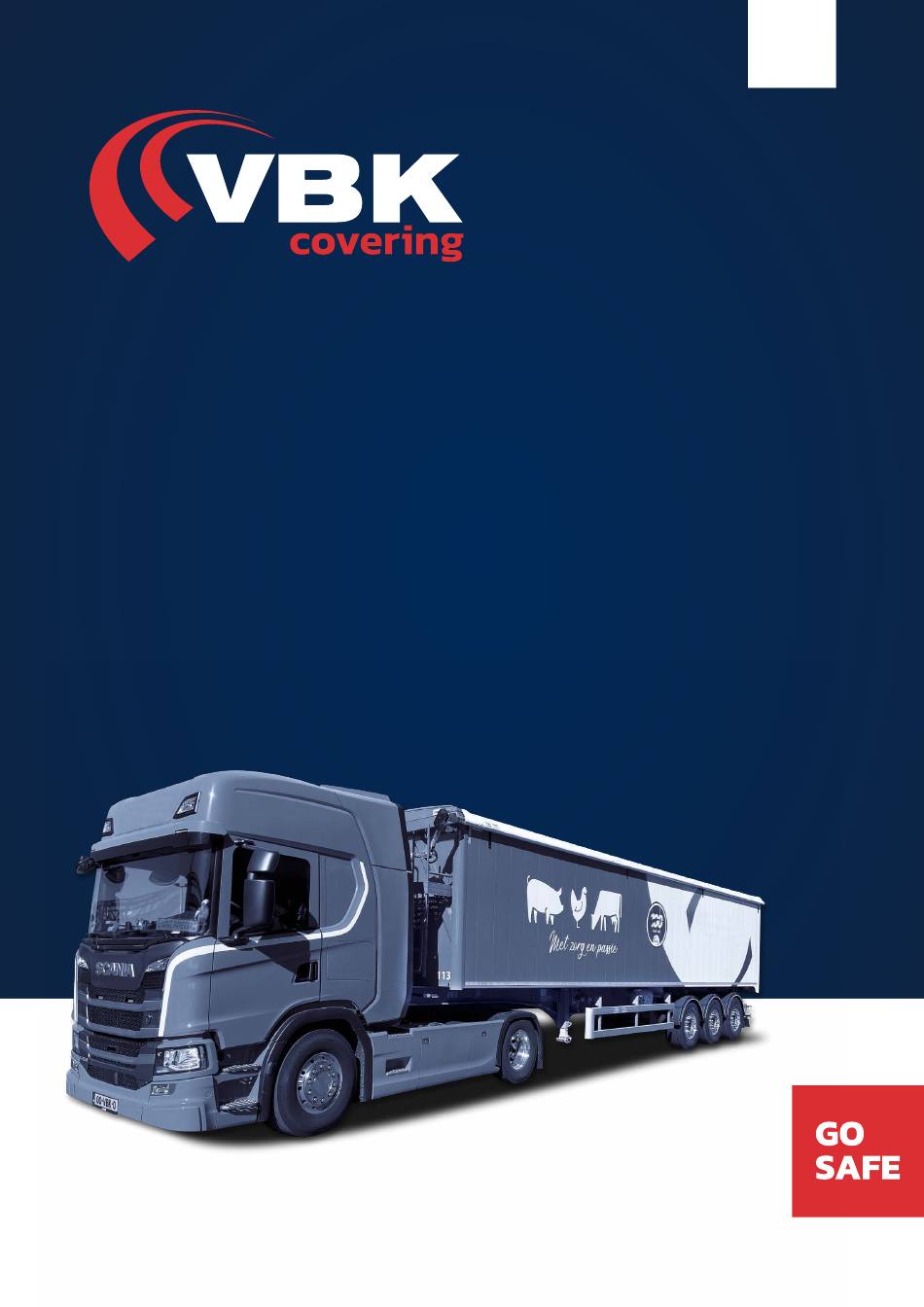

  • Page 1 User manual VR-STS VR-MAXX...
  • Page 2 + 31 (0) 493 529 559 Fax : +31 (0) 84 719 65 27 Email: office@vbkcovering.nl The content of this file is strictly confidential. Any person who is in the possession of this document without the knowledge of VBK Covering has obtained it illegally!
  • Page 3 The warranty will be voided as soon as modifications and/or changes are made. VBK Covering cannot be held liable for consequential damage in the event of malfunctions of the VBK STS sheeting system (e.g. damage to products, business interruption).

  • Page 4: Table Of Contents

    User manual for the VBK STS sheeting system Version STS-01 TABLE OF CONTENTS Introduction ..........................................4 Description and use of the VBK STS sheeting system ..............4 Accompanying documents ........................... 10 Safety ............................................11 Introduction ................................... 11 General safety rules ............................... 11 Warnings on the machine ............................
  • Page 5 Version STS-01 Use of this document. This document has been specifically written for those who work with the VBK STS sheeting system. This person is referred to as the operator. The operator must read the entire manual. For those who perform other work, the following chapters...

  • Page 6: Introduction

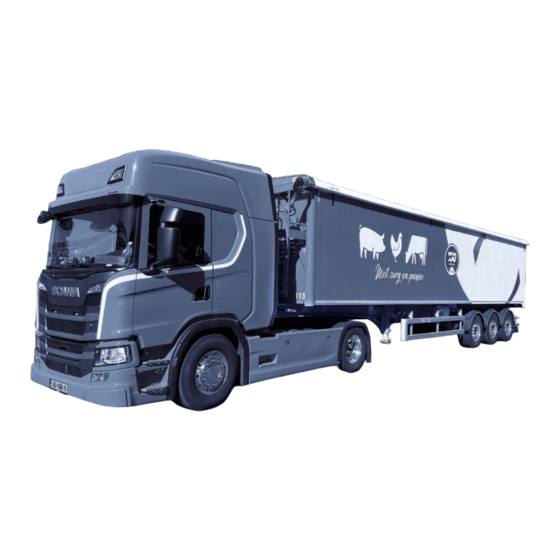

    Remark: The details of the photographs used in this documentation may differ from the delivered machine. The VBK STS sheeting system as supplied by VBK Covering has been specifically designed to cover open top trailers. See also photo 1. photo 1: Overview VBK STS sheeting system ©...
  • Page 7 User manual for the VBK STS sheeting system Version STS-01 The VBK STS sheeting system consists of the following main components: Mounting bracket Front arm, consisting of: Pivot Lower arm Upper arm Motor coupling– Tarp axle or a flexible drive shaft...
  • Page 8 User manual for the VBK STS sheeting system Version STS-01 Mounting bracket (possible versions) © VBK Covering Page 6 of 30...
  • Page 9 User manual for the VBK STS sheeting system Version STS-01 Front arm (possible versions) Front arm VR-MAXX Front arm VR-W Front arm STS Front arm STS next to tipping cylinder Motor Shaft thru motor (12 or 24V) STS motor (12 or 24V) Hydraulic motor ©...
  • Page 10 User manual for the VBK STS sheeting system Version STS-01 Drive Tarp axle Rear drive (possible versions) Strap return with strap Flexible rear arm Fixed rear arm © VBK Covering Page 8 of 30...
  • Page 11 User manual for the VBK STS sheeting system Version STS-01 Securing clips Power connector (possible versions) Rema Nato © VBK Covering Page 9 of 30...

  • Page 12: Accompanying Documents

    Version STS-01 Accompanying documents The following accompanying documents are an integral part of the VBK STS sheeting system:  User manual for the VBK STS sheeting system (the document you are reading now)  Electrical diagram  Layout drawing  CE declaration ©...

  • Page 13: Safety

     Do not reach into or touch the VBK STS sheeting system while it is operating or is enabled. Even if the machine is not in use, it may be “enabled” (depending on how the drive version). Maintain an appropriate distance.

  • Page 14: Warnings On The Machine

    2: Overview danger zone VBK STS sheeting system Warnings on the machine Instruction pictograms have been attached to the VBK STS sheeting system. The following rules apply: These pictograms must not be removed or damaged. The operator must check this regularly.
  • Page 15 1: W024 warning crushing of hands photo 4: Overview warning safety pictogram W024  Inform the operator that operating the VBK STS sheeting system is only permitted after they have read and understood the user manual. This is indicated by the read instructions pictogram included on the operation instructions.

  • Page 16: Special Safety Measures

    In addition, the VBK STS sheeting system must have the following special safety measures:  The button must be pressed and held down for each movement of the VBK STS sheeting system. Movement must stop immediately when the button is released.

  • Page 17: Specifications

    : air pressure up to 1000m above sea level The VBK STS sheeting system is intended for outdoor use. The VBK STS sheeting system is not suitable for use in areas with an explosion hazard. Applied directives and standards See Declaration of Conformity.

  • Page 18: Operating Instructions

    The VBK STS sheeting system uses large current. This can cause cables and connectors to become hot. Do not touch cables and connectors until the system has been idle for a while. The VBK STS sheeting system is not resistant to lighting strikes. Do not use the VBK STS sheeting system thunderstorms.

  • Page 19: Opening The Vbk Sts Sheeting System

     After the VBK STS sheeting system has been opened, u must switch off the remote control again, unless it is required for other functions.
  • Page 20 User manual for the VBK STS sheeting system Version STS-01 © VBK Covering Page 18 of 30...

  • Page 21: Closing The Vbk Sts Sheeting System

     Check that the height and width of the location allow sufficient space for the movement of VBK STS sheeting system.  Check that no load is protruding that could restrict the movement of the VBK STS sheeting system. Remove any protruding load if necessary.
  • Page 22 User manual for the VBK STS sheeting system Version STS-01 © VBK Covering Page 20 of 30...

  • Page 23: Driving

    Adjusting Different types of loads or conditions can cause the system to behave differently. For this reason, VBK Covering has created versatile systems. If necessary, the spring tension in the system can be adjusted to optimise the functionality of the system.

  • Page 24: Cleaning

    Be aware of electrical contacts. They can cause electric shock.  When the VBK STS sheeting system is cleaned with a pressure washer or with a normal jet of water, avoid spraying the bearings, the electrical installation and the switch panels. These parts are only splash-proof.

  • Page 25: Other Activities

    User manual for the VBK STS sheeting system Version STS-01 OTHER ACTIVITIES Commissioning Pay particular attention to the following points when commissioning the VBK STS sheeting system:  All mechanical aspects must be properly adjusted.  All electrical connections must be properly connected. General maintenance regulations Similar to all industrial machines and installations, routine inspections and maintenance should be performed regularly.

  • Page 26: Specific Information When Maintaining Electrical Components

    5.2.1 Specific information when maintaining electrical components Work on or with the electrical system may only be performed by VBK Covering B.V. and/or by suitably qualified and trained personnel. Always disconnect the power source from the machine when working on the electrical system.

  • Page 27: Disposal

    This seriously reduces the service life of the sheet. Disposal If the VBK STS sheeting system is removed, observe the waste disposal and processing regulations applicable at the place and time of removing the system. Widely known materials have been used in the machine.

  • Page 28: Remedying Malfunctions

    User manual for the VBK STS sheeting system Version STS-01 Remedying malfunctions If the sheeting system malfunctions, a number of aspects can be checked. Working of the wireless remote control Check if the handheld remote control is working by seeing if the control LED is lit. If you press the ON button to switch on the handheld remote control, a green LED will light up on the hand-held to indicate that it is on.
  • Page 29 User manual for the VBK STS sheeting system Version STS-01 Working of the changeover relay and motor The changeover relay/module has a red LED on the front. This LED indicates the status of the sheeting system by flashing. If the LED does not flash, the system is working normally. If the LED flashes, there is a problem with the system.

  • Page 30: Markings On The Machine

    User manual for the VBK STS sheeting system Version STS-01 MARKINGS ON THE MACHINE Type plate The type plate for the VBK STS sheeting system shows the following information ( figure 3): CE mark : CE name : VBK Covering...

  • Page 31: Mechanical Drawing

    User manual for the VBK STS sheeting system Version STS-01 MECHANICAL DRAWING The following drawing is enclosed with the user manual as Appendix C and D : Description: Layout drawing VBK STS sheeting system SPARE PARTS Spare parts must be replaced efficiently with original replacement parts.

  • Page 32: Appendix

    User manual for the VBK STS sheeting system Version STS-01 APPENDIX: The following appendices come after this page: A. Electrical diagram VR-STS Drawing number: Connection diagram STS_1 B. Electrical diagram VR-MAXX Drawing number: Electrical diagram VR-MAXX C. Layout drawing. VBK STS sheeting system D.
  • Page 33 F1=35A Teleradio PNS-R815-T1365 covering OPEN CLOSE Green Brown White 24V DC BAT+ BAT+ Black Black M1.1 SCALE: POSITION: QUANTITY: PROJ. MATERIAL: GENERAL TOLERANCES ACCORDING TREATMENT: TO ISO 2768-MK Elektrical diagram VR-STS SURFACE ROUGHNESS ACCORDING TO ISO 2632 BREAK SHARP EDGES REMOVE BURS DATE NAME...
  • Page 34 SCALE: POSITION: QUANTITY: PROJ. MATERIAL: GENERAL TOLERANCES ACCORDING TREATMENT: TO ISO 2768-MK Electrical diagram VR-MAXX SURFACE ROUGHNESS ACCORDING TO ISO 2632 BREAK SHARP EDGES REMOVE BURS DATE NAME Electrical diagram VR-MAXX DRAWN 19-04-2018 CHECKED PROJECT...
  • Page 35 1:25 LASER: THICKNESS: PROJ. MATERIAL: MASS (KG): GENERAL TOLERANCES ACCORDING TO ISO 2768-MK TREATMENT: VBK Covering SURFACE ROUGHNESS ACCORDING TO ISO 2632 FILE NAME: postbus 281 5750 AG Deurne Netherlands BREAK SHARP EDGES STS sheeting system Tel: +31 (0) 493-529559...
  • Page 36 SCALE: LASER: THICKNESS PROJ. MATERIAL: MASS (KG): GENERAL TOLERANCES ACCORDING TO ISO 2768-MK TREATMENT: VBK Covering SURFACE ROUGHNESS ACCORDING DESCRIPTION: TO ISO 2632 Postbus 281 5750 AG Deurne Netherlands SET BENDING ARM BREAK SHARP EDGES Tel: +31 (0) 493-529559 REMOVE BURS...
  • Page 37 THICKNESS PROJ. MATERIAL: MASS (KG): GENERAL TOLERANCES ACCORDING TO ISO 2768-MK TREATMENT: SURFACE ROUGHNESS ACCORDING VBK Covering DESCRIPTION: TO ISO 2632 postbus 281 5750 AG Deurne Netherlands Axle set up to 12345 mm BREAK SHARP EDGES Tel: +31 (0) 493-529559...
  • Page 38 1:25 LASER: THICKNESS: PROJ. MATERIAL: MASS (KG): GENERAL TOLERANCES ACCORDING TO ISO 2768-MK TREATMENT: VBK Covering SURFACE ROUGHNESS ACCORDING TO ISO 2632 FILE NAME: postbus 281 5750 AG Deurne Netherlands BREAK SHARP EDGES STS sheeting system Tel: +31 (0) 493-529559...
  • Page 39 SCALE: LASER: THICKNESS PROJ. MATERIAL: MASS (KG): GENERAL TOLERANCES ACCORDING TO ISO 2768-MK TREATMENT: VBK Covering SURFACE ROUGHNESS ACCORDING DESCRIPTION: TO ISO 2632 Postbus 281 5750 AG Deurne Netherlands SET BENDING ARM BREAK SHARP EDGES Tel: +31 (0) 493-529559 REMOVE BURS...
  • Page 40 1:30 LASER: THICKNESS: PROJ. MATERIAL: MASS (KG): GENERAL TOLERANCES ACCORDING TO ISO 2768-MK TREATMENT: VBK Covering SURFACE ROUGHNESS ACCORDING TO ISO 2632 FILE NAME: postbus 281 5750 AG Deurne Netherlands BREAK SHARP EDGES Tel: +31 (0) 493-529559 REMOVE BURS Fax:+31 (0) 84-7196527...
  • Page 41 THICKNESS: PROJ. MATERIAL: SEE PART LIST MASS (KG): GENERAL TOLERANCES ACCORDING TO ISO 2768-MK TREATMENT: VBK Covering SURFACE ROUGHNESS ACCORDING TO ISO 2632 FILE NAME: Postbus 281 5750 AG Deurne Netherlands BREAK SHARP EDGES Set VR-MAXX Tel: +31 (0) 493-529559...
  • Page 42 Doctor Huub van Doorneweg 22 5753 PM Deurne +31 (0)493 529 559 info@vbkcovering.nl www.vbkcovering.nl...
