Summary of Contents for jcb 21-18VAC

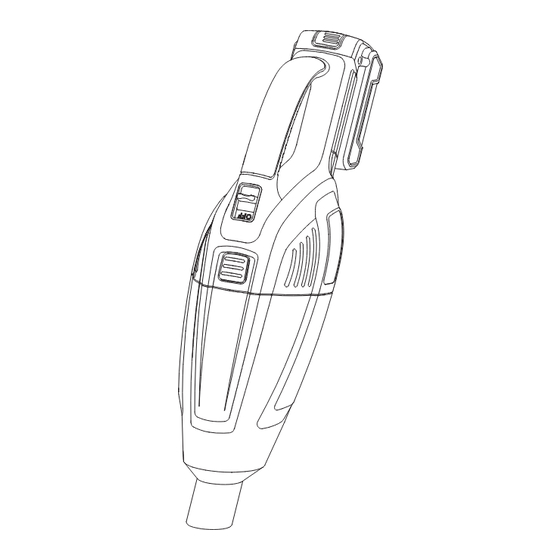

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL 21-18VAC Original Instructions IM-18VAC-EN Iss: 09/2021...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. 21-18VAC Designation of the tool (18 - 18Vdc, VAC - Vacuum Cleaner) 21-18VAC Instruction & User Manual...
-
Page 3: Table Of Contents
COMPONENT LIST TOOL TECHNICAL DATA BATTERY TECHNICAL DATA CHARGER TECHNICAL DATA OPERATING INSTRUCTIONS Intended Use ON/OFF SWITCH BATTERY AND CHARGER OPERATING INSTRUCTIONS 13 MAINTENANCE Transport and Storage WARRANTY STATEMENT Terms and Conditions EU/UK DECLARATION OF CONFORMITY 21-18VAC Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 21-18VAC Instruction & User Manual... -
Page 5: Power Tool Use And Care
Use of any other accessories, or storing power tools. Such battery packs may create a risk of injury and fire. preventive safety measures reduce the risk of starting the power tool accidentally. 21-18VAC Instruction & User Manual... -
Page 6: Service
This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. 21-18VAC Instruction & User Manual... -
Page 7: Safety Warnings Common For Vacuuming
Take extra care when cleaning steps. Items supplied Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your 21-18VAC Instruction & User Manual... -
Page 8: Charger Safety
CHARGER SAFETY JCB chargers are designed to WARNING! operate on standard household supply voltages. Check the rating Read all safety warnings, instructions plate of the charger matches your and specifications provided with the local supply voltage. (Note: the dual charger. Failure to follow all instructions... -
Page 9: Component List
LONG CREVICE TOOL CHARGER* - refer to page 11 for further SWIVEL FLOOR BRUSH TOOL information EXTENSION PIPE BATTERY PACK* - refer to page 11 for further information. FILTER BATTERY TEST BUTTON AND *If applicable CHARGE INDICATOR* 21-18VAC Instruction & User Manual... - Page 10 Fig. 3 Fig. 5 Fig. 4 21-18VAC Instruction & User Manual...
-
Page 11: Tool Technical Data
CHARGER TECHNICAL DATA Charger Code Input Data Output Data 21-18VFC AC 220-240V, 50-60Hz, 70W 14.4 -18V d.c. 2.4A 21-18VSFC AC 220-240V, 50-60Hz, 105W 14.4 -18V d.c. 4.0A 21-18VDC AC 100-240V, 50-60Hz, 200W 20.5V d.c. 2 x 3.5A 21-18VAC Instruction & User Manual... -
Page 12: Operating Instructions
(3). You can then take the filter (14) out of the dust collector (3) (Fig. 3). The filter (14) must be completely taken apart to enable it to be thoroughly cleaned (Fig. 4). 21-18VAC Instruction & User Manual... -
Page 13: Battery And Charger Operating Instructions
Make sure the ON/OFF Switch slider (2) is Battery Charge Level not set to the ON position (I) when inserting or removing the battery. Use only JCB Green batteries: 21-20LI, 21-30-LI, 21-40LI and Battery Charge Status 21-50LI... -
Page 14: Maintenance
Brush inspection Always carry the power tool using the Brush inspection and replacement should purpose-designed handle. only be performed by an authorised JCB service centre. Ensure that the power tool is not at risk of tipping over or exposed to excessive... - Page 15 21-18VAC Instruction & User Manual...
-
Page 16: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE and UKCA mark and a visible serial number. -
Page 17: Terms And Conditions
Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools 3 Year Warranty excludes the following (where applicable): Components normally subject to wear such as carbon brushes. -
Page 18: Eu/Uk Declaration Of Conformity
UK Product Code No. JCB-18VAC-B, 21-18VAC-B DECLARATION: EU Product Code No. JCB-18VAC-B-E Factory Reference No. PLYL-60 Yellow and Black Tools Ltd. (T/A: JCB Tools) Name: IDENTIFICATION DETAILS OF Address: Unit 55 Romsey Industrial Estate, Greatbridge Road MANUFACTURER: Romsey, Hampshire SO51 0HR...
