Summary of Contents for Zmodell ZM-ESM-01

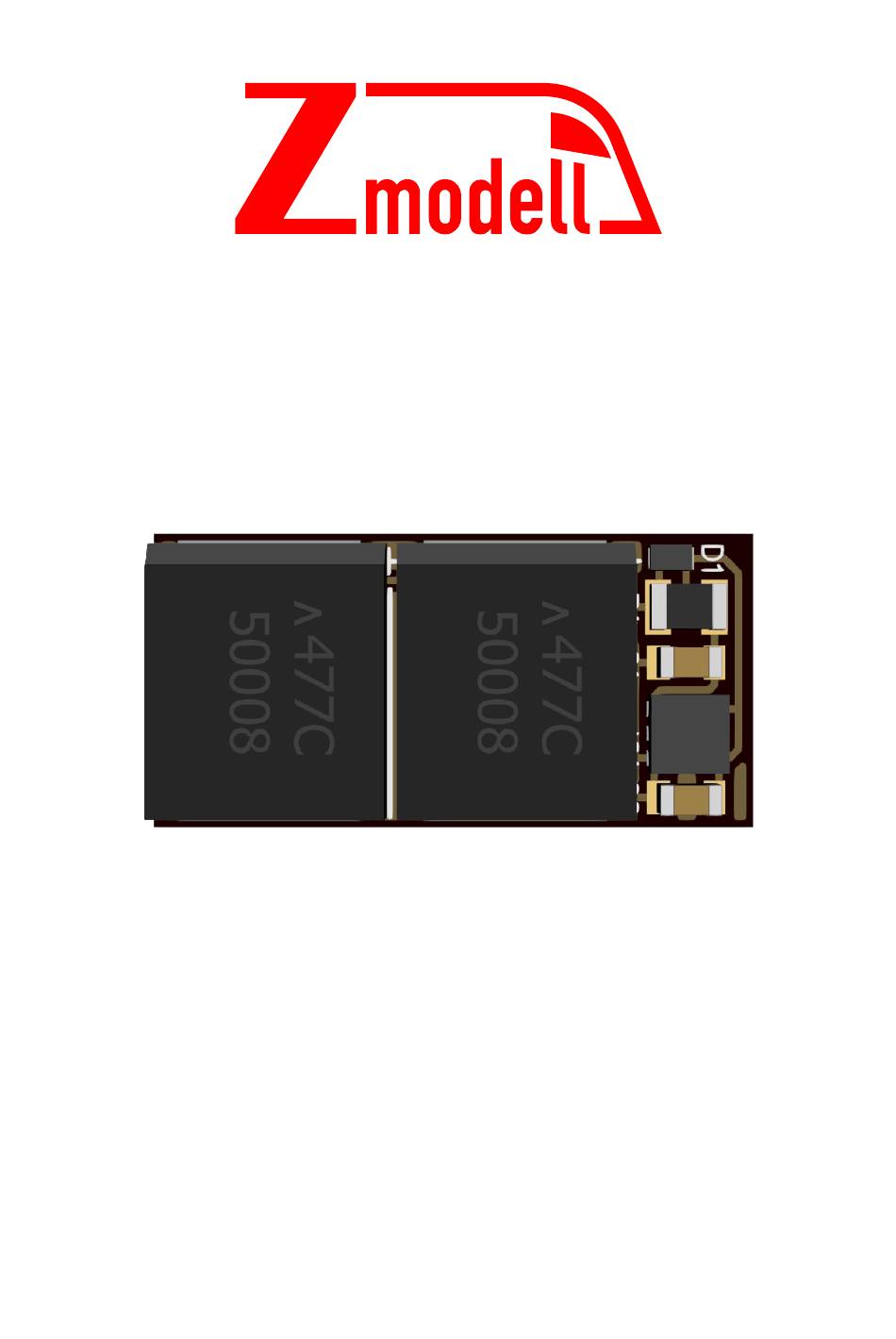

- Page 1 Energy Storage Module ZM-ESM-01 User’s Manual Ver. 1.05...
-
Page 2: Specifications
Top Side Bottom Side VS (+) GND (-) Specifications Dimensions (L x W x H): 16 x 7.8 x 4.5 mm Input: 30 V max, 100 mA Output: 14.5 V max, 400 mA Total capacity: 1880 µF Recommended for: Z and N scale Buffering time (estimated)*: - 0.3-0.5 seconds for locomotives with DC brushed motors - 0.5-1 seconds for locomotives with coreless motors... -
Page 3: Package Contents
Package contents ● 1x ZM-ESM-01 energy storage module with 100 mm color cables ● 2x 15 x 7.5 mm double sided stickers for mounting ● 1x User’s Manual Introduction ZM-ESM-01 energy storage module can be used with Zmodell ZM05A digital decoder, as well as with all decoders from other manufacturers which provide voltage supply (VS) and ground (GND) connection. -
Page 4: Installation
Connect the energy storage module to the digital decoder as shown on the following picture: Red wire Digital Decoder ZM-ESM-01 Black wire The black wire GND (-) coming from the energy storage module should be connected to GND pad of the digital decoder (otherwise indicated as “ground”, or “0V”). -
Page 5: Additional Information
Additional Information When using ZM-ESM-01 energy storage module with Doehler & Haass® and Zmodell digital decoders, the following settings should be applied: ● Doehler & Haass® digital decoders without sound, Zmodell ZM05A digital decoder: Energy saving mode should be deactivated by enabling CV 137 Bit 1 (set CV 137 = 2;... - Page 6 IMPORTANT: Soldering work required for installation of this device. Soldering iron with thin tip (1-1.5 mm) and good soldering skills needed for this. Energy Storage Module ZM-ESM-01 User’s Manual Ver. 1.05 Art. No: ZM-ESM-01 facebook.com/zmodelltrains Email: zmodell@ukr.net...
