Spitzer EWA Installation Manual

EWA
Emergency Wall Pack Advance
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to
power off. The electrical system you want to connect the device to must be grounded.
Read the instructions before using or powering this device. The safety instructions
must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make
sure that the current and voltage are compatible with this device. We highly recommend
that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by
any means for the use or misuse of the following information. We are NOT responsible in
whole or part for any harm or damage that may or may not be caused. We reserve the right
to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations
in equipment, nor do they provide every possible contingency to be met. Turn off / unplug
power when installing or service device.

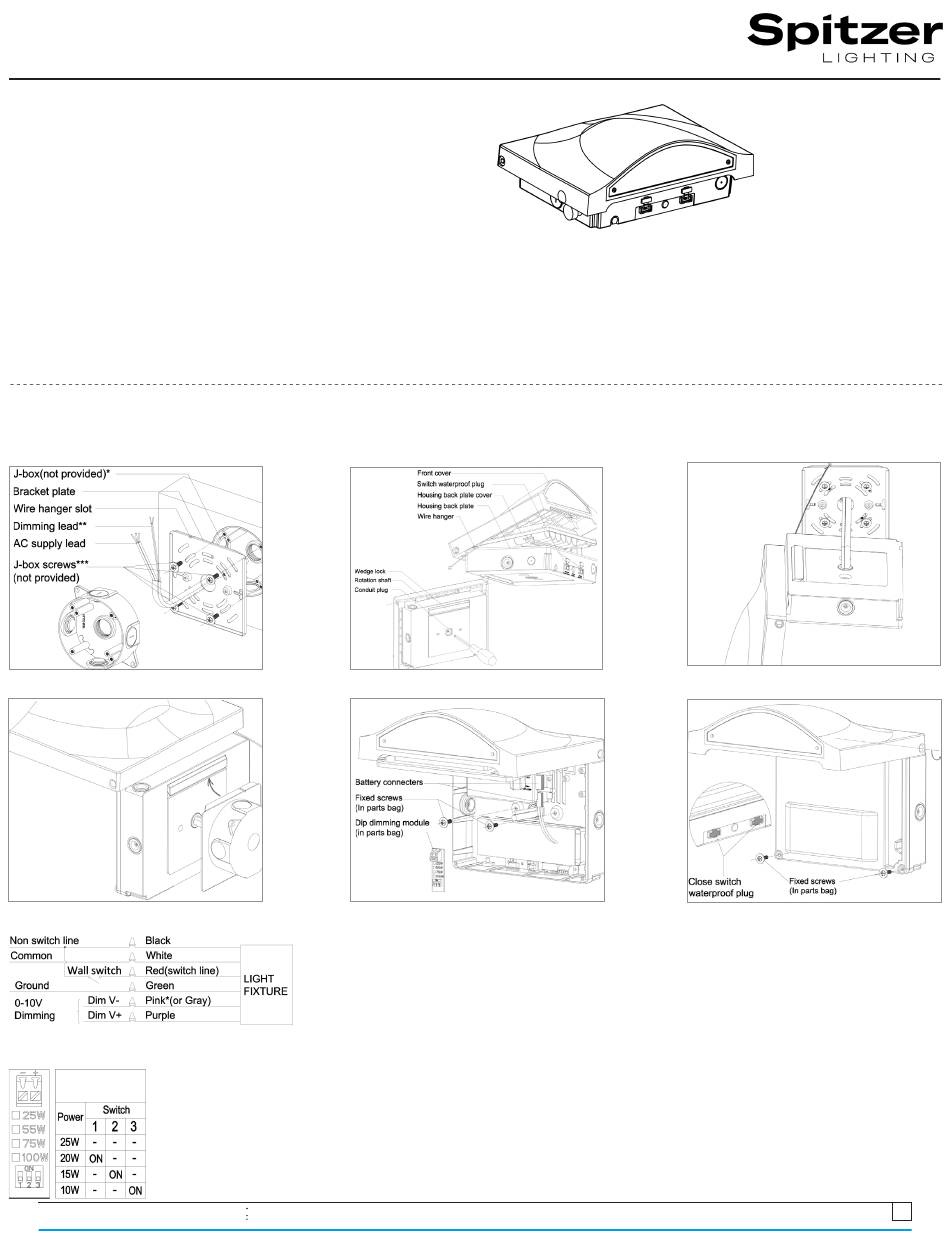

WALL MOUNT INSTALLATION
→Before beginning installation, turn off the circuit breaker
→FIGURE 1
→FIGURE 4
→FIGURE 7
→FIGURE 8
Power Selector
(EWA-32L)
702 Interchange Blvd, Newark DE 19711
→FIGURE 2
→FIGURE 5
1. Feed AC supply wires through bracket plate center hole, attach the bracket plate to junction box, bracket
plate must be mounted with hardware able to support a fixture weight of up to 30lbs (FIG 1)
2. Use screwdriver knock out the conduit plug, and adjust the front cover and housing back plate upward
to 90º (FIG 2) Hang the fixture from the bracket plate using the wire hanger. Feed AC supply leads through
conduit plug into the housing back plate(FIG 3)
3. Lift the fixture off the wire hanger and onto bracket plate. Ensure that AC supply leads are not pinched
between the bracket plate and the housing back plate (FIG 4) Use two screws to tighten the housing back
plate to the bracket plate (FIG 5)
4. Connect the fixture wires to AC power supply wires using the wire nuts provided (FIG 7)
5. Select the desired CCT (FIG 5) if need to adjust the power, connect the dip dimming module to dimming
wire (pink and purple) and toggle the switch 1/2/3 to different positions (FIG 8)
6. Fix the housing back plate cover by two screws, adjust the front cover to get different type distribution
(FIG 6)
7. For conduit wiring, remove side conduit plug, feed supply wires through conduit opening with a suitable
connector wire the housing leads to supply wires using UL listed wires connectors according to NEC and
local codes. Push all wires into the housing. Follow mounting instructions.
www.spitzerlighting.com
PRE. INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with package contents list and diagram on previous page. If any part is missing or
damaged, do not attempt to assemble, install or operate the product. Contact customer service for
replacement parts.
• Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape,
wire cutters, safety glasses, ladder, wire stripper.
Installation Manual
→FIGURE 3
→FIGURE 6
