6. Function and Control

Service Manual

6.1 Remote Controller Introduction

NOTE:
● This is a general use remote controller. It could be used for the air conditioner with multifunction. For the functions which the model
doesn't have, if press the corresponding button on the remote controller, the unit will keep the original running status.
● After putting through the power, the air conditioner will give out a sound. Operation indicator " " is ON. After that, you can operate
the air conditioner by using remote controller.
● Under on status, pressing the button on the remote controller, the signal icon "
and the air conditioner will give out a "di" sound, which means the signal has been sent to the air conditioner.
● As for the models with functions of WiFi or wired controller, the indoor unit must has been controlled by standard remote controller
under auto mode first, and then the function of adjustable temperature under auto mode can be realized by APP or the wired controller.
● This remote controller can adjust the temperature under auto mode. When matching with the unit which is without the function of
adjustable temperature under auto mode, the set temperature under auto mode may be invalid, or the displayed set temperature on
the unit is not same as that on the remote controller under auto mode.
I FEEL
LIGHT

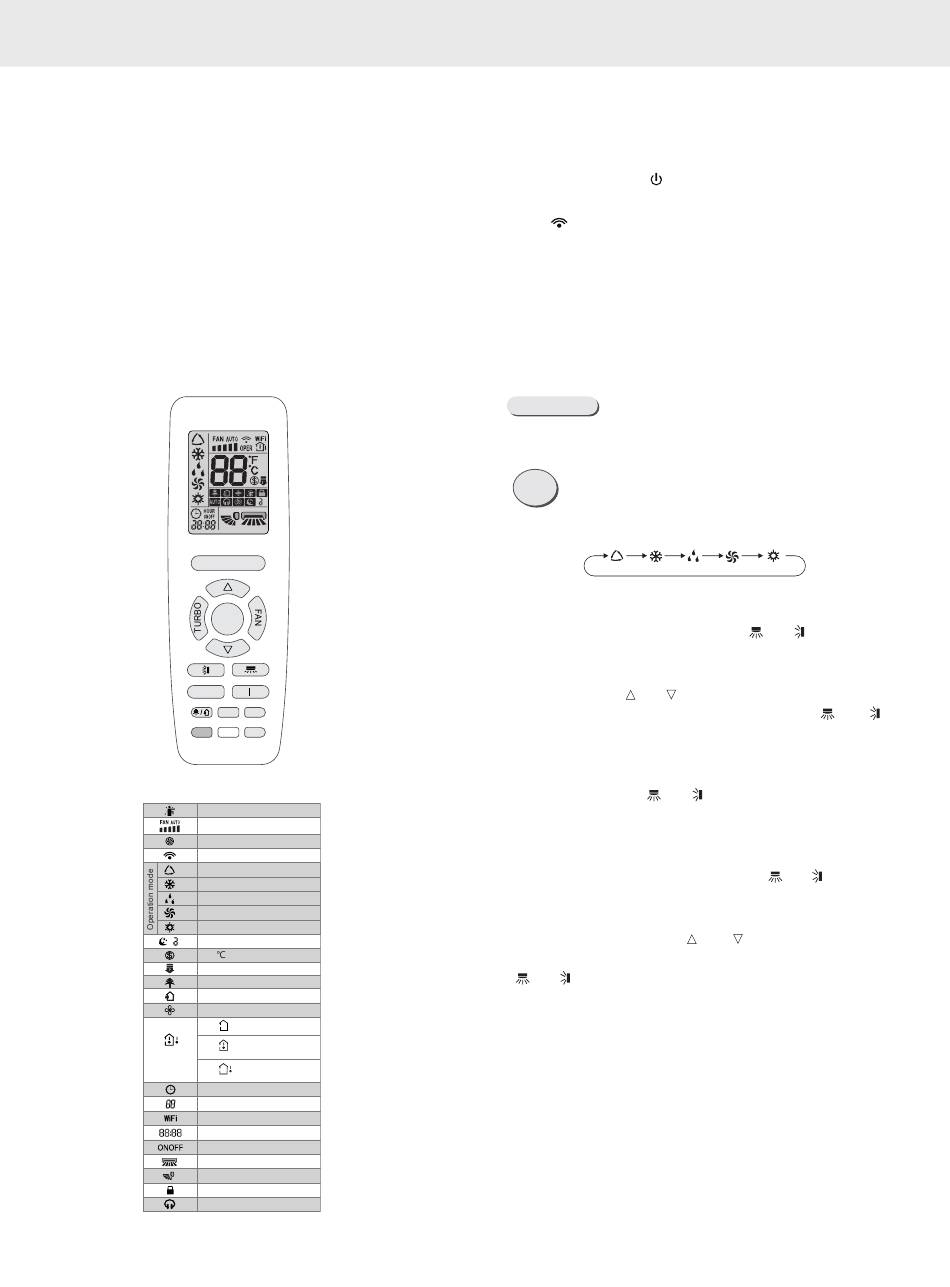

Introduction for icons on display screen
Power limiting operation
Temp.
display type
TIMER ON / TIMER OFF
ON/OFF
MODE
T-ON T-OFF
TEMP CLOCK
WiFi SLEEP
I feel
Set fan speed
Turbo mode
Send signal
Auto mode
Cool mode
Dry mode
Fan mode
Heat mode
Sleep mode
8 heating function
Health mode
Scavenging function
X-FAN function
Set temp.
Indoor ambient
temp.
Outdoor ambient
temp.
Clock
Set temperature
WiFi function
Set time
Left & right swing
Up & down swing
Child lock
Quiet
" on the display of remote controller will blink once
ON/OFF
Press this button to turn on the unit. Press this button again
to turn off the unit.
MODE
Press this button to select your required operation mode.
AUTO COOLD RY
● When selecting auto mode, air conditioner will operate
automatically according to ex-factory setting. Press "FAN"
button can adjust fan speed. Press " " / "
adjust fan blowing angle.
● After selecting cool mode, air conditioner will operate under
cool mode. Press " " or " " button to adjust set temperature.
Press "FAN" button to adjust fan speed. Press "
button to adjust fan blowing angle.
● When selecting dry mode, the air conditioner operates at
low speed under dry mode. Under dry mode, fan speed can'
t be adjusted. Press " " / "
angle.
● When selecting fan mode, the air conditioner will only blow
fan, no cooling and no heating. All indicators are OFF. Press
"FAN" button to adjust fan speed. Press "
adjust fan blowing angle.
● When selecting heating mode, the air conditioner operates
under heat mode. Press " " or " " button to adjust set
temperature. Press "FAN" button to adjust fan speed. Press
" " / " " button to adjust fan blowing angle. (Cooling only
unit won't receive heating mode signal. If setting heat mode
with remote controller, press ON/OFF button can't start up
the unit).
NOTE:
● For preventing cold air, after starting up heating mode,
indoor unit will delay 1~5 minutes to blow air (actual delay
time is depend on indoor ambient temperature).
FAN HEAT
" button can
" / " "
" button to adjust fan blowing
" / " " button to
