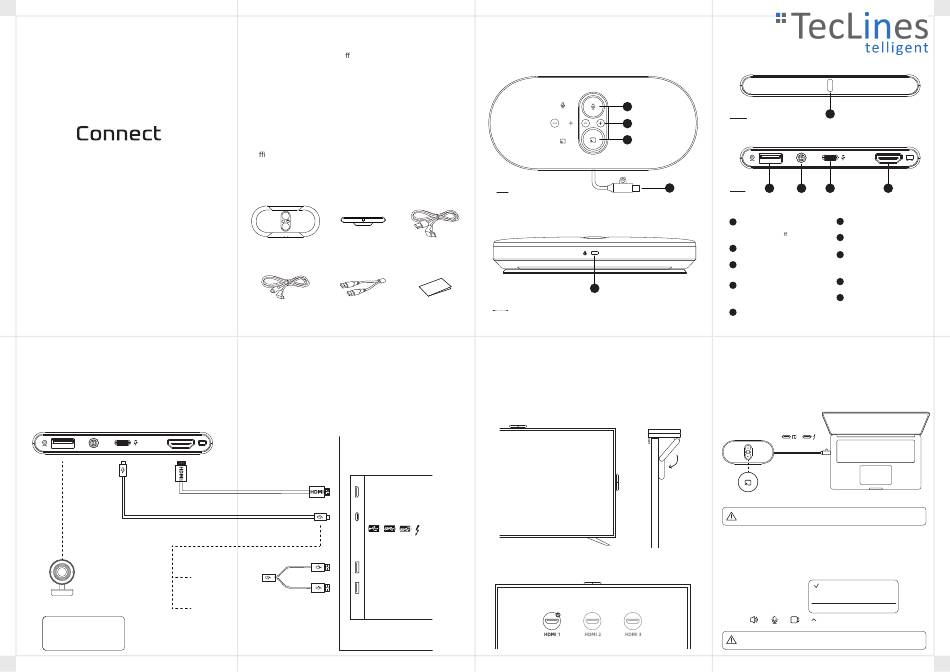

TecLines TCV001 Quick Start Manual

Wireless Conferencing System
Quick Start Guide
Getting Started with Connect
(1) Connect the RX100 receiver to the display using the power cable and HDMI cable. If the display does not have a Type-C port to
support power more than 5V/2A, use the included switch cable to convert it into two USB-A connectors. One of the USB-A connectors
should be USB3.0, which can supply power for the receiver. Alternatively, you can connect the Type-C cable to a power adapter (not
included in the package).
(2) To connect a USB webcam, plug the camera's USB cable into the USB-A port on the receiver.
Switch Cable (Type C-A)
USB Camera
USB-C Power Adapter (not included)
For the list about compatible
USB webcams,please contact
the distributor or dealer
in your area.
Connect
is an all-in-one wireless conferencing system
designed to simplify your meetings. With full BYOD
support, it allows you to e ortlessly connect your laptop
to the speakerphone using a single cable. Enjoy 4K
wireless screen casting, access to conference camera
streaming in 1080P , and the convenience of plug-and-play
functionality without the need for software or drivers.
Connect streamlines your conferencing experience,
eliminates cable clutter, and ensures secure and
e cient collaboration.
Package Contents
Speakerphone Receiver
(ST100) (RX100)
Power Cable Switch Cable
(Type C-C) (Type C-A)
HDMI Cable
HDMI IN
Power Cable
USB-C Port
support power delivery (>5V2A)
USB 3.0
+
USB 2.0
Overview
ST100
Top
HDMI Cable
e
Back
Quick
Start Guide
(2) Mount the receiver RX100 on the display using the built-in
mounting clip. Ensure that the receiver is positioned towards
the front side for optimal wireless signal transmission. The
optimal wireless transmission range is within 5 meters.
(3) Switch the display output source to the connected HDMI port.
RX100
a
Front
b
c
g
d h
Back
a Mic Mute
Green light : Mic On
Red light : Mic o
b Speaker Volume
c Screencast
Press to start/end screencasting
d Type C cable to laptop
For power supply and
signal transmission
e Kensington Nano Slot
(4) Connect the speakerphone ST100 to a full-featured Type-C port
on your laptop. Wait until the screencasting button light turns green,
then press the button to start casting your screen. Press the button
again to pause screencasting.
USB-C port
Press to start
screencasting
Ensure USB Type-C port support DP alt mode, please check the table
on the back for more information.
(5) To use the speakerphone ST100 and access the camera wirelessly,
in your video conference software, select "Connect Video Device"
as your microphone, speaker, and camera.
"Connect Video Device" option is only available in the camera device
list when a camera is connected to the receiver.
f
i j
Status Indicator
f
g
USB Interface for camera
Language / Pair
h
Short press : switch language
Long press : Re-pair
Power Supply
i
j HDMI Out for display
Connect Video Device
Integrated Camera
Video Setting...
