Omnidirectional Microphone with Bottom Port and Analog Output

GENERAL DESCRIPTION

*
The ADMP404
is a high-quality, high-performance, low-
power, analog-output bottom-ported omnidirectional MEMS
microphone. The ADMP404 consists of a MEMS microphone
element, an impedance converter, and an output amplifier.
The ADMP404 sensitivity specification makes it an excellent
choice for near-field applications. The ADMP404 has a
wideband frequency response, resulting in natural sound with
high intelligibility. Its low current consumption enables long
battery life for portable applications.
The ADMP404 complies with the TIA-920
Telecommunications Telephone Terminal Equipment
Transmission Requirements for Wideband Digital Wireline
Telephones standard.
The ADMP404 is available in a miniature 3.35 ×
2.50 × 0.88 mm surface-mount package. It is reflow solder
compatible with no sensitivity degradation. The ADMP404 is
halide free.
*Protected by U.S. Patents 7,449,356; 7,825,484; 7,885,423; and 7,961,897.
Other patents are pending.

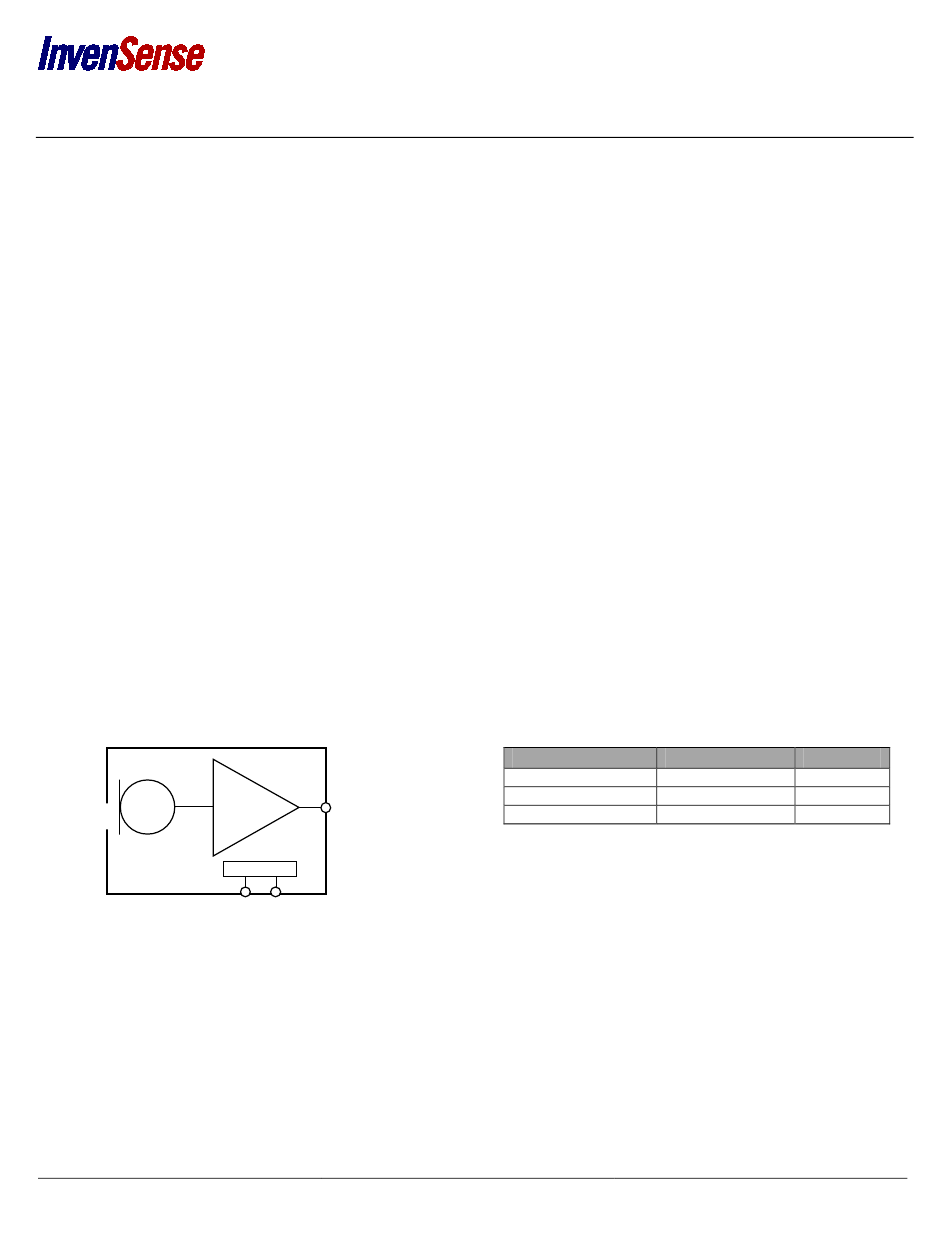

FUNCTIONAL BLOCK DIAGRAM

ADMP404
InvenSense reserves the right to change the detail
specifications as may be required to permit
improvements in the design of its products.
OUTPUT
OUTPUT
AMPLIFIER
POWER
VDD GND
1745 Technology Drive, San Jose, CA 95110 U.S.A

APPLICATIONS

•
Mobile Devices
•
Teleconferencing Systems
•
Headsets
•
Security Panels
•
Intercom Devices

FEATURES

•
3.35 × 2.50 × 0.88 mm Surface-Mount Package
•
SNR of 62 dBA
•
Sensitivity of −38 dBV
•
Flat Frequency Response from 100 Hz to 15 kHz
•
Low Current Consumption: <250 µA
•
Single-Ended Analog Output
•
High PSR of 70 dB
•
Compatible with Sn/Pb and Pb-free Solder Processes
•
RoHS/WEEE Compliant

ORDERING INFORMATION

PART
ADMP404ACEZ-RL
ADMP404ACEZ-RL7
EVAL-ADMP404Z-FLEX
* – 13" Tape and Reel
InvenSense Inc.
+1(408) 988–7339
www.invensense.com
ADMP404
TEMP RANGE
−40°C to +85°C*
−40°C to +85°C†
—
† – 7" Tape and Reel
Document Number: DS-ADMP404-00
Revision: 1.0.
Release Date: Preliminary 11/20/2013
PACKAGE
CE-3-2
CE-3-2
—
