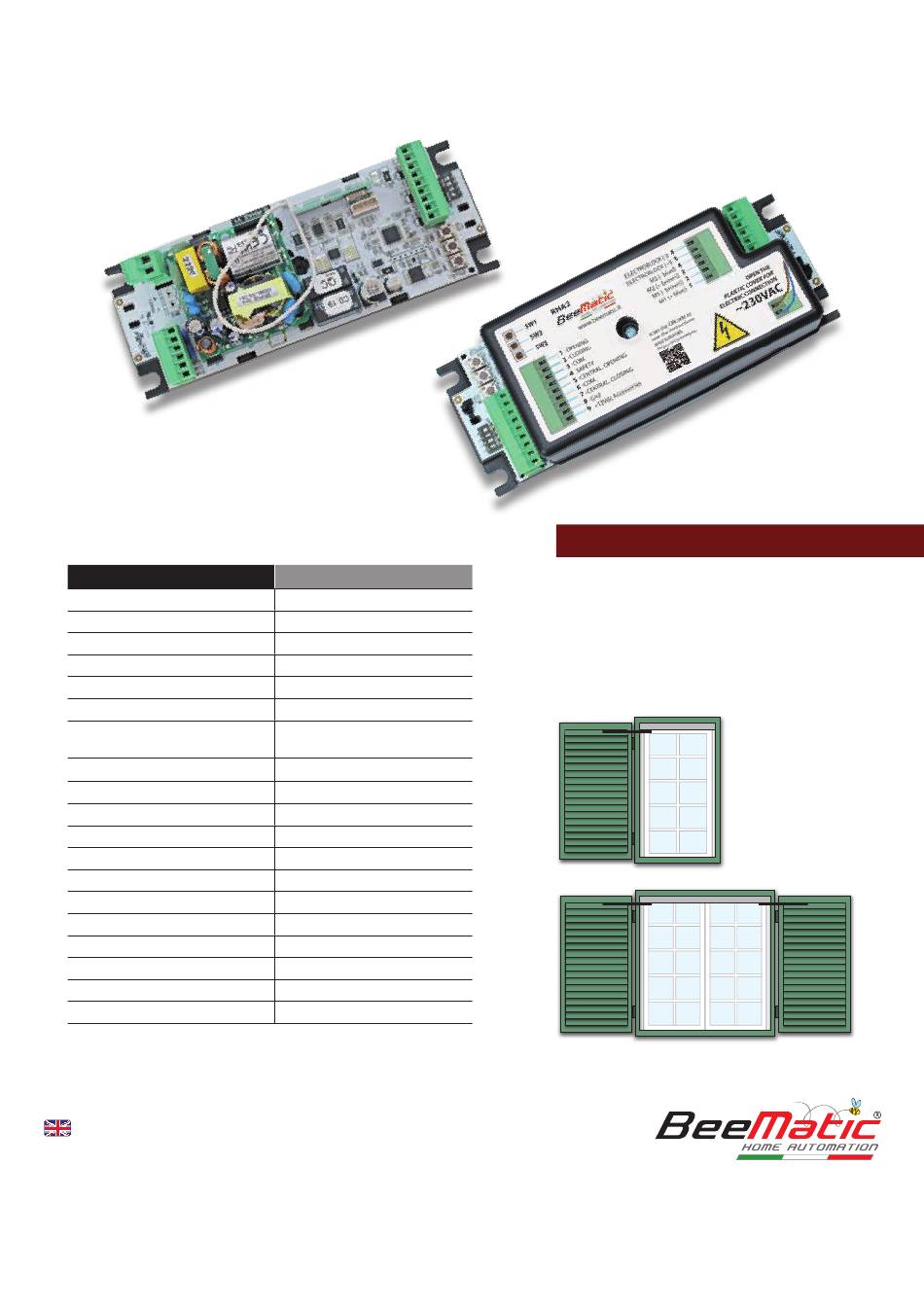

CONTROL UNIT
FOR HINGED SHUTTERS
RHA2
Description
Power supply
Power
Power consumption
Control unit power
Motor power supply
Motor absorption
Energy saving
Radio frequency
Number of motors
Torque / Thrust
Operating temperature
Degree of protection
Storable remote controls
ODS - Obstacle detection
Opening command
Closing command
Dead man command
Centralized opening command
Centralized closing command
USER MANUAL
RHA-00089 - rev.0 of 09/2023
RHA2
230 Vac / 50-60Hz
45W max
0,05 A Standby
12 Vdc
12 Vdc / 1,4 A
1,7 A max
reduced consumption in stand-
by and during use
integrated, frequency 433 MHz
1 or 2
35 Nm
-20 ÷ 55°C
IP20
100
Yes
Yes
Yes
Yes
Yes
Yes
TYPE OF INSTALLATION
HINGED SHUTTER (single/double)
• One or two motors (single sash/double shutter);
in case of double sash, the operation of one mo-
tor is delayed with respect to the other, accord-
ing to the opening/closing phase (to handle the
over/under shutter condition)
• Optional electro lock
BEEMATIC is a registered trademark owned by
info@abtecno.com - www.abtecno.com
AB Tecno Srl
Via Cicogna 95 - 40068
San Lazzaro di Savena (BO)
Tel. +39 051 6259580
Advertisement
Table of Contents
Summary of Contents for AB Tecno BEEMATIC RHA2
- Page 1 Dead man command Centralized opening command Centralized closing command USER MANUAL BEEMATIC is a registered trademark owned by AB Tecno Srl Via Cicogna 95 - 40068 San Lazzaro di Savena (BO) Tel. +39 051 6259580 info@abtecno.com - www.abtecno.com RHA-00089 - rev.0 of 09/2023...
-
Page 2: Table Of Contents
USER MANUAL - CONTROL UNIT FOR HINGED SHUTTERS - RHA2 SUMMARY chapter page GENERAL SAFETY WARNINGS ELECTRICAL CONNECTIONS AND BUTTONS DIP SWITCH CONFIGURATION SETTING BUTTONS TERMINAL BLOCK CONNECTIONS LED SIGNALS INPUT FEATURES AND OPERATION LOGIC INSTALLATION SET UP SLOWDOWN ADJUSTMENT LIMIT SWITCH ADJUSTMENT MAXIMUM TORQUE/CURRENT SETTING “WINDPROOF/DEAD MAN OPERATION”... -
Page 3: General Safety Warnings
5. Materials used for packaging should not be left within the 19. AB Tecno Srl disclaims any responsibility related to safety reach of children, as they are potential sources of danger, and proper operation of the automation, in case of use of and should be properly recicled. -
Page 4: Electrical Connections And Buttons
USER MANUAL - CONTROL UNIT FOR HINGED SHUTTERS - RHA2 ELECTRICAL CONNECTIONS AND BUTTONS DIP SWITCH CONFIGURATION Carry out the position function setting of the Single motor operation dip-switches when Two-motor operation the control unit Logic Open/Close is NOT POWERED Step-by-step logic Door Delay DISABLED Door Delay ENABLED... -
Page 5: Led Signals
USER MANUAL - CONTROL UNIT FOR HINGED SHUTTERS - RHA2 LED SIGNALS colour function Green Motor 1 running Yellow Motor 2 running XXXXXX__ STANDARD flashing > Long every 0.8s X______ Safety active > Short blinking every 0.8s Flashing phases of SETUP COMMANDS X_X____ (SW3) >... -
Page 6: Input Features And Operation Logic
USER MANUAL - CONTROL UNIT FOR HINGED SHUTTERS - RHA2 INPUT FEATURES AND OPERATION LOGIC OPENING CLOSING In the case of safeties COM. SAFETY not installed, jumper CENTRAL. OPENING terminals 3 and 4 COM. CENTRAL. CLOSING +12Vdc Accessories INPUT FEATURES OPERATION LOGIC (1) OPENING “STEP-BY-STEP”... -
Page 7: Slowdown Adjustment
USER MANUAL - CONTROL UNIT FOR HINGED SHUTTERS - RHA2 SLOWDOWN ADJUSTMENT • System on, red LED with standard flashing – • Press SW1 for at least 4 seconds • Red LED with mechanical set up flashing L-L------L a) Press SW2 enable or disable SLOW DOWN process, each press changes one of the 2 possibilities: »... -
Page 8: Air Exchange" Function
USER MANUAL - CONTROL UNIT FOR HINGED SHUTTERS - RHA2 “AIR CHANGE” FUNCTION This function (present in control units with software version E0.00 and later) allows the 2 leaves to be pulled together to have air exchange, even if the leaf delay (DIP3-ON) has been set. It is necessary to have performed limit switch learning during installation (see p.7).
