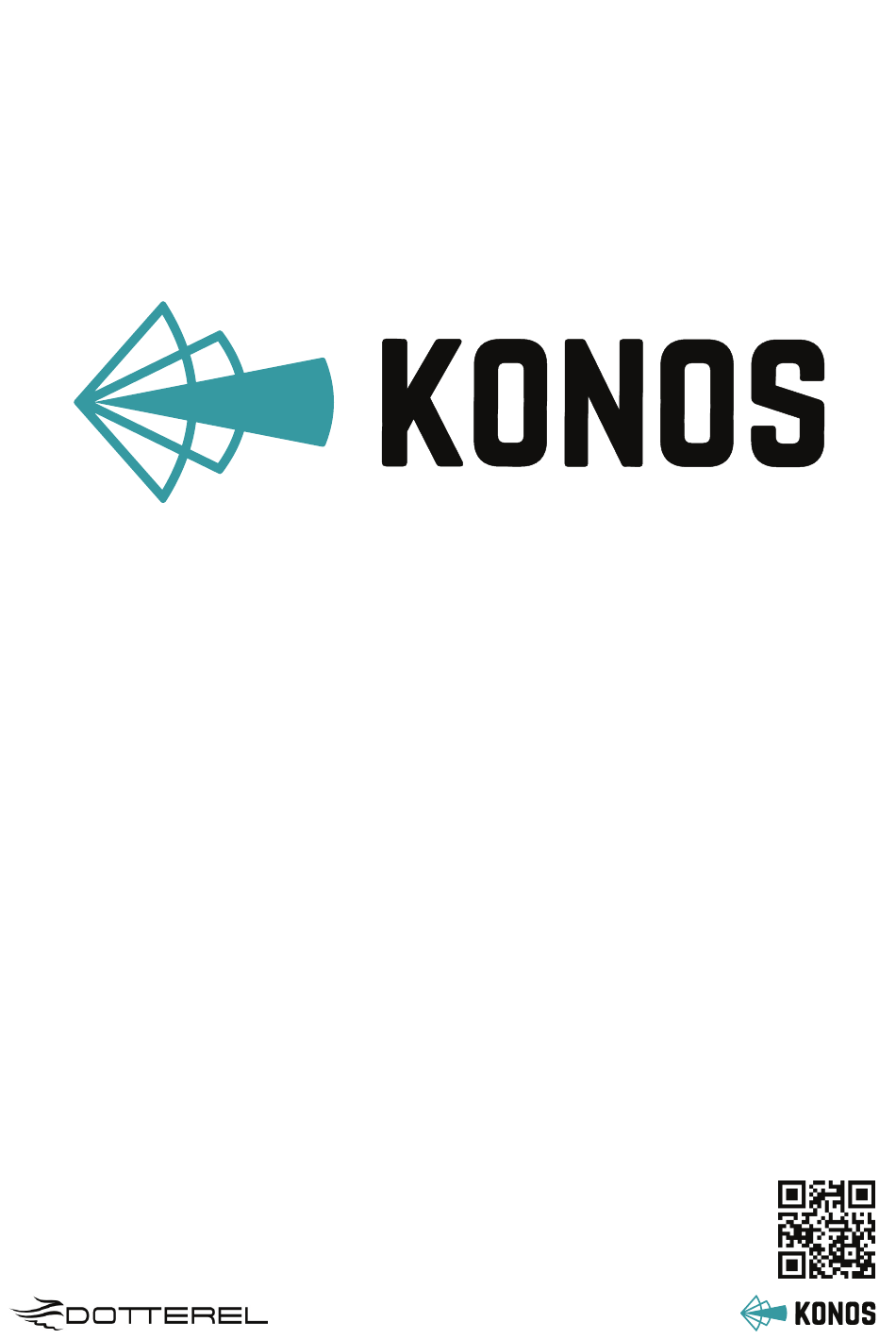

- Page 1 SLIM PRODUCT USER GUIDE Version 1.0|Aug 2023...
-
Page 3: Before You Start
Before you start To make sure you have a wonderful experience with Konos, please check that you have been sent a complete product: Konos microphone Processor box Shock mount Foam windsock 3 x Mini-XLR (TA3F) to XLR Cat 5 cable 15 Vdc power supply w/ TA4F USB-C to TA4F adapter Optional accessories... - Page 4 Processor Box & Microphone Main beam (TA3M) Complement beam (TA3M) Konos Select (TA3M) Microphone R J 4 5 port in processor box TA4M 12-18V Beam selector switch LED status indicator Power button Microphone array Microphone RJ45 port Beam width TA3M Pins Pin 1: Ground Narrow (60°)
-
Page 5: Power Supply
Power supply The microphone is powered by 12-18V DC power through the TA4 connector on the front of the processor box (Pin 1 = ground, pin 4 = positive). An external USB Type-C to TA4F is provided which can be used to power Konos from a USB PD 3.0 compatible source such as a power-bank or a wall supply. -
Page 6: Led Status Indicator
4 . P l u g a n a u d i o recording device into one of the X L R p o r t s o n t h e processor box and test. If there is sound output, then your Konos microphone is working. - Page 7 How Konos works Konos uses an array of MEMS microphones with intelligent processing to filter out off-axis noise efficiently and maintain excellent directivity in long ranges. We provide options of directivity at 60°, 100° and 180°. The following polar plots show tight pick-up at these angles.
-
Page 8: Specifications
Specifications Transducer 80 elem ent MEMS mic array Frequency response 50Hz – 20,000 Hz 3 × TA3M mic level: Audio output Front, complement and Konos Select Sensitivity 35 mV/Pa Equivalent noise 25 dB-A/ 34 dB-CCIR Max SPL (THD <0.5%) 117 dB 12-18 Vdc TA4M Power Wa t t a g e... -
Page 9: Safety And Maintenance
Safety and maintenance • Caution: Do not plug the ethernet cable from the processor box’s ethernet port into any other device other than the microphone. This port is meant only to connect the microphone to the processor box. Connecting the processor box to any other device may damage both devices. - Page 10 Dotterel Technologies Ltd. Konos and Dotterel are trademarks or registered trademarks of Dotterel Technologies Ltd.in New Zealand and/or other countries ©2015-2023 Dotterel Technologies Ltd. All rights reserved.
