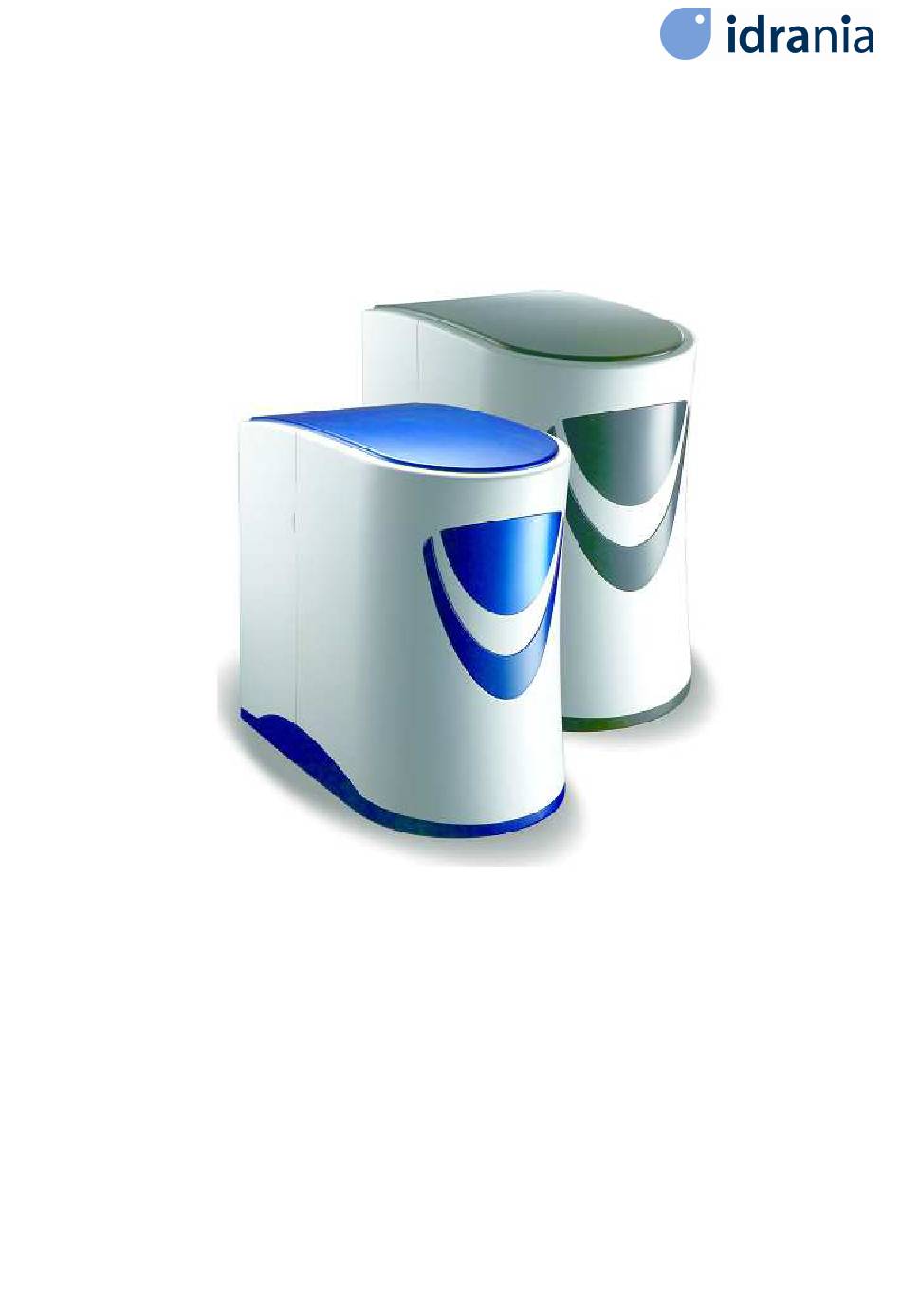

Reverse Osmosis System
CONTENS
INFORMATION ABOUT THE EQUIPMENT _________________________________________________ 2
FUNTION OF FILTER MATERIAL__________________________________________________________ 3
DESCRIPTION ___________________________________________________________________________ 4
INSTALLATION OF RO WATER PURIFIER _________________________________________________ 7
SPARE PARTS ___________________________________________________________________________ 10
BREAKDOWN REASONS & REMOVING ___________________________________________________ 11
Page 1 / 11
Advertisement
Table of Contents
Summary of Contents for idrania IDRAPURE COMPACT
-
Page 1: Table Of Contents
Reverse Osmosis System CONTENS INFORMATION ABOUT THE EQUIPMENT _________________________________________________ 2 FUNTION OF FILTER MATERIAL__________________________________________________________ 3 DESCRIPTION ___________________________________________________________________________ 4 INSTALLATION OF RO WATER PURIFIER _________________________________________________ 7 SPARE PARTS ___________________________________________________________________________ 10 BREAKDOWN REASONS & REMOVING ___________________________________________________ 11 Page 1 / 11... -
Page 2: Information About The Equipment
INFORMATION ABOUT THE EQUIPMENT This Drinking Water System is a water treatment unit. It uses water pressure to reverse a natural physical process called osmosis. Water, under pressure, is forced through a semi-permeable membrane to filter out minerals and impurities. Clean drinking water goes to the faucet. -
Page 3: Funtion Of Filter Material
FUNTION OF FILTER MATERIAL Cartridge Filters Filter Description P.P. 5 MICRON – In-line Sediment Filter Cartridge - Ø2 ½”Quick Connection Sediment, Dirt and Rust Removal Remove sand, silt, mud, rust, corrosive, alga, floats and improve turbidity in the water. Code: 45401 Time Limit: 6 mouths GAC - In-line Granular Activated Carbon Filter Cartridge - Ø2 ½”... -
Page 4: Description
DESCRIPTION RO diagram (purifier without pump): TAP WATER WATER PERMEATE REJECT ACTIVATED SEDIMENT ACTIVATED CARBON FILTER FILTER CARBON FILTER RO MEMBRANE DRAIN SHUT-OFF VALVE FLUSHING VALVE FAUCET STORAGE TANK ACTIVATED CARBON POST FILTER Page 4 / 11 Rev.: 1105 / VP... - Page 5 RO diagram (purifier with pump): TAP WATER WATER PERMEATE REJECT Minimum PRESSURE pressure switch ACTIVATED SEDIMENT PUMP ACTIVATED CARBON FILTER FILTER CARBON FILTER RO MEMBRANE FLUSHING SHUT-OFF VALVE VALVE Maximum pressure switch FAUCET STORAGE TANK ACTIVATED CARBON POST FILTER Page 5 / 11 Rev.: 1105 / VP...
- Page 6 RO Operation: Tap water passes through the pre-treatment stage that includes a sediment filter and two de-chlorination cartridges. Then, the water is driven to the reverse osmosis membrane, where it is purified. You get a rejected water flow that is sent to the drain and an osmotic pure water flow that is storaged in the tank When you open the tap water dispenser, the water comes out from the storage tank going through an activated carbon post-filter that removes bad tastes and odour that...
-
Page 7: Installation Of Ro Water Purifier
INSTALLATION OF RO WATER PURIFIER Before installing the RO system: The water coming into the system must be within certain limits for sediments, pressure, etc. Refer to the specifications to determinate if you installation is within the limits. NOTE: drinking water applications only,... - Page 8 e. Remove Clip from the fitting. f. Pull out the stem of the fitting from filter by press the collet g. Unscrew the cap from membrane housing. h. Place membrane into the housing and push by hand until appropriate location. 3.
- Page 9 7. According to the labels in the rear cover of the system, make de tubing connections. For optimal system performance, it is recommend using tubing lengths that are as short as possible. 8. Finish the installation, and after water and power on: a.
-
Page 10: Spare Parts
SPARE PARTS Part list: 1. 12” x 2½” In-line filter 5µ PP 2. Low pressure (purifier with pump) 3. Solenoid Valve (purifier with pump) 4. 12” x 2½” In-line filter GAC 5. 10” x 2” In-line filter Carbon Granule 6. Pump (purifier with pump) 7. -
Page 11: Breakdown Reasons & Removing
BREAKDOWN REASONS & REMOVING Breakdown Condition Breakdown Reasons Resolution - Check feeding switch on. - Check switch of water tank 1. Water stopping or water - Check power. pressure too low - Remove the plug of power R.O. Systems not running 2.
