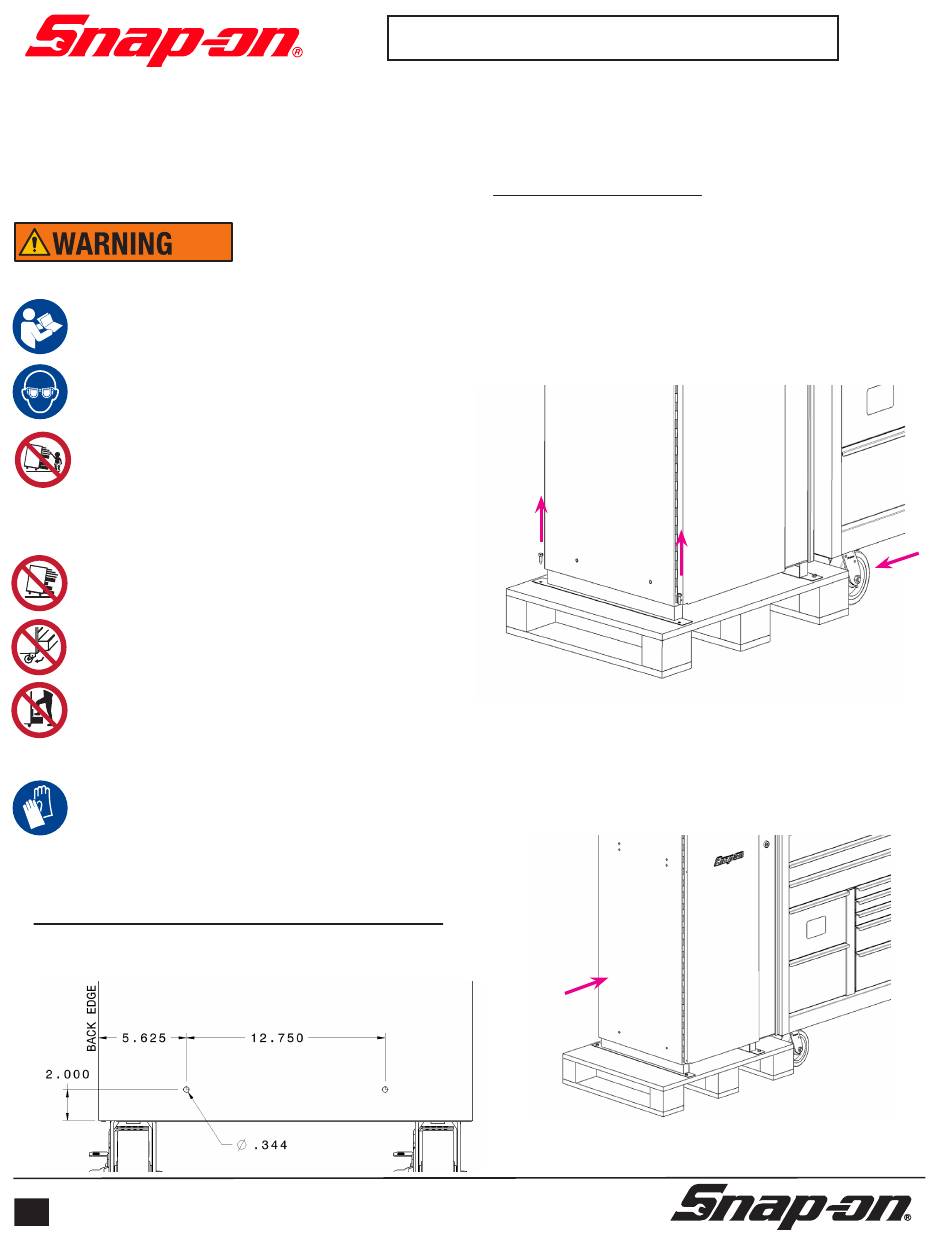

Snap-On KRA1403 Assembly Instructions

IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operation instructions
for the powered end cab tool storage units. Refer to this
information often for safe usage and operation.
SAVE THESE INSTRUCTIONS
When using electric products, basic precautions should always
be followed, including the following:
Improper assembly can cause broken parts
Read all instructions before using or assembling
Broken parts can cause injury
Particles may fly during assembly
Wear safety goggles. (User and bystanders)
Flying particles can cause eye injury
To reduce the risk of injury, close supervision is necessary when
this product will be used around children
Keep children away
Unsupervised children can be injured
To reduce the risk of injury, never overload drawers or shelves
Refer to loading instructions
Overloaded shelves can cause injury or damage
Units can tip or strike you
• Do not open more than one loaded drawer at a time
• Do not force open a drawer kept closed by drawer
control slide
• Close lid and lock drawers before moving
• Apply brakes on locking casters when not moving unit
• Do not open any drawer with swivel caster positioned
inward
• Do not step in or on drawers
• Secure units together with fasteners
• Disconnect or unplug all power cord and cable assem-
blies before moving unit
Tipping of storage unit or unit striking you can cause injury
Component edges can cut or pinch
• Wear gloves when removing and installing components
into power drawer
• Keep fingers clear of edges when working near or with
sheet metal components
• Keep hands and fingers clear of prybar or sharp objects
Units' edges or components can cause injury
Drilling mounting Holes in an Older Roll Cab
1. Using an 11/32" drill bit drill two mounting holes in the side
of the roll cab as shown.
14
1
ZKRA1403
KRA1403 Assembly Instructions
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
Align Locker to Roll Cab Align Locker to Roll Cab
Refer to Fig. 1 Refer to Fig. 1
1. 1. Align locker with roll cab, pushing roll cab up against the Align locker with roll cab, pushing roll cab up against the
locker pallet locker pallet
2. 2. Lock the caster of the roll cab and block the casters, so that Lock the caster of the roll cab and block the casters, so that
the roll cab will not move the roll cab will not move
3. 3. Remove the two lag bolts that hold the locker support to the Remove the two lag bolts that hold the locker support to the
pallet base pallet base
#2
Refer to Fig. 2
1. Carefully slide the locker and support along the top of the
pallet base until it is up against the roll cab
#1
#1
Figure 1
Figure 2
