Summary of Contents for Excel DC-L0118

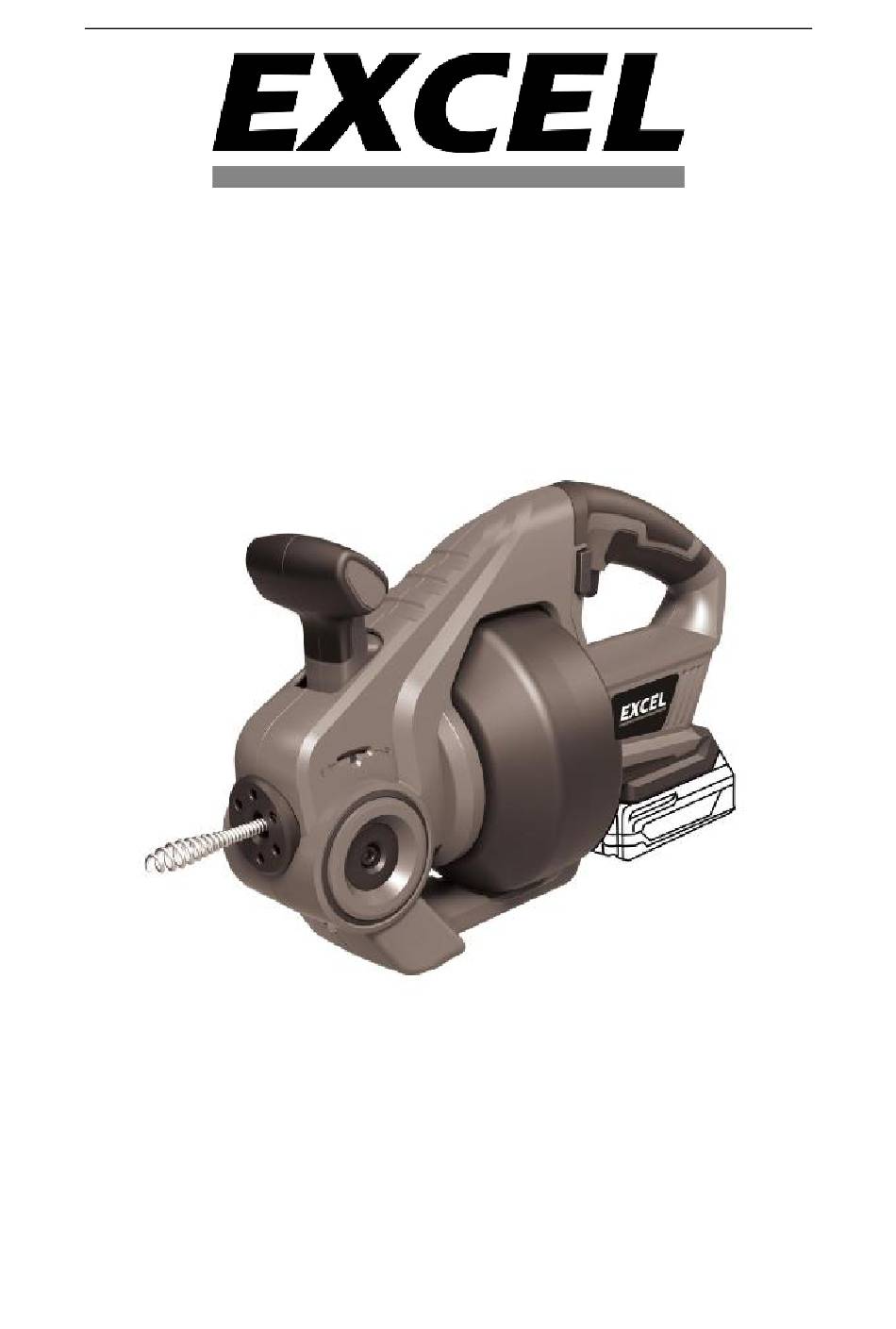

- Page 1 Original Instructions CORDLESS DRAIN CLEANER 18V 12241/DC-L0118 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. - Page 3 Original Instructions GENERAL SAFETY WARNINGS FOR THE TOOL WARNING Read all safety warnings and instructions. Failure to follow all the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL THE WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
- Page 4 Original Instructions moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 5 Original Instructions tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation.
- Page 6 Original Instructions gloves are drawn into the rotating parts. It will cause electric shock or burn when contacting the motor or other electric components. Eye injury caused by the flexible shafts, cables or flying debris. The flexible shaft may wrap or break the fingers and palms, or cause damage to other parts of the body.
- Page 7 Original Instructions usage or temperature. This does not necessarily indicate a failure of the battery pack. However, if the outer seal is broken and this leakage comes into contact with your skin: ü Wash the affected area quickly with soap and water. ü...
- Page 8 Original Instructions Cleaning and user maintenance shall not be made by children without supervision. For indoor use only Warning do not recharge non-rechargeable batteries If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Before using the charger, read all the instructions and cautionary markings on the charger and battery pack as well as the instructions on the battery pack.
-
Page 9: List Of Main Parts
Original Instructions knowledge, unless they have been given supervision or instruction concerning use of the charger by a person responsible for their safety. Children should be supervised to ensure that they do not play with the charger. Do not expose charger to rain or snow. Do not mount charger on wall or permanently affix charger to any surface. -
Page 10: Technical Specifications
Original Instructions On/Off Switch Forward and reverse rotation Operating handle Flexible shaft Ratchet Battery Pack(excluded) TECHNICAL SPECIFICATIONS Product description 18V Li-ion Drain cleaner Rated voltage of battery Rated Speed 0-560/min Pipe Capacity 20-50mm Sound pressure level L =3dB(A)) 79 dB(A) Sound power level L =3dB(A)) 90 dB(A) - Page 11 Original Instructions measured in accordance with a standardized test given in EN60745-1 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ.
-
Page 12: Operation
Original Instructions CH-1802A: l Plug the charger adapter into power source. The green light on the charger stand will illuminate, indicating the charger is powered. l Slide the battery all the way into the charger stand until it locks in place with a click. - Page 13 Original Instructions Notice: do not stare at light or light source! Pull the trigger to switch on the light. When the trigger is pulled, the light is on;when the trigger is released, the light is off. (Figure3) Please use clean cloth to wipe the lamp holder in case of scratching; otherwise it will reduce luminance.
- Page 14 Original Instructions Flexible shaft auto scaling 1. Press the forward and reverse rotation button L: 1) Press the speed switch lightly, move the handle forward to the F position, and the flexible shaft will be delivered forward (Fig. 5). Fig.5 2) Press the speed switch lightly, pull the handle back to the R position, and the flexible shaft will retract backwards (Fig.
- Page 15 Original Instructions Pipe dredge (before operation, be familiar with the automatic scaling operation of the flexible shaft, otherwise it will lead to personal injury or damage to the tool) Please place the tool head at a distance of less than 150mm away from the pipe opening.
-
Page 16: Service And Maintenance
Original Instructions operations according to the actual situation. If the pipe cannot be dredged, please ask for professional for help. Do not force the operation and cause unnecessary troubles. SERVICE & MAINTENANCE Always remove the battery from the tool before performing any adjustment or maintenance operation. - Page 17 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
