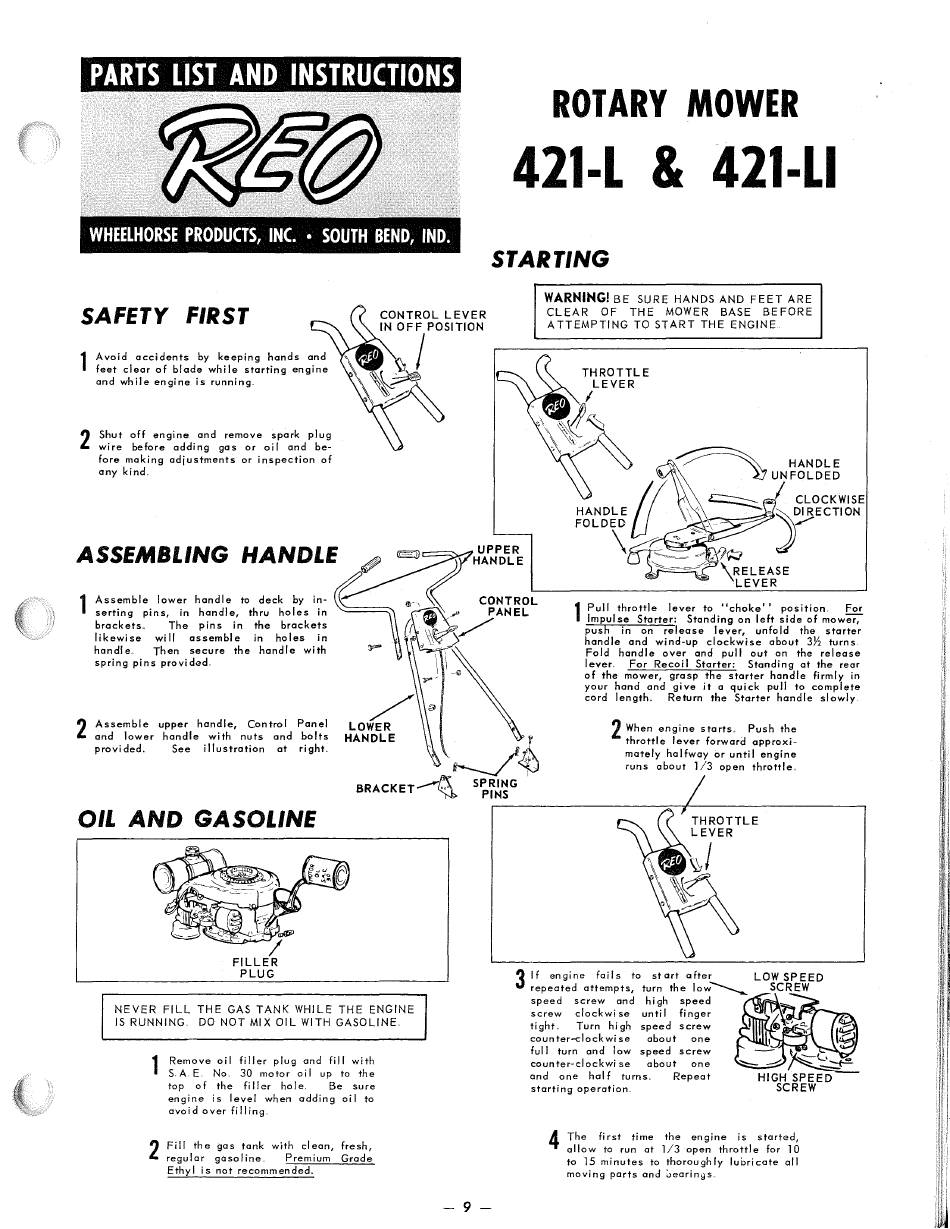

PARTS LIST AND INSTRUCTIONS
ROTARY MOWER
421-L
&
421-LI
WHEELHORSE PRODUCTS, INC. • SOUTH BEND, IND.
STARTING
SAFETY FIRST
1
Avoid accidents by keeping hands and
feet clear of blade while starting engine
and while engine is running
2
Shut off engine and remove spark plug
wire before adding gas or oi I and be-
fore making adjustments or inspection of
any kind.
WARNING!
BE SURE HANDS AND FEET ARE
CLEAR OF THE MOWER BASE BEFORE
ATTEMPTING TO START THE ENGINE
ASSEMBLING HANDLE
@H'i":D'L'l,
1
Assemble lower handle to deck by in-
~~
,
«"
CONTROL
serting pins, in handle, thru holes in
~.-"
PANEL
brackets.. The pins in the brackets
{r
~~
/
likewise will assemble in holes in
' 0 "icS \
handle. Then secure the handle with - " II \
spring pins provided
1
Pull throttle lever to "choke" position. For
Impulse Starter: Standing on left side of mower;-
push in on release lever, unfold the starter
handle and wind-up clockwise about
3Y,
turns
Fold handle over and pull out on the release
lever. For Recoil Starter: Standing at the rear
of the mower, grasp the starter handle firmly in
your hand and give it a quick pull to complete
2
Assemble upper handle, Control Panel
and lower handle with nuts and bolts
provided.. See illustration at right.
I
-e
,..
. .
/~
LOWER
cord length.. Return the Starter handle slowly
2
When engine starts. Push the
throttle lever forward approxi-
mately halfway or until engine
runs about 1/3 open throttle . .
BRACKET .............
5
SPRING
"):1
PINS
OIL
AND
GASOLINE
NEVER FILL THE GAS TANK WHILE THE ENGINE
IS RUNNING DO NOT MIX OIL WITH GASOLINE
1
Remove oil filler plug and fill with
S. A E No. 30 motor oil up to the
top of the filler hole. Be sure
engine is level when adding oil to
avoid over filling
2
Fill the gas tank with ciean, fresh,
regular gasoline Premium Grade
Ethyl is not recommended.
- 9 -
.-------------~r_------------I
3
If engine fails to start after LOW SPEED
repeated attempts, turn the low-'-...... SCREW
speed screw and high speed
screw clockwi se unti I
fi
nger
tight.. Turn hi gh speed screw
counter-clockwise about one
full turn and low speed screw
counter-c1ockwi se about one
and one hal f turns.. Repeat
starting operation
4
The first time the engine is started,
allow to run at 1/3 open throttle for 10
to 15 minutes to thoroughly lubricate all
moving parts and
~earin~s.
