AN810 -Wi Fi Genius User Manual
This manual illustrates how to use the WiFi Genius AN810 CAPWAP Broadband
Router with WLAN Controller and PoE Switch function. The reader should be familiar
with basic networking knowledge and terminology.
This manual should be read before attempting to set up this device.
.
Aristel Networks Pty Ltd.
www.aristel.com.au
1
Advertisement
Table of Contents
Related Manuals for Aristel WiFi Genius AN810
Summary of Contents for Aristel WiFi Genius AN810
- Page 1 AN810 -Wi Fi Genius User Manual This manual illustrates how to use the WiFi Genius AN810 CAPWAP Broadband Router with WLAN Controller and PoE Switch function. The reader should be familiar with basic networking knowledge and terminology. This manual should be read before attempting to set up this device.
-
Page 2: Table Of Contents
Content Chapter 1: Product Instruction, Default Data, Packaging-------------------------------------------------------------3 1.1 Product Instruction --------------------------------------------------------------------------------------------------3 1.2 Default Data-----------------------------------------------------------------------------------------------------------3 1.3 Packing and Accessory---------------------------------------------------------------------------------------------3 Chapter 2: Hardware Introduce--------------------------------------------------------------------------------------------- 4 2.1 Hardware---------------------------------------------------------------------------------------------------------------4 2.2 Installation--------------------------------------------------------------------------------------------------------------4 Chapter 3: Login ----------------------------------------------------------------------------------------------------------------5 Chapter 4: WEB GUI Configuration-----------------------------------------------------------------------------------------6 4. 1. User Manager-------------------------------------------------------------------------------------------------------7 4. -
Page 3: Chapter 1: Product Instruction, Default Data, Packaging

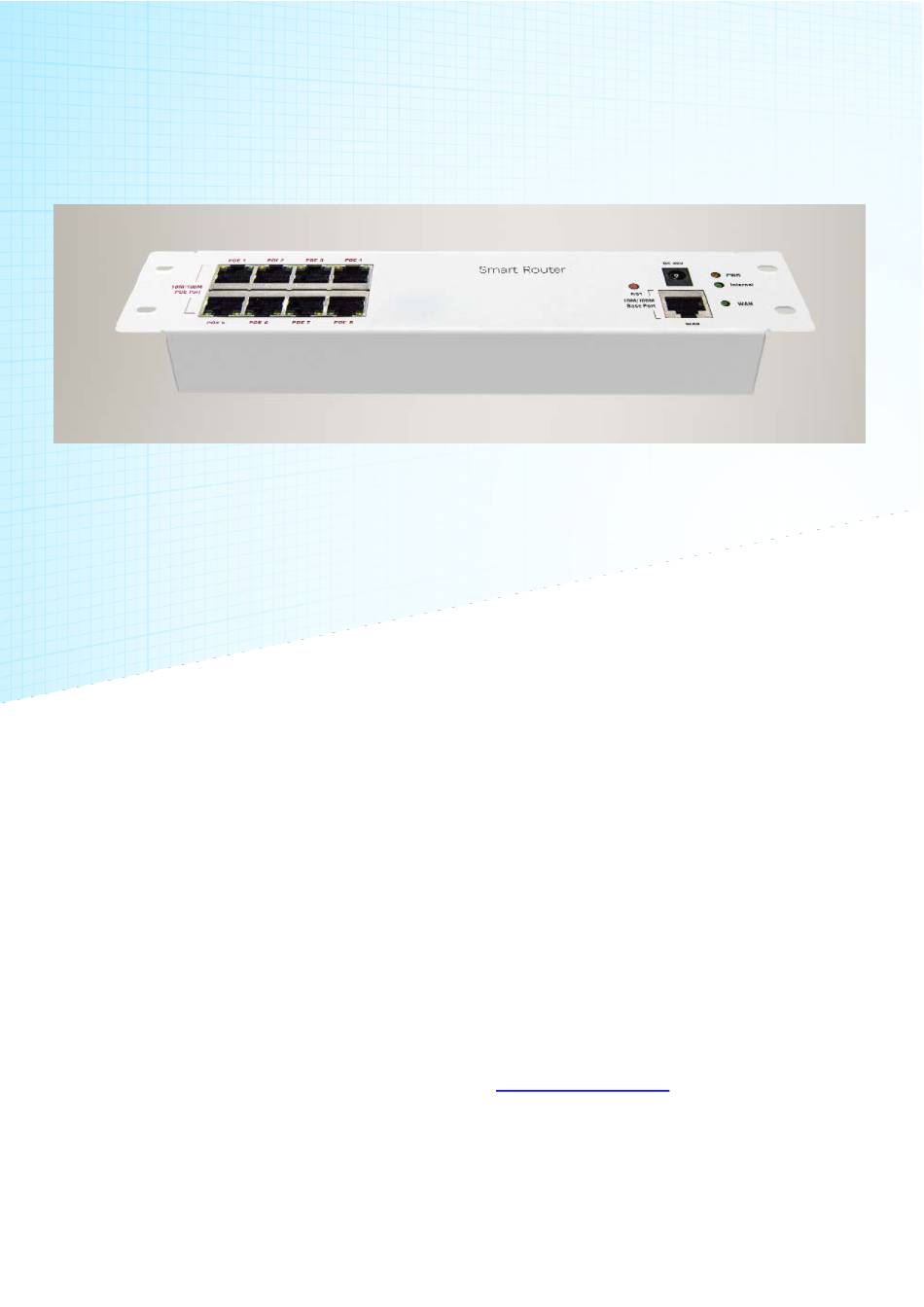

Chapter 1: Product Instruction, Default Data & Packaging 1.1 Product Instruction: The Wi-Fi Genius AN810 Broadband router is a CAPWAP router with WLAN Controller and PoE switch functions. It supplies Ethernet for PC, IPTV or other entertainment devices and supplies PoE power and Ethernet together for wireless APs, to bring seamless wireless coverage. -
Page 4: Chapter 2: Hardware Introduce
Chapter 2: Hardware Introduction. 2.1 Hardware: WAN: Ethernet Port, connect with ADSL Modem mainly. DC Input: Can be 48V or 24V. Take 48V for example; Pls note: If 48V DC input, then the PoE ports can supply 48V PoE out for PD equipment. If 24V DC Input, then the PoE ports support passive PoE, supply 24V Passive PoE for PD equipment. -
Page 5: Chapter 3: Login
Chapter 3: Login A. Confirm the PoE ports are 48V PoE or 24V Passive PoE; If 24V Passive PoE, pls disable PoE power first by the PoE on/off switch, then connect LAN ports with PC. B. Connect LAN Port with PC, then PC will get IP address: 192.168.18.X (X is number from 2~254, The default LAN IP address is 192.168.18.1) C. -
Page 6: Chapter 4: Web Gui Configuration
Chapter 4: WEB GUI Configuration When you login to this Broadband router, the following home page will pop up as follow: Version: Show firmware version : To GUI WEB : To manage the online users, click it to user manager page : Click to check the LAN status : Click to set the WAN Setting : Here show the CPU and Memory capacity... -
Page 7: User Manager
4. 1. User Manager The user manager can manage the network activity of members and visitors. Add: Add the MAC which will be managed, configuration shown in above picture. Blacklist Manager: A MAC address added will prohibit it from Ethernet usage, configuration shown as follows;... -
Page 8: Device List
4. 2. AC This Broadband router with WLAN controller function can manage, control and configure the connected wireless access point(s). Click button of AC, and will pop the following picture, which shows all the wireless APs connected into this Broadband router; 4.2.1 Device List Device List to show the online/offline wireless AP list;... -
Page 9: 2: Address Server
Users: Means how many users connected to this wireless AP Channel: Show this wireless AP’s channel, including device 1 and device 2 TxPower: Means the wireless AP’s RF power Device Model: Model number of this wireless AP Uptime: running time Config : To check the wireless AP’s working status, configure the wireless AP’s basic and advanced data. -
Page 10: 3: Zero Config
Server IP address: default is 192.168.200.1; can change to your choice, but pls note, if server IP is 192.168.200.1, then wireless AP’s IP address will be one from 192.168.200.2 to 192.168.200.254 Server Address Count: default is100, can be 1~100, based on the QTY of wireless AP. Effective Time: can be 1~24 hours Allocated AP number: shows the number of wireless APs which have assigned IP addresses by this WLAN controller. - Page 11 Channel: Auto in default, but we recommend you setup the channel by manually, based on environment. RF Output Power: 100%, 75%, 50%, 25%, 12.5%, you can adjust the power based on application. More RF Power, mean more WiFi Range; Coverage Threshold: This forces end users to connect to the outdoor CPE with stronger signal strength.
-
Page 12: 4: Device Log
Delete: If needed, you can delete this zero config . 4.2.4: Device Log Device Log keeps the operation record of this WLAN controller. 4.3 LAN Settings This includes LAN setting and Static DHCP 4.3.1 LAN Setting:... -
Page 13: Static Dhcp
IP address: means AC controller’s IP address Subnet Mask: to set the subnet of LAN STP: Spanning Tree: Enable to show the assigned IP list in the DHCP list; Disable means it will not be shown.. DHCP Server: Enable means IP address is assigned automatically. Start Address: The start DHCP IP address Max Number: the number of max DHCP addresses. -
Page 14: Wan
4.4. WAN For the Wi Fi Genius series , the default operation mode is gateway. 4.4.1 WAN Setting: In WAN Setting, including DHCP, Static IP, PPPoE is shown as follows: Static IP: Assign IP address and DNS information to get the Ethernet PPPoE: Dial up the PPPoE number to get the Ethernet DHCP: Get Ethernet from router’s DHCP. -
Page 15: Url Filter
Port Remote Management Enable the remote management port, manager can access into the WEB interface even in another Ethernet. 4.5. URL Filter When enabled, the URL filter will prohibit the users from visiting some URLs at certain times; When click URL filter, pls setup the URL rule, add the time group, configure the limited time range and input URL to finish. - Page 16 IP Group: Can add the IP group if needed, based on following picture Time Group: Can add time group based on requirement in following picture: Application Class: Including Instant messaging (QQ, Trade Manager, WeChat); Network Download (Thunder, BT, Edonkey); Network Video (Youtube, PPTV, Tencent Video, Ppstream, Youku, Sohu Video, Letv, RSTP, Douyu, Storm web version, funsh, YY) Office ( FTP, DNS, Http, NTP, NFS, DHCP, RTSP, IRC, Telnet, Stun, System Log, IPSEC, IGMP, SSH, TFTP, PPTP, Radius, OpenVPN)
-
Page 17: Timed Reboot
4.7 Timed Reboot This will show the auto reboot time; The default setting is disabled, when enabled, it can reboot daily. 4.8 Upgrade Firmware This feature allows the device firmware upgrade. Noted: Upgrading software may cause system outage, In the process of upgrading the firmware, do not power off, otherwise it may damage the broadband router! 4.8 Advanced Settings In advanced Settings, it includes the common broadband router setting ;... -
Page 18: 2: Ip/Time Group
4.9.1.2: IP/Time Group For this, pls refer to Chapter 4, 4.6 Behaviour Control 4.9.1.3: Behaviour For this, pls refer to Chapter 4, 4.6 Behaviour Control 4.9.1.4: User Manager For this, pls refer to Chapter 4, 4.1 User Manager 4.9.1.5 Flow Control Flow Control means Ethernet speed limit is capped to end users;... -
Page 19: Network
Binding Code: Input the binding code if you have it. If not you can click ” Register” to register the binding code .It will update more information in this part after the English cloud server has finished. 4.9.2 Network Includes LAN Settings, WAN Settings and DDNS settings. 4.9.2.1: LAN Settings: For this, pls refer to Chapter 4, 4.3 LAN 4.9.2.2: WAN Settings:... -
Page 20: Mac Filter
When enabled this function will allow or limit this IP address to access this broadband router based on rules. 4.9.3.3 MAC Filter When enabled, MAC filter will allow or prohibit this MAC address to access this router based on rules. 4.9.3.4 Port Mapping Also called Port Forwarding. -
Page 21: Dmz
Status: Enable/Disable Rule Class: Including user defined, http, https, FTP, POP3, SMTP, DNS, telnet, IPSEC, Remote Desktop Rule name: Shows the name of choosen rule class; Protocol: Including TCP, UDP, TCP+UDP LAN IP: port mapping LAN IP address External Port: Set external port rule Internet Port: Set internal port rule Mark: the Ethernet Line which will be applied in this rule. -
Page 22: Configure
4.9.4.1 Configure This includes the broadband router backup, restore, reset default. Backup Save the WLAN controller configuration file to your computer, so you can restore the same configuration if required. Restore Using the saved configuration file to recover configuration Restore default To restore the factory default settings, please press this button 4.9.4.2 Reboot This is to reboot the broadband router now or reboot this broadband router in a certain... -
Page 23: Firmware Upgrade
4.9.4.4 Firmware Upgrade For this, pls refer to Chapter 4, 4.8 Upgrade Firmware. 4.9.4.5 Device Time To show the broadband router’s time. Sync with the host Synchronization time with connected PC and router NTP Eable Enable or Disable NTP NTP Server Select the server time synchronization Manual IP Setting Setting user-defined IP address... -
Page 24: Device Log
Device Log Enable or Disable to show system log Remote Log Service To decide whether to send System log to some pointed remote server synchronously; www.aristel.com.au...
