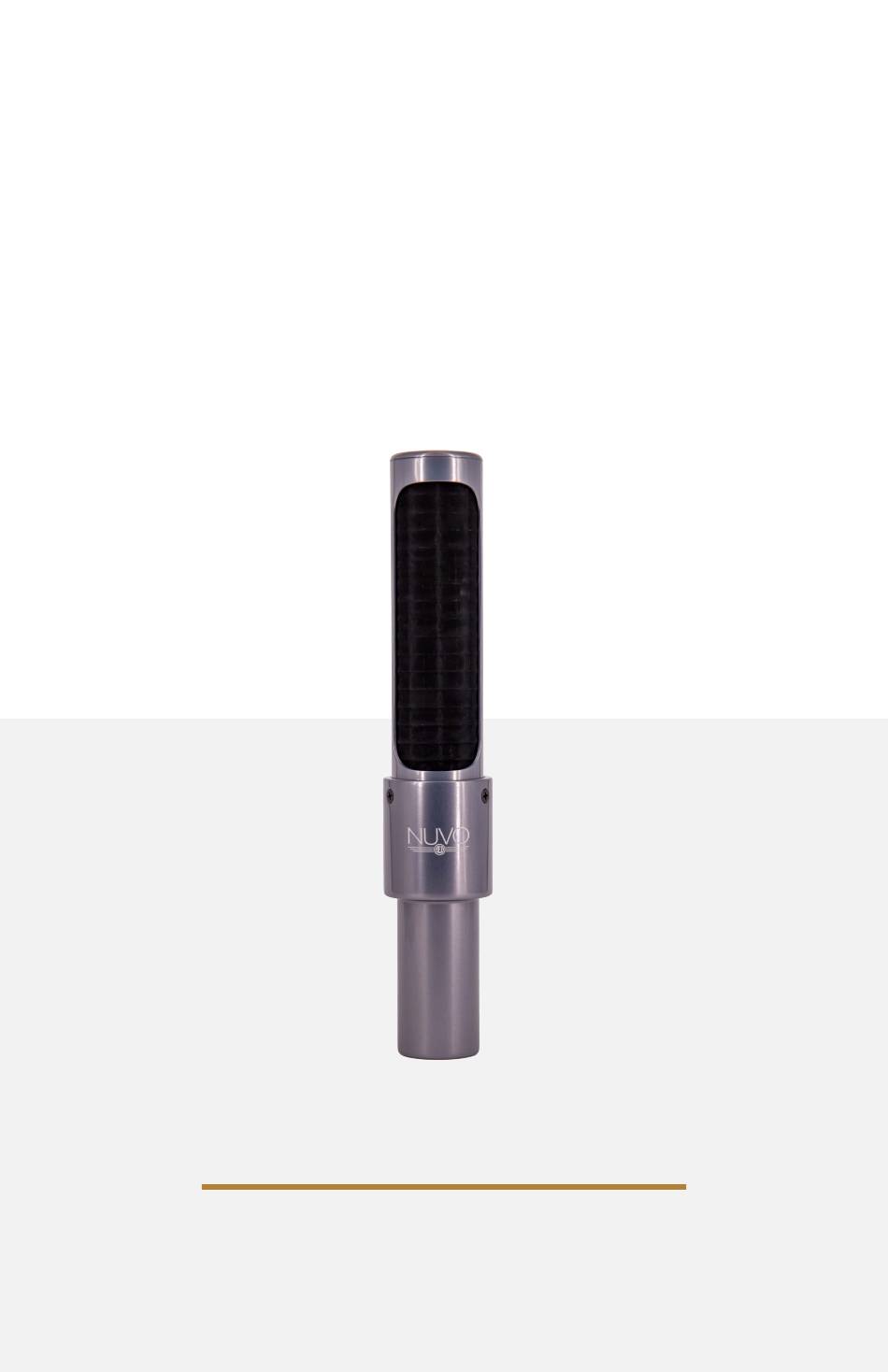

AEA N13 Owner's Manual

Active mid-field ribbon mic
Hide thumbs Also See for N13:

Advertisement

Table of Contents

AEA N 13
OWNER'S MANUAL
ACTIVE MID-FIELD RIBBON MIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEA N13

Summary of Contents for AEA N13

  • Page 1 AEA N 13 OWNER’S MANUAL ACTIVE MID-FIELD RIBBON MIC...

  • Page 2: Welcome

    If this is your first AEA product, welcome to the family! The AEA N13 was designed to be natural and open at a mid-field distance, with a particularly strong ability to pick up fast transients. Relatively bright for a ribbon mic, the N13 microphone excels in capturing drum overheads, strings, acoustic guitars, and piano.

  • Page 3: Table Of Contents

    CONTENTS WELCOME INTRODUCTION SUPPORT GENERAL GUIDELINES APPLICATION ADVICE SPECIFICATIONS...

  • Page 4: Introduction

    1.2 micron ribbon (our thinnest ribbon yet!). Additionally, the N13 is the debut of a brand new motor, which features a smaller ribbon (our first non-Big-Ribbon bidirectional!). With...

  • Page 5: General Guidelines

    For mic level patching, we suggest always using an XLR patch bay. The N13, as with all AEA active ribbon mics, requires a current draw of 7 milliamps. Some USB and battery-powered audio interfaces will not deliver the IEC-specified 10 milliamps per input.
  • Page 6 Take care to avoid high-wind outdoor environments. For extra protection or if you plan to use your N13 in an outdoor or high-wind environment, we recommend using the AEA NUVO windscreen.

  • Page 7: Application Advice

    The N13 works well with all standard microphone stands, but a high-quality boom stand will still make your life a little bit easier.
  • Page 8 Since the N13 is bidirectional, it exhibits nulls at right angles to the principal axis. These nulls produce a “plane of rejection” around the sides, top and bottom of the mic that can be used effectively to reduce leakage.
  • Page 9 A MID-FIELD RIBBON The N13 is a mid-field ribbon mic meaning it is designed to be positioned at an ideal distance of 8 inches to 3 feet (~0.2 – 1 m) from the source of sound.

  • Page 10: Specifications

    SPECIFICATIONS Pressure gradient transducer Operating Principle: Bidirectional Directional Pattern: <20 Hz to >20 kHz Frequency Range: 139 dB SPL (1% third harmonic > 1 kHz) Maximum SPL: 11.48 mV/Pa (-38.8 dBV) (at 1 kHz, no load) Sensitivity: 92 Ω broadband Output Impedance: 1.0 kΩ...
  • Page 11 1.38” 1.62” Directivity -30° 30° -60° 60° -90° 90° -120° 120° 10000Hz 4000Hz 2000Hz -150° 150° 1000Hz 500Hz 180° 200Hz FREQUENCY RESPONSE • Data below 200 Hz omitted due to measuring room restrictions • 0 dBr is equivalent to 11.4 mV/Pa (-38.8 dBV) •...
  • Page 12 AEARIBBONMICS.COM | @RIBBONMICS | INFO@RIBBONMICS.COM | (626) 798-9128...
