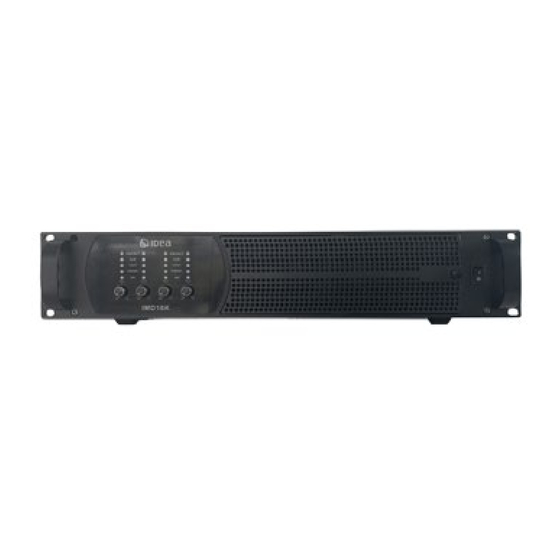

IMD16K
Professional Amplifier
Amplificador Profesional
USER MANUAL
MANUAL DE USO

Advertisement

loading
Need help?

Need help?

Do you have a question about the IMD16K and is the answer not in the manual?

Questions and answers

Summary of Contents for Idea IMD16K

  • Page 1 IMD16K Professional Amplifier Amplificador Profesional USER MANUAL MANUAL DE USO...
  • Page 2 Contents overview technicaldata overviewofconnectorsandcontrols...
  • Page 3 overview Combining the excellent sound of Class AB and the power main, either at high excursion, high temperature or high voltage, efficiency of the Class D amplifiers, TD Class technology allows protection system acts as a smart power regulator to extend the lightweight amplifiers to deliver powerful and high-quality signal component durability, while maintaining the highest dynamic at the same time.
  • Page 4 technical data Out power at 1KHz , <0.05 THD: 8Ω Stereo 4×1800 W 4Ω Stereo 4×3500 W 2Ω Stereo 4×3300 W Amplification Frequency response 20Hz - 25 kHz ± 0.5 dB THD+N (Rated power 4 Ω/kHz) < 0.1% Signal noise ratio 110 dB Amplification gain (selectable) 26 - 32 - 38 - 40 dB...
  • Page 5 overview of connectors and controls front panel The front panel LED area includes rhe following indicators per channel: 1 - level control Calibrated potentiometers to alter the total gain of the power amplifier. In order to avoid distortions in mixing consoles upstream. these controls should normally be positioned between 0 and 10.
  • Page 6 rear panel DIP switches for adjusting key features (See below) Mains input 100/240 V 4 channel output XLR connectors for inputs for operation SpeakOn connectors and loop through Four channel sensitive control mode DIP switch features Stereo and parallel modes may be adjusted using the DIP switches on the rear panel of the amplifier.
  • Page 7 stereo mode Before setting the mode. please turn off the amplifier and slide the mode select switch to the set up shown below. In th is mode, Channel A an Channel B operate independently (just traditional stereo amplifier). The signal input into channel A can be output from channel A only;...
  • Page 8 parallel mode Before setting the mode, turn off the amplifier. In parallel mode, turn on the switch 9 as shown below (fig. 3). The green led indicator is on, menaing the parallel mode is active. Input the channel signal from channel A. At this time, channel A and channel B have signal output, and the audio signal can control the volume separately.
  • Page 9 audio input and output connections Balanced input connections The XLR in pul conncctors are eleetronieally balanced, and wircd according to the IEC 268 standa rd(pin 2 = hot). XLR inp u1 connectors should be wiredas fo llows: Pin 1 Ground/shicld Pin 2 Hot ( + ) Pin 3 Cold (-) When linking the same source signal to several input channels,...
  • Page 10 Contenido descripción datostécnicos descripcióngeneraldeconectoresycontroles...
  • Page 11 descripción Combinando el excelente sonido de la Clase AB y la eficiencia El último sistema de protección realiza un análisis avanzado del energética de los amplificadores Clase D, la tecnología TD Class nivel de la señal. Cuando los transductores operan en el domi- permite que los amplificadores livianos entreguen una señal nio no lineal, ya sea en alta excursión, alta temperatura o alto potente y de alta calidad al mismo tiempo.
  • Page 12 datos técnicos Alimentación de salida a 1 KHz, <0,05 THD: 8Ω Stereo 4×1800 W 4Ω Stereo 4×3500 W 2Ω Stereo 4×3300 W Amplificación Respuesta de frecuencia (+/- 0,1dB) 20Hz - 25 kHz ± 0.5 dB THD+N (Potencia medida a 4 Ω/kHz) <...
  • Page 13 descripción general de conectores y controles panel frontal El área LED del panel frontal incluye los siguientes indicadores por canal: 1 - control de nivel Potenciómetros calibrados para alterar la ganancia total del amplificador de potencia. Para evitar distorsiones en las mesas de mezclas aguas arriba.
  • Page 14 Panel trasero Interruptores DIP para ajustar funciones clave (ver más abajo) Entrada de red salida de 4 canales Conectores XLR para entra- 100/240 V para funcio- das y bucle. Conectores SpeakOn namiento. Modo de control sensible de cuatro canales Características del interruptor DIP Los modos estéreo y paralelo se pueden ajustar usando los interruptores DIP en el panel trasero del amplificador.
  • Page 15 Modo estéreo Antes de configurar el modo. apague el amplificador y deslice el interruptor de selección de modo a la configuración que se muestra a continuación. En este modo, el canal A y el canal B funcionan de forma independiente (sólo un amplificador estéreo tradicional).
  • Page 16 modo paralelo Antes de configurar el modo, apague el amplificador. En modo paralelo, encienda el interruptor 9 como se muestra a continua- ción (fig. 3). El indicador LED verde está encendido, lo que significa que el modo paralelo está activo. Ingrese la señal del canal desde el canal A.
  • Page 17 conexiones de entrada y salida de audio. Conexiones de entrada balanceadas Los conectores XLR en pul están balanceados electrónicamente y cableados de acuerdo con el estándar IEC 268 (pin 2 = activo). Los conectores XLR de entrada u1 deben cablearse de la siguiente manera: Pin 1 Tierra/protección Pin 2 Caliente ( + ) Patilla 3 Frío (-)
  • Page 18 I MÁS D ELECTROACÚSTICA S.L. Pol. A Trabe 19-20, 15350 – Cedeira, A Coruña (España) Tel. +34 881 545 135 www.ideaproaudio.com info@ideaproaudio.com Specifications and product appearance may be subject to change without notice. Las especificaciones y aparienca del prodcuto pueden estar sujetas a cambios. IDEA_IMD16K_UM-BIL_v4.0 | 3 - 2024...
