CT50 -Ex

Mobile Computer

with Windows

10 IoT Mobile Enterprise

User Guide

Table of Contents

Need help?

Do you have a question about the ecom CT50-Ex and is the answer not in the manual?

Questions and answers

Summary of Contents for Pepperl+Fuchs ecom CT50-Ex

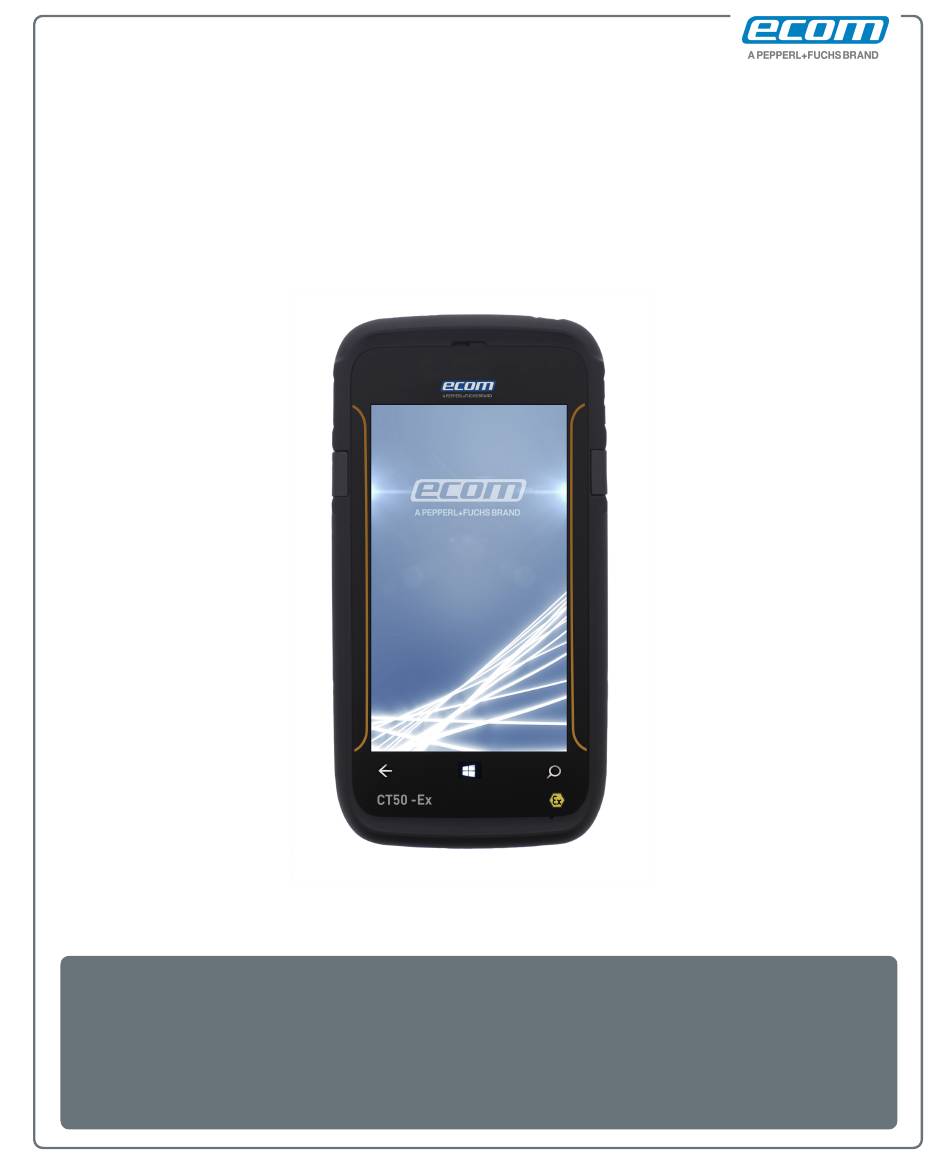

Page 1 CT50 -Ex Mobile Computer with Windows ® 10 IoT Mobile Enterprise User Guide...
Page 2 Disclaimer Honeywell International Inc. (“HII”) and ecom (ec) reserve the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII an ec to determine whether any such changes have been made.
Page 3: Table Of Contents
Contents Contents Customer Support ..........vii Product Service and Repair .
Page 4 Contents How to Transfer Files..........22 Transfer Files with Windows Phone App .
Page 5 Contents Make an Emergency Phone Call........53 Use the Camera .
Page 6 Contents Manage and Maintain the CT50 -Ex ......69 Update the CT50 -Ex Software ........70 Test a Network Connection .
Page 7: Customer Support
Customer Support Customer Support If you need assistance installing or troubleshooting your product, contact us by using one of these methods: Knowledge Base: www.hsmknowledgebase.com Our Knowledge Base provides thousands of immediate solutions. If the Knowledge Base does not help you solve your problem, log into the Technical Support Portal to submit your problem or ask your question.
Page 8 Customer Support viii...
Page 9 Customer Support...
Page 10 Customer Support...
Page 11: About The Computer Features
About the Computer Features This chapter introduces the -Ex CT50 Mobile Computer ® with Windows 10 IoT Mobile Enterprise operating system. Use this chapter to learn about the basic computer features, functions, and accessories.
Page 12: About The Ct50 -Ex Mobile Computer
Chapter 1 — About the Computer Features About the ecom CT50 -Ex Mobile Computer The ecom CT50 -Ex Mobile Computer is an enterprise-focused smartphone that uses the Windows 10 IoT Mobile Enterprise operating system to provide reliable and secure management of corporate data and wireless communications.
Page 13 Chapter 1 — About the Computer Features Front View of the CT50 -Ex...
Page 14 Chapter 1 — About the Computer Features Top View of the CT50 -Ex...
Page 15 Chapter 1 — About the Computer Features Camera lens Camera button Battery door latch microSIM and microSD door Battery Back View of the CT50 -Ex...
Page 16: About The Battery
Chapter 1 — About the Computer Features About the Battery The CT50 -Ex uses a rechargeable 3.6 Vdc Li-ion battery as its main power source. The battery has a 14.6 watt-hour capacity. Several factors determine the life of your battery, such as display brightness, display timeout, input device, extreme temperature, and your usage.
Page 17: Charge Before Use
Chapter 1 — About the Computer Features Charge Before Use Make sure you fully charge the battery before you use your computer. You can charge the battery before or after you install it in the computer. It takes about 6 hours for the battery to fully charge in any of the accessories •...
Page 18 Chapter 1 — About the Computer Features 3 Swipe down toward the bottom of the screen to power off the CT50 -Ex. The word “Goodbye” appears on the screen as the computer powers off.
Page 19 Chapter 1 — About the Computer Features 4 Disconnect the handstrap from the bottom of the computer. 5 Press in on the door lock and slide the battery door toward the bottom of the computer to unlock the door.
Page 20: About The Battery Status Led
Chapter 1 — About the Computer Features 6 Lift up on the edge of the battery and remove it from the computer. 7 Insert the charged battery into the computer. 8 Press down on each corner of the battery to make sure it is fully seated in the computer.
Page 21: Check The Battery Settings
Chapter 1 — About the Computer Features Battery Status LED Descriptions LED State Description Steady green The computer is connected to a charger and the battery is more than 95% charged. Blinking green The computer is connected to a charger and the battery level is between 61% and 95% charged.
Page 22: About Battery Life And Conservation
Chapter 1 — About the Computer Features • Always allowed: You can enable some apps to run in the background even when the battery saver is turned on. To add apps, tap , choose an app from the list, and tap Add. About Battery Life and Conservation If you store the batteries outside of the computer for long periods of time, they slowly discharge.
Page 23: Battery Recommendations And Safety Precautions
Chapter 1 — About the Computer Features Battery Conservation Tips (continued) When You Want to: Do this to Save Battery Power: Stop using the Make sure that the low battery status icon is not computer for 5 minutes on the screen and that the battery status LED or more.
Page 24: Enable Airplane Mode
Chapter 1 — About the Computer Features Replace this battery only with the approved ecom battery pack • AM CT50 -Ex (only outside the ex-hazardous area). • Discarded batteries may create a safety hazard. Before disposal, cover the battery contacts with electrical insulating tape. •...
Page 25: Power On The Ct50 -Ex For The First Time
Chapter 1 — About the Computer Features Power On the CT50 -Ex for the First Time 1 Press the Power button. 2 From the Welcome screen, select your language and then tap Next. 3 Select your region and then tap Next. 4 Tap Cancel to skip the advanced provisioning options.
Page 26: Unlock The Screen
Chapter 1 — About the Computer Features Unlock the Screen Every time you power on the computer, you will need to unlock it. • Swipe up from the bottom of the screen to unlock it. Set a PIN to Protect the Computer After you start using the computer, you should set a PIN to secure apps and data on the computer.
Page 27: Use Gloves With The Touch Screen
Chapter 1 — About the Computer Features Use Gloves with the Touch Screen You can use many off-the-shelf gloves, including leather, when operating the touch screen on the computer. The gloves can be up to 2 mm (0.08 inches) thick. Use this procedure to set the touch screen to “glove mode.” 1 Press the flat part of the gloved finger to the touch screen.
Page 28: Configure The Screen Backlight
Chapter 1 — About the Computer Features Configure the Screen Backlight The display has an ambient light sensor that automatically adjusts the backlight intensity to conserve power and ensure the display is readable. You can set the backlight intensity level as needed for your environment.
Page 29: Audio Settings
Chapter 1 — About the Computer Features Audio Settings Use the Settings app to configure the audio and sound settings. • Tap All Apps > Settings > Personalization > Sounds. Audio and Sound Settings Setting Description Ringtone Select a ringtone. Vibrate Turns vibrate mode on or off.
Page 30: Insert A Microsd Card
Chapter 1 — About the Computer Features Insert a microSD Card You can use a microSD card to increase file storage capacity or to install software. Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD or microSDHC memory cards with the CT50 computer for maximum performance and durability.
Page 31 Chapter 1 — About the Computer Features 3 Press in on the door lock and slide the battery door toward the bottom of the computer to unlock the door. 4 Lift up on the edge of the battery and remove it from the computer. 5 Press down on the SD card door and slide it toward the top of the computer to open it.
Page 32: How To Transfer Files
Chapter 1 — About the Computer Features 6 Insert the SD card into the door. 7 Press down on the SD card door and slide the door toward the bottom of the computer to lock it. 8 Press down on each corner of the battery to make sure it is fully seated in the computer.
Page 33: Transfer Files With Windows Phone App
Chapter 1 — About the Computer Features Transfer Files with Windows Phone App 1 Connect the CT50 -Ex to your PC through a USB accessory and cable connection. 2 On the CT50 -Ex, when asked if you want to use the USB data connection, tap yes.
Page 34: Accessories For The Ct50 -Ex
Chapter 1 — About the Computer Features...
Page 35 Chapter 1 — About the Computer Features...
Page 36 Chapter 1 — About the Computer Features...
Page 37: About The User Interface And Applications
About the User Interface and Applications Use this chapter to learn about the Windows user interface and how to interact with the screen. You can also use this chapter to learn about the Honeywell applications on the computer.
Page 38: About The User Interface
Chapter 2 — About the User Interface and Applications About the User Interface The Windows 10 IoT Mobile Enterprise operating system provides a touch-friendly and easy to navigate user interface. About the Start Screen When you turn on the mobile computer, the Home screen is the first screen that appears after language provisioning is complete.
Page 39: About Status Bar Icons
Chapter 2 — About the User Interface and Applications About Status Bar Icons Status and notification icons show you the current status of your network, the battery, notifications, and the sounds. Common Status and Notification Icons Icon Description An app or service is using computer location information. Unread notification.
Page 40: About Screen Gestures
Chapter 2 — About the User Interface and Applications Navigation and Function Buttons (continued) Button Description Function Search Starts a search on the computer or the internet. Volume Raises or lowers the volume of the speaker. About Screen Gestures Use your fingers or the stylus to manipulate icons, buttons, menus, the onscreen keyboard, and other items on the screen.
Page 41: View Action Center
Chapter 2 — About the User Interface and Applications View Action Center Use the Action Center to view the battery charge level, view details about a notification, or to quickly access and modify settings. Windows Action Center • To open the action center, touch and hold the status bar at the top of the screen and then drag down.
Page 42: Customize The Start Screen
Chapter 2 — About the User Interface and Applications Customize the Start Screen The Start screen is the first screen you see when you power on the computer and unlock the screen. You can add, delete, move, resize, or group tiles into folders for quick access. Tiles can be apps, contacts, maps, albums, or office files.
Page 43: View Software Information
Chapter 2 — About the User Interface and Applications View Software Information 1 Tap All Apps > Settings > System > About. 2 Tap more info. The following information appears on the screen: • Model • Carrier • Software • Version •...
Page 44: Applications On The Computer
Chapter 2 — About the User Interface and Applications Applications on the Computer Applications help you troubleshoot and connect your computer to other devices and networks. Applications Available on the CT50 -Ex Icon Application Description DiagnosticInfoW10 Use the DiagnosticInfo app to view device information, Honeywell Apps, Radio Information, Battery Information, Memory Information, and Scanner...
Page 45: About The Scanner
About the Scanner Use this chapter to understand how to scan bar codes and how to configure the scanner.
Page 46: About The Scanner
Chapter 3 — About the Scanner About the Scanner The internal scanner can read 1D and 2D bar code symbologies, composite symbologies, and postal codes. It also supports omni- directional scanning for greater flexibility in real-world settings. The image engine can also capture black and white images, such as signatures and pictures of damaged inventory.
Page 47: About The Scanner Settings
Chapter 3 — About the Scanner 3 Press one of the Scan buttons. The illumination frame appears. Make sure the entire bar code is inside of the frame. When the scanner successfully reads a bar code, you hear a high beep and the Good Read LED turns on briefly.
Page 48: Symbology Settings
Chapter 3 — About the Scanner Scan Settings and Descriptions (continued) Scan Setting Description Scan Mode There are three options for scan mode: • Normal: Normal mode requires you to press Scan or one of the Scan buttons between each scan. •...
Page 49: About The Wedge Mode Profile
Chapter 3 — About the Scanner Profile Settings and Descriptions (continued) Profile Description HON:EnablePreviewOnDecodeAttempt Profile not supported in ScanDemoW10. HON:DisablePreview The default profile. Disables sending images to the application. Only decode results are shown on the screen. HON:EnableOOBE Enables the symbology types required when the built-in Out-of-box plug-in runs at first boot for scanning EZConfig labels.
Page 50 Chapter 3 — About the Scanner HONWedge Profile Commands (continued) Profile Commands Description Default WEDGE_POWER_TIMEOUT Use this command to optimize scan 30 ms performance or to save power. The WEDGE_POWER_TIMEOUT defaults to 30 ms. After 30 seconds of inactivity, the scan acquisition system enters a low power state.
Page 51: Create A Custom Profile
Chapter 3 — About the Scanner Create a Custom Profile You may need to create customized profiles to configure the scanner for your application. Some settings are only possible when using customized profiles. The computer uses profiles to enable symbologies, configure symbology options, and set scanning options.
Page 52: Custom Profile Example
Chapter 3 — About the Scanner Custom Profile Example The following example contains two profiles, one for Wedge Mode and one for POS Mode. • The .exm file contains the required ConfigDoc element named “Data Collection Profiles.” This element is not optional and must alway be included.
Page 53: Available Profile Commands
Chapter 3 — About the Scanner <?xml version="1.0"?> <ConfigDoc flags="000" name="Data Collection Profiles" desc="Profiles used for scanner configuration via POS Scanner API"> <HHPReserved> <Key name="EXMVersion">1.0.1</Key> <Key name="ContentVersion">1.0.0</Key> </HHPReserved> <Section flags="000" name="C39 Internal Scanner" id="C39"> <Key cmd="DEVICE" desc="Specifies the scanner type" list="Internal,USB" name="Device Type">Internal</Key>...
Page 54 Chapter 3 — About the Scanner "DEC_CODE39_MIN_LENGTH" "DEC_CODE39_MAX_LENGTH" "DEC_CODE39_CHECK_DIGIT_MODE" "DEC_CODE39_FULL_ASCII_ENABLED" "DEC_CODE39_START_STOP_TRANSMIT" "DEC_CODE39_APPEND_ENABLED" "DEC_CODE39_BASE32_ENABLED" "DEC_DATAMATRIX_ENABLED" "DEC_DATAMATRIX_MIN_LENGTH" "DEC_DATAMATRIX_MAX_LENGTH" "DEC_UPCA_ENABLED" "DEC_COUPON_CODE_MODE" "DEC_UPCA_CHECK_DIGIT_TRANSMIT" "DEC_UPCA_NUMBER_SYSTEM_TRANSMIT" "DEC_UPCA_2CHAR_ADDENDA_ENABLED" "DEC_UPCA_5CHAR_ADDENDA_ENABLED" "DEC_UPCA_ADDENDA_REQUIRED" "DEC_UPCA_ADDENDA_SEPARATOR" "DEC_UPCE0_ENABLED" "DEC_UPCE1_ENABLED" "DEC_UPCE_CHECK_DIGIT_TRANSMIT" "DEC_UPCE_NUMBER_SYSTEM_TRANSMIT" "DEC_UPCE_2CHAR_ADDENDA_ENABLED" "DEC_UPCE_5CHAR_ADDENDA_ENABLED" "DEC_UPCE_ADDENDA_REQUIRED" "DEC_UPCE_ADDENDA_SEPARATOR" "DEC_EAN8_ENABLED" "DEC_UPCE_EXPAND "DEC_EAN8_CHECK_DIGIT_TRANSMIT" "DEC_EAN8_2CHAR_ADDENDA_ENABLED" "DEC_EAN8_5CHAR_ADDENDA_ENABLED" "DEC_EAN8_ADDENDA_REQUIRED"...
Page 55 Chapter 3 — About the Scanner "DEC_EAN8_ADDENDA_SEPARATOR" "DEC_EAN13_ENABLED" "DEC_EAN13_CHECK_DIGIT_TRANSMIT" "DEC_EAN13_2CHAR_ADDENDA_ENABLED" "DEC_EAN13_5CHAR_ADDENDA_ENABLED" "DEC_EAN13_ADDENDA_REQUIRED" "DEC_EAN13_ADDENDA_SEPARATOR" "DEC_AZTEC_ENABLED" "DEC_AZTEC_MIN_LENGTH" "DEC_AZTEC_MAX_LENGTH" "DEC_HK25_ENABLED" "DEC_HK25_MIN_LENGTH" "DEC_HK25_MAX_LENGTH" "DEC_CODABAR_ENABLED" "DEC_CODABAR_MIN_LENGTH" "DEC_CODABAR_MAX_LENGTH" "DEC_CODABAR_START_STOP_TRANSMIT" "DEC_CODABAR_CHECK_DIGIT_MODE" "DEC_CODABAR_CONCAT_ENABLED" "DEC_CODABLOCK_F_ENABLED" "DEC_CODABLOCK_F_MIN_LENGTH" "DEC_CODABLOCK_F_MAX_LENGTH" "DEC_CODE11_ENABLED" "DEC_CODE11_MIN_LENGTH" "DEC_CODE11_MAX_LENGTH" "DEC_CODE11_CHECK_DIGIT_MODE" "DEC_CODE93_ENABLED" "DEC_CODE93_MIN_LENGTH" "DEC_CODE93_MAX_LENGTH" "DEC_COMPOSITE_ENABLED" "DEC_COMPOSITE_MIN_LENGTH" "DEC_COMPOSITE_MAX_LENGTH"...
Page 56 Chapter 3 — About the Scanner "DEC_COMPOSITE_WITH_UPC_ENABLED" "DEC_HANXIN_ENABLED" "DEC_HANXIN_MIN_LENGTH" "DEC_HANXIN_MAX_LENGTH" "DEC_IATA25_ENABLED" "DEC_IATA25_MIN_LENGTH" "DEC_IATA25_MAX_LENGTH" "DEC_I25_ENABLED" "DEC_I25_MIN_LENGTH" "DEC_I25_MAX_LENGTH" "DEC_I25_CHECK_DIGIT_MODE" "DEC_KOREA_POST_ENABLED "DEC_KOREA_POST_MIN_LENGTH" "DEC_KOREA_POST_MAX_LENGTH" "DEC_M25_ENABLED" "DEC_M25_MIN_LENGTH" "DEC_M25_MAX_LENGTH" "DEC_MAXICODE_ENABLED" "DEC_MAXICODE_MIN_LENGTH" "DEC_MAXICODE_MAX_LENGTH" "DEC_MICROPDF_ENABLED" "DEC_MICROPDF_MIN_LENGTH" "DEC_MICROPDF_MAX_LENGTH" "DEC_MSI_ENABLED" "DEC_MSI_MIN_LENGTH" "DEC_MSI_MAX_LENGTH" "DEC_MSI_CHECK_DIGIT_MODE" "DEC_PDF417_ENABLED" "DEC_PDF417_MIN_LENGTH" "DEC_PDF417_MAX_LENGTH" "DEC_QR_ENABLED" "DEC_QR_MIN_LENGTH"...
Page 57 Chapter 3 — About the Scanner "DEC_QR_MAX_LENGTH" "DEC_RSS_14_ENABLED" "DEC_RSS_LIMITED_ENABLED" "DEC_RSS_EXPANDED_ENABLED" "DEC_RSS_EXPANDED_MIN_LENGTH" "DEC_RSS_EXPANDED_MAX_LENGTH" "DEC_S25_ENABLED" "DEC_S25_MIN_LENGTH" "DEC_S25_MAX_LENGTH" "DEC_TELEPEN_ENABLED" "DEC_TELEPEN_MIN_LENGTH" "DEC_TELEPEN_MAX_LENGTH" "DEC_TELEPEN_OLD_STYLE "DEC_TLC39_ENABLED" "DEC_TRIOPTIC_ENABLED" "DEC_OCR_MODE" "DEC_POSTAL_ENABLED" "DEC_POSTAL_ENABLED_DIRECT", "DEC_POSTNET_CHECK_DIGIT_TRANSMIT" "DEC_PLANETCODE_CHECK_DIGIT_TRANSMIT" "DEC_VIDEO_REVERSE_ENABLED" "DEC_WINDOW_MODE" "DEC_WINDOW_TOP" "DEC_WINDOW_BOTTOM" "DEC_WINDOW_LEFT" "DEC_WINDOW_RIGHT "DEC_OCR_ACTIVE_TEMPLATES" "DEC_OCR_TEMPLATE" "GENERIC" "DEC_ECI_HANDLING" "SCN_ACTIVESTANDBY_TIMEOUT" "SCN_SCAN_TIMEOUT"...
Page 58 Chapter 3 — About the Scanner "WEDGE_POWER_TIMEOUT" "ENABLE_WEDGE" "ENABLE_GOOD_READ_BEEP" "PREAMBLE" "POSTAMBLE" "ENTER_DELAY"...
Page 59: Use The Phone
Use the Phone You can use the phone feature to make and receive phone calls, as well as transmit data through wireless wide-area networks (WWANs).
Page 60: About The Phone
Chapter 4 — Use the Phone About the Phone Phone features on the computer include a speaker and a microphone. You can also use a Bluetooth headset or hands-free kit. The phone feature, if present, is enabled by default. The WAN radio in your computer determines the supported network types: After you turn on the phone and activate service with your wireless carrier, you can customize the phone features and network settings in...
Page 61 Chapter 4 — Use the Phone 5 Lift up on the SIM and MicroSD door. 6 Press down and slide the SIM door toward the top of the CT50 -Ex to open it.
Page 62 Chapter 4 — Use the Phone 7 Insert the SIM card in the door. 8 Close the SIM card door and slide it toward the bottom of the CT50 -Ex to secure it. 9 Replace the battery, reconnect the handstrap, and press the Power button to turn on the CT50 -Ex.
Page 63: Make A Phone Call
Chapter 4 — Use the Phone Make a Phone Call Once the phone is activated, you can make a phone call. 1 On the Start screen, tap 2 Tap the keypad icon to enter the number, and then touch the Call button to dial the number.
Page 64 Chapter 4 — Use the Phone...
Page 65: Use The Camera
Use the Camera Use this chapter to learn how to take pictures and record videos with the color camera.
Page 66: About The Color Camera
Chapter 5 — Use the Camera About the Color Camera The CT50 -Ex contains an 8-megapixel color camera for taking pictures and videos. The camera and flash are located on the back of the computer. Use the Photos app to view photos and videos stored on the CT50 -Ex. Adjust the Camera and Video Settings The camera and video settings are adjustable from within the Camera app.
Page 67: Change Video Settings
Chapter 5 — Use the Camera 5 Slide the photo setting icon along the half-circle until you reach the setting you want. 6 When you are done changing settings, tap the screen. Change Video Settings You can change the video settings for best results when taking videos. 1 From the right side of the screen, tap to view and modify these photo settings:...
Page 68 Chapter 5 — Use the Camera...
Page 69: Configure The Computer
Configure the Computer Use this chapter to learn how to configure the CT50 -Ex. You will also find information on how to configure network communications and wireless security.
Page 70: How To Configure The Computer
Chapter 6 — Configure the Computer How to Configure the Computer You can configure many parameters on the computer such as the display orientation, or the network settings. The values you set for these parameters determine how the computer operates. You configure the computer using the Settings app.
Page 71: About The Structure Of The Settings App
Chapter 6 — Configure the Computer About the Structure of the Settings App Use this section to learn about the structure of the Settings app so you can find parameters quickly. Settings App Structure Setting Description Provides information about your CT50 -Ex and lets System you set the brightness level, screen rotation, battery saver settings, and photos+camera settings.
Page 72: About Network Communications
Chapter 6 — Configure the Computer About Network Communications You can use the mobile computer in your wireless or wired data collection network. You can connect your computer using: • 802.11 radio communications. • Ethernet communications. • Bluetooth communications. • Near Field Communication (NFC) technology.
Page 73: Connect To A Hidden Wi-Fi Network
Chapter 6 — Configure the Computer 3 Tap a network name in the list to view details: If the network is secured, a list of required information appears (such as a password, or other credentials). To connect to the secured network, enter the required information and tap Done.
Page 74: Modify Channel Settings
Chapter 6 — Configure the Computer Modify Channel Settings You can manually select the channels the 802.11 radio uses for communication. 1 Tap All Apps > Settings > Extras > Wi-Fi Radio Settings. 2 Tap Channel Settings. 3 Swipe left or right to view the channels available under the 2.5 GHz, 5 GHz, and DFS bands.
Page 75: Add A Vpn Profile
Chapter 6 — Configure the Computer Add a VPN Profile Before you can connect to a VPN, you must add VPN information. 1 Tap All Apps > Settings > Network & Wireless > VPN. 2 Tap to Add a VPN connection. 3 From the VPN provider box, select a provider from the drop-down list.
Page 76: About Certificates
Chapter 6 — Configure the Computer About Certificates The CT50 -Ex allows you to install digital certificates for secure client communications with websites and services. You can install certificates through Microsoft Edge, email, or mobile device management (MDM). Once you install a certificate, you can use it to set up your VPN profiles, Wi-Fi, and email accounts.
Page 77: About Bluetooth Communications
Chapter 6 — Configure the Computer About Bluetooth Communications The CT50 -Ex is Bluetooth-enabled, which lets you connect to other Bluetooth devices. You need to turn on the Bluetooth radio before you can discover and connect to other Bluetooth devices. By default, the radio is turned off.
Page 78: About Serial And Usb Communications
Chapter 6 — Configure the Computer About Serial and USB Communications You can use these accessories to transmit data to and receive data from another device through serial or USB communications: • Vehicle dock • HomeBase • Ethernet HomeBase • USB snap-on adapter •...
Page 79 Manage and Maintain the CT50 -Ex Use this chapter to understand how to upload software, perform troubleshooting, and maintain the CT50 -Ex.
Page 80: Update The Ct50 -Ex Software
Chapter 7 — Manage and Maintain the CT50 -Ex Update the CT50 -Ex Software You can use a microSD card to flash a specific firmware image to the CT50 -Ex or to update the computer if there is no access to the internet for over-the-air (OTA) automatic updates.
Page 81: View Network Adapter Information
Chapter 7 — Manage and Maintain the CT50 3 Tap Ping. The results appear in the lower half of the screen. View Network Adapter Information The IPConfig app displays, releases, and renews IP parameters for on- board network adapters. Use IPConfig to view information on the network adapters including the MAC address, IP address, netmask, gateway, and DHCP settings.
Page 82: Change How Data Packets Are Routed
Chapter 7 — Manage and Maintain the CT50 -Ex Change How Data Packets are Routed The Route app allows you to view and edit the rules that govern how packets destined for various subnets are routed. These rules tell the computer which gateways, on a given subnet, may be used to route packets to hosts on other subnets.
Page 83: Restart The Computer
Chapter 7 — Manage and Maintain the CT50 -Ex Restart the Computer You may need to restart the computer to correct conditions where an application stops responding to the system. 1 Save your files and close any open applications. 2 Press and hold the Power button until this screen appears: 3 Swipe down toward the bottom of the screen to power off the CT50 -Ex.
Page 84: Clean Boot The Computer
Chapter 7 — Manage and Maintain the CT50 -Ex Clean Boot the Computer If reset does not work, use a clean boot to get the computer up and running for further troubleshooting. When you perform a clean boot, all personal content is erased and all factory default settings are restored on the computer.
Page 85: Reset The Computer To Factory Default State
Chapter 7 — Manage and Maintain the CT50 -Ex Reset the Computer to Factory Default State If the computer is unresponsive and all other recovery methods have failed, you probably need to reset the computer to the factory default state. When you reset the computer to the factory default state, all personal content is erased and all factory default settings are restored on the computer.
Page 86: Clean The Computer
Chapter 7 — Manage and Maintain the CT50 -Ex Clean the Computer To keep the computer in good working order, you may need to clean the scanner window, color camera window, and the touch screen. Clean the windows and the touch screen as often as needed for the environment in which you are using the computer.
Page 87: Specifications
Specifications...
Page 88: Physical And Environmental Specifications
Chapter A — Specifications Physical and Environmental Specifications This section lists the physical and environmental specifications for the CT50 -Ex. Physical Dimensions Length: 160 mm Width: 82.5 mm 19 mm (without handstrap) Depth: 22.6 mm (with handstrap) Weight: 342 g (including battery) Tumble and Drop Specifications Tumble specification: 1000 1 m tumbles...
Page 89 Chapter A — Specifications Screen Specifications 4.66-inch TFT color LCD with backlight, 720-pixel HD, outdoor viewable touch screen. Language Support World-wide English, French, German, Italian, Spanish, Simplified Chinese, Traditional Chinese. Bar Code Symbologies Supported The CT50 -Ex supports these bar code symbologies: 1D Symbologies •...
Page 90 Chapter A — Specifications • EAN-13 with 2 Digit Addenda • EAN-13 with 5 Digit Addenda • GS1-128 • Korea Post • IATA 2 of 5 • Industrial 2 of 5 • Interleaved 2 of 5 • ISBN • ISBN with 5 Digit Addenda •...
Page 91 Chapter A — Specifications • MicroQr • PDF 417 • QR Code • TLC39 • OCR-A • OCR-B Postal Codes • Australian Post • Canadian Post • KIX (Netherlands Dutch) Post • Japanese Post • British Post • Planet Code •...
Page 92 Chapter A — Specifications White Illumination Monochrome Sensor Only - Guaranteed Specs Focus Standard Range (SR Symbology Near Distance Far Distance Delta (in/cm) (in/cm) (in/cm) 10 mil DataMatrix/Aztec 2.9 (7.4) 7.3 (18.5) 4.4 (11.1) White Illumination Monochrome Sensor Only - Typical Specs Focus Standard Range (SR Symbology...
