Summary of Contents for Ronix RH-9601

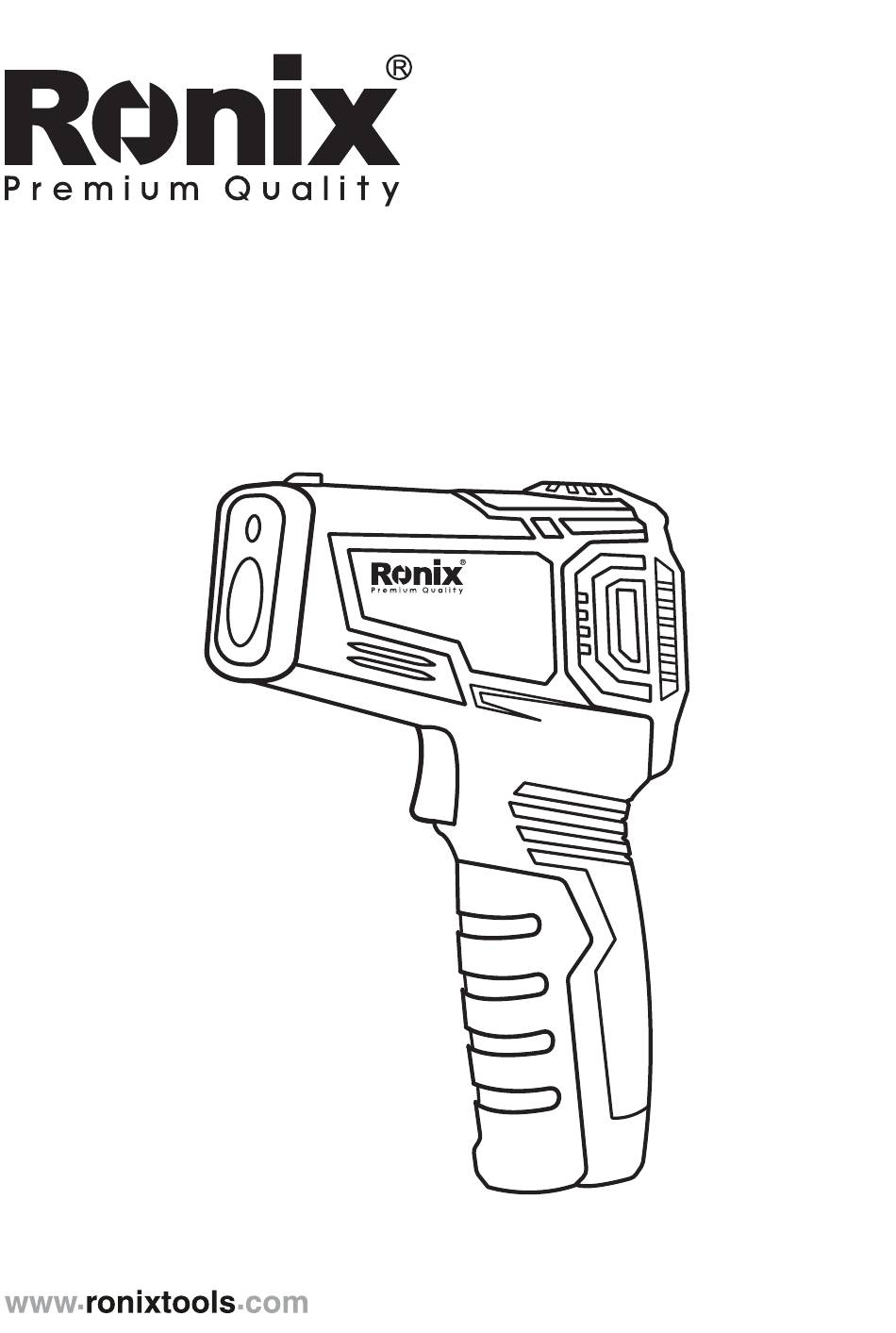

- Page 1 INFRARED THERMOMETER RH-9601...
-
Page 2: Specifications
Low battery indication Auto Power Off Back light Power 1.5V AAA battery Weight 112g size 145mm × 92mm × 45mm Safety Rating EN61326, EN60825 Supplied in Ronix color box Includes 2 pcs 1.5V AAA battery Max. Exhibition 3999 USER MANUAL... -
Page 3: Parts List
PARTS LIST Alarm indicator Laser LCD display Infrared sensor induction zone ºC/ºFkey / digital regulation increase key Measure Trigger Mode key Switch Laser key / digital adjusting control key decreases Battery cover LCD DESCRIPTION 1-Data hold indicator 2-Temperature upper limit alarm indicator 3-Temperature lower limit alarm indicator 4-Measuring indicator INFRARED THERMOMETER... -
Page 4: Safety Statement
5-Laser on indicator 6-Low battery indicator 7-Centigrade unit 8-Fahrenheit degree unit 9-Maximum display 10-Maximum indicator 11-Temperature display 12-Emittance display SAFETY STATEMENT “Caution” mark refers to the condition and operation which may cause damage to the instrument or equipment. It requires that you must be careful during the execution of the operation. If incorrectly perform the operation or do not follow the procedure, it may damage the instrument or equipment. - Page 5 SAFETY OPERATION SPECIFICATIONS WARNING! To prevent eye injury or personal injury: - Please read the manual carefully before using the product. - Please do not look at the laser directly. Do not direct laser direct to humans or animals or indirectly from the reflecting surface. - If the instrument works abnormally, do not use.
- Page 6 OPERATING THERMOMETER ALARM UPPER LIMIT SETTING 1- Press "MODE" key and hold for more than 2 seconds. The meter enters the set state. 2 -Press "MODE" key(≤1Sec.) Switch to alarm upper limit set state, display the "Hi". And display the current alarm upper limit value. 3- Press"▲/▼"key increase or decrease the set value, press and hold key to increase or decrease the set value quickly.
- Page 7 REFERENCE TABLE OF INFRARED RADIATION MEASURED SURFACE RADIATION OXIDIZED 0.2-0.4 ALUMINUM A3003 ALLOY (OXIDIZED) A3003 ALLOY (COARSE) 0.1-0.3 POLISHING BRASS OXIDIZED OXIDIZED 0.4-0.8 COPPER ELECTRICAL TERMINAL BOARD HASTELLOY 0.3-0.8 OXIDIZED 0.7-0.95 FERRO-NICKEL ABRASIVE BLASTING 0.3-0.6 ELECTROPOLISHING 0.15 OXIDIZED 0.5-0.9 IRON RUST 0.5-0.7 OXIDIZED...
-
Page 8: Temperature Unit Setting
SILICON CARBIDE CERAMICS 0.95 CLAY 0.95 CONCRETE 0.95 CLOTH 0.95 GLASS PLATE 0.85 GRAVEL 0.95 PLASTER 0.8-0.95 0.98 LIMESTONE 0.98 PAPER 0.95 PLASTICS 0.95 SOIL 0.9-0.98 WATER 0.93 TIMBER 0.9-0.95 LASER ON OR OFF In the measurement mode, press " "... - Page 9 Maximum value of the meter shows the maximum value of the measurement temperature. When the measured value is greater than the set upper temperature alarm value or the measured value is less than the set lower temperature alarm value, the instrument alarm indicator lights red and displays "Hi" or "Low" characters.
-
Page 10: Replace The Battery
Make sure the object under test is full of the field of view of the thermometer, that is, let the thermometer "see" only the object under test and "not see" other objects. The larger the object is, the farther the distance can be measured;... - Page 11 prevent the battery from leaking and damage the instrument. - Please make sure that the battery is correct in order to prevent the battery leakage. - Do not connect the battery terminals together. Do not disconnect or squeeze the battery. - Do not store batteries in containers that may cause short circuit terminals.
