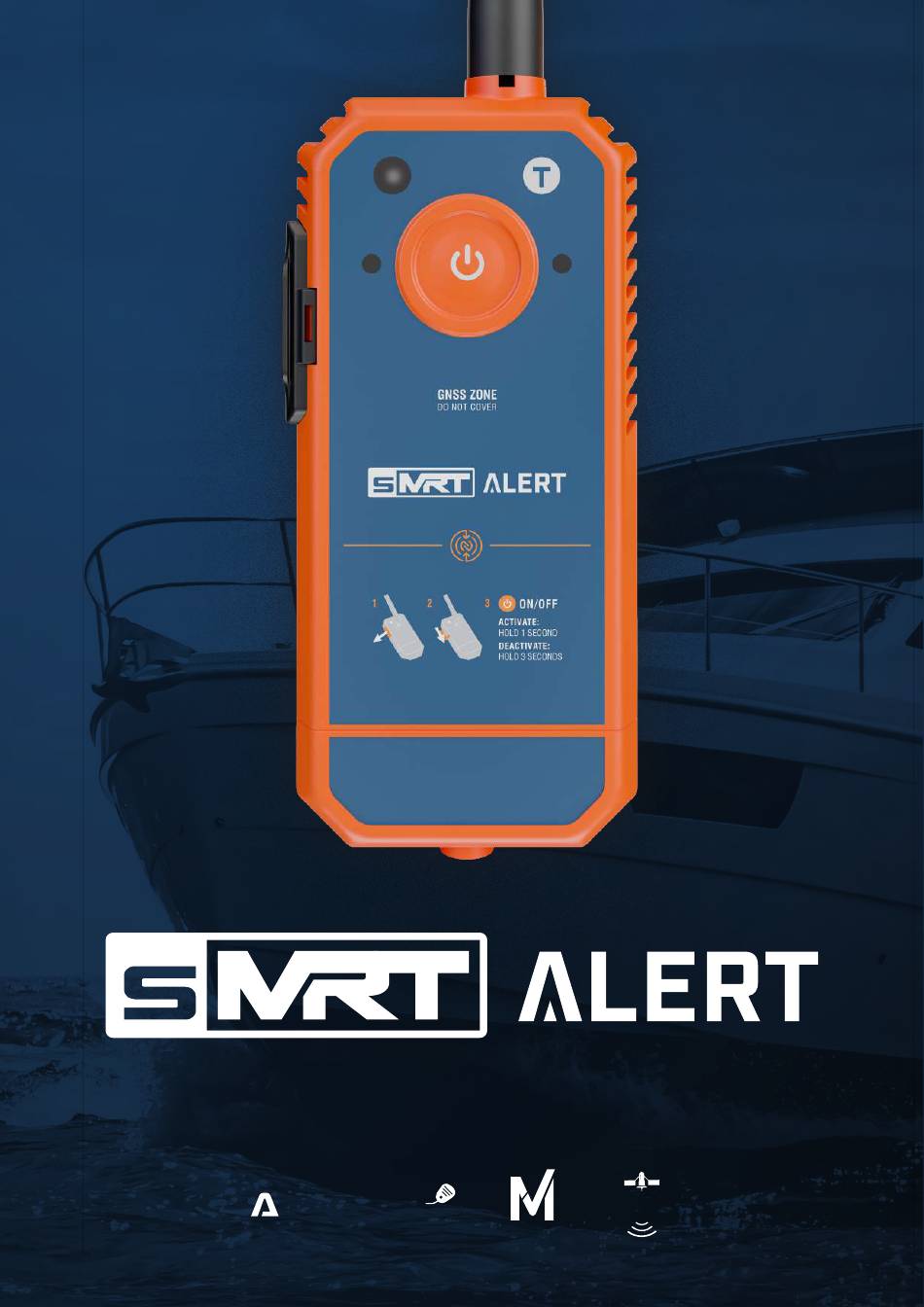

Page 1 PRODUCT USER MANUAL GNSS CLASS-M...
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Introduction Glossary of terms & acronyms Warnings & safety information sMRT ALERT OVERVIEW Introduction What’s in the box? Features Device label HOW TO USE THE DEVICE How to arm your device How to activate your device...
Page 3: Introduction
IMPORTANT NOTES: Important instructions that should be adhered to during system operation. TYPOGRAPHIC CONVENTIONS 1. sMRT ALERT hardware features are displayed in bold upper case letters e.g. ARMING SWITCH. 2. Operation status are displayed in bold upper case letters with square brackets, e.g.
Page 4: Glossary Of Terms & Acronyms
INTRODUCTION GLOSSARY OF TERMS & ACRONYMS AIS – Automatic GNSS – Global navigation RTCM – Radio Identification System satellite system Technical Commission for Maritime Services Ack – Acknowledgment GPS – Global Positioning System Rx – Radio Receiver Class-M – Man Overboard Class IS –...
Page 5: Warnings & Safety Information
• Once fitted into a PDF, a full system test of the sMRT ALERT should be performed every 3 months. Do not test the device more than once per month to avoid affecting battery performance in an emergency.
Page 6 CAUTIONS: • Do not paint the sMRT ALERT or clean it with aggressive detergents or solvents. Some cleaning materials may damage the seals and affect the integrity of the device. This will VOID the product warranty.
Page 7: Smrt Alert Overview
Search and Rescue (SAR) authorities. HOW THE sMRT ALERT WORKS The sMRT ALERT uses the marine VHF radio band to transmit DSC distress alerts and updated GPS positions regularly from the casualty in the water to VHF DSC radios, as well as AIS equipped vessels within range.
Page 8: What's In The Box
ALERT OVERVIEW WHAT’S IN THE BOX? sMRT ALERT Bladder Attachment Clip Oral Tube Mounting Clip Lanyard Neoprene Belt Pouch Velcro Fixing Strap sMRT ALERT Antenna VERSION 1.0 | JANUARY 2024 | EN...
Page 9: Features
ALERT OVERVIEW FEATURES Antenna Eyelet Strobe light TEST button Arming Switch Left LED Right LED ON/OFF button GNSS receiver NFC Zone Water sensor EYELET The eyelet on the rear of the device allows for the cord of the lanyard to be passed through and tied securely.
Page 10: Device Label
ALERT OVERVIEW DEVICE LABEL The rear of the unit features a label indicating all relevant device and safety information as well as compliances. Please make sure you are familiar with the information displayed. The location of the – MOB is regularly updated and displayed on an AIS enabled device.
Page 11: How To Use The Device
HOW TO USE THE DEVICE HOW TO ARM THE DEVICE NOTE: Before first use make sure that the antenna is securely attached to the device 1. Begin by opening the DOOR COVER, which is located on the side of the beacon. 2.
Page 12: How To Activate Your Device
1. The device beeps initially 3 times, and 2. The LEFT LED flashes purple, 3 times. After the 20 second warning period the sMRT ALERT will commence AIS and emergency VHF DSC transmissions. The internal GPS receiver will acquire a position within approximately one minute of activation and the device can then send VHF DSC and AIS transmissions containing the casualty’s current position.
Page 13: How To De-Activate Your Device
HOW TO USE THE DEVICE HOW TO DE-ACTIVATE THE DEVICE SECONDS 1. Press and hold the ON BUTTON down for 3 seconds. -OR- 2. Open the ARMING DOOR and slide the ARMING SWITCH from [ARMED] to the [OFF] position. 3. Simply acknowledge the VHF DSC alert on any radio that has received it. This will cancel the emergency but the beacon will continue to broadcast its position on AIS until it is manually de-activated.
Page 14: Prevention Of Accidental Activation
HOW TO USE THE DEVICE PREVENTION OF ACCIDENTAL ACTIVATION The sMRT ALERT features an ARMING DOOR to prevent the device from being accidentally activated. In addition, manual activation is a two-stage process, requiring the user to open the ARMING DOOR and slide the ARMING SWITCH to the [ARMED] position to arm the device.
Page 15 HOW TO USE THE DEVICE sMRT ALERT LED INDICATIONS During operation, the LEFT LED indicates device status and the RIGHT LED indicates GPS status. The LEDs may display the following indications: STATE LEFT LED RIGHT LED Arming Purple 3 flashes...
Page 16: Testing
1. Ensure the device has a clear view of the sky during testing to receive a GPS signal. 2. If the sMRT ALERT fails any element of a self-test or any full system test, take it out of service immediately.
Page 17 HOW TO USE THE DEVICE SYSTEM TEST To perform a test of the sMRT ALERT ensure the ARMING SWITCH is [OFF] and the hold the [TEST] button for more than 3 seconds. Self-test LED indications are displayed for several seconds at this point and may display as follows: Short beeps (approx every 15-20 seconds).
Page 18 HOW TO USE THE DEVICE FULL SYSTEM TEST 1. The LED indicators shows battery condition [GREEN] is good, [RED] means replace the battery. During stage 1 the GNSS is activated to look for satellites. 2. The AIS test burst is transmitted — LED indicator is purple. 3.
Page 19: Recertification And Servicing
RECERTIFICATION AND SERVICING We recommend annual recertification to ensure the sMRT ALERT operates effectively in a lifesaving situation. Do not use your sMRT ALERT if there are any signs of damage, or if any functional tests fail RED LED. The manufacturer and authorised service agents –...
Page 20: Mobile Application
3. Once complete, you will be shown a screen that will display the status of your beacon, which will either say [ARMED] or [OFF]. This feature only applies to the sMRT ALERT and may not work with other devices. SELF-TEST DEVICE Perform a test and view the historical results of your device.
Page 21 HOW TO USE THE DEVICE CHECK BATTERY LEVEL View and understand your device’s current battery levels. 1. Inside the product screen, press the BATTERY STATUS BUTTON. 2. Press the SCAN DEVICE BUTTON on the NFC screen. When prompted, hold your phone up to the device and wait for the scan to complete.
Page 22: Documentation
DOCUMENTATION WARRANTY Your sMRT ALERT is covered by a warranty against manufacturing defects in materials and workmanship for a period of 1 year from the date of purchase and an additional 4 years upon registration of the extended warranty, in accordance with the following conditions: •...
Page 23: Disclaimer
Use of the sMRT ALERT in no way reduces liability of the vessel’s master and crew who have the primary responsibility for safety on board.
Page 24: Trademark Notice
Rescue Technologies at mrtcustomerservice@wescom-group.com for a copy of our trademark policy before referencing or using any trademark or product name. © Marine Rescue Technologies Limited 2024. All rights reserved. No part of this publication may be transmitted or copied in any form whatsoever, without the express written permission of Marine Rescue Technologies Limited.
Page 25: Specification
DOCUMENTATION SPECIFICATION E N V I R ON M E N TA L G E N E R A L 9.0V 1650mAh Lithium Manganese Dioxide (LiMnO2) B AT T E RY T Y PE Minimum of 12 hours at -20°C. MI NI MU M A L E R T I N G P ER I O D 5 years B AT T E RY S HE L F L I F E AT + 2 0 °C...
Page 26: Product Attachments
Bladder Attachment Clip Oral Tube Mounting Clip P/N: 713020300 P/N: 713020301 Lanyard Neoprene Belt Pouch P/N: 713020321 P/N: 713020322 sMRT ALERT Velcro Fixing Strap sMRT ALERT Antenna P/N: MOA-50070 P/N: 713020323 P/N: 712000089 VERSION 1.0 | JANUARY 2024 | EN...
Page 27: Notes
DOCUMENTATION NOTES VERSION 1.0 | JANUARY 2024 | EN...
Page 28 WESCOM GROUP, UNIT J1, ANLABY TRADE PARK, SPRINGFIELD WAY, ANLABY, HULL, HU10 6RJ TEL: +44 (0)1482 679 300 | SMRT@WESCOM-GROUP.COM | WWW.MRTSOS.COM...
