Giraffe Tools HC-CZ2201 - Car Tire Inflator Manual

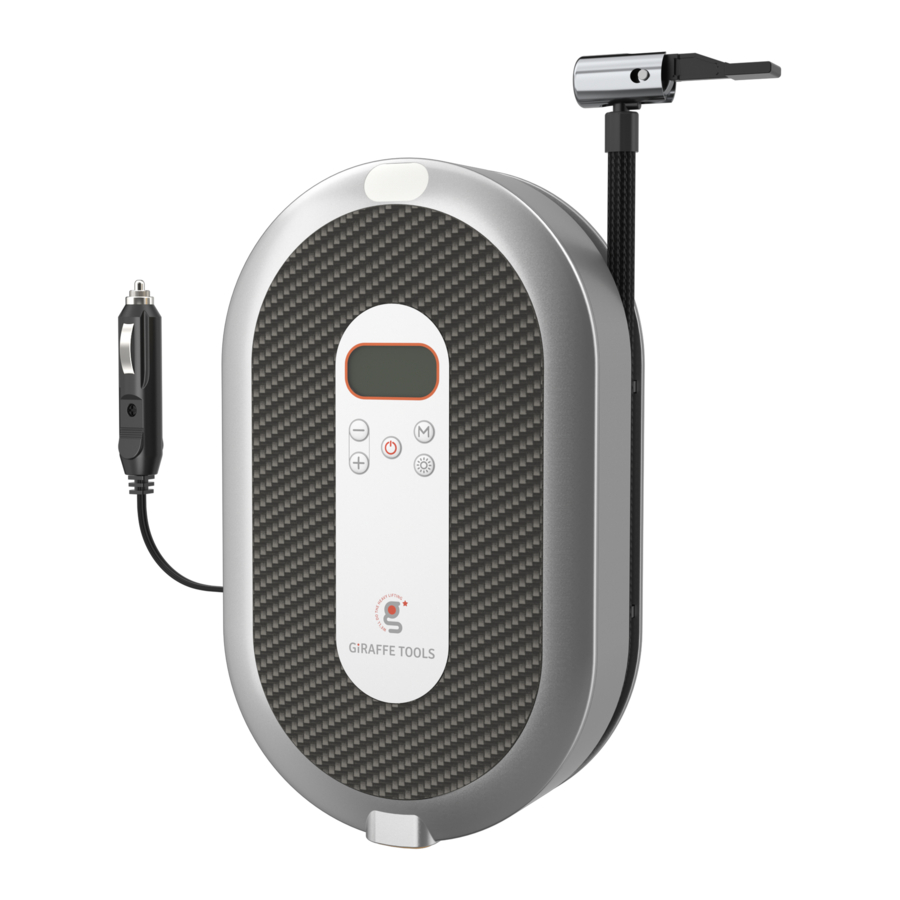

PRODUCT DETAIL

1. Inflation inlet
2. LED light
3. Power cord
4. Air pressure gauge
5. "M" Button - Switch the pressure unit
6. Light switch
7. Power switch4
8. "+""-" Button - Increase/Decrease the value
9. Retract button
10. Fuse
11. Valve extender
12. Long tapered nozzle
13. Short tapered nozzle
14. Needle

PRODUCT OPERATION

CHOOSE THE RIGHT NOZZLE

The needle can be used to inflate various kinds balls like basketballs, footballs, volleyballs, etc.

Short tapered nozzle can be used to inflate air matresses, air beds, etc.

Long tapered nozzle can be used to inflate objects like swimming rings, etc.

REFERENCE PRESSURE

HOW TO INFLATE

1. Start the car engine.

2. Insert the power cord into the 12V cigarette lighter socket.

3. Remove the dust cap of the valve, and then connect the air hose to the valve. Make sure the hose and valve of the inflatable are connected tightly.

4. Check the current pressure of the inflatable first. Then, press the "M" button to choose the pressure unit, and then press "+" or to set your desired pressure. When the number stops flashing, the pressure is set.

5. Press the power switch to start inflating. When reach the pre-set pressure, the compressor will stop automatically.

6. After inflation, please press the power switch button again to turn off the air compressor. (It will turn off automatically after 60 seconds.) Then disconnect the power cord and the nozzle.


HOW TO CHANGE THE FUSE

STEPS:

1. Hold the nut with pliers and turn counterclockwise to remove the nut.
2. Take out the part 2 and part 3 (fuse)
3. Insert the new fuse.
4. Put the parts back in sequence and tighten the nut clockwise with pliers.

SPECIFICATIONS

MALFUNCTION

The following is the inspection of common malfunctions. If common malfunctions persist after attempted treatment, please contact Giraffe Tools custonner service for assistance.

PRODUCTS RECOMMENDED

Scan code to visit Giraffe Tools store on Amazon.com

Scan code to visit giraffetools.com

Scan code to join our facebook group

If you are interested in the above products, you can visit giraffetools.com or search for Giraffe Tools on Amazon

CAUTION

• When the power cord is retracting, hold the cord in your hand and the other hand press the retract button. The retract power is very strong!
• Read and follow all instructions before use. Before using the air compressor, inspect the exterior to ensure it is free from defects.
• Do not use this product for applications outside of its intended use.
• Do not place the air compressor near heat sources, such as your vehicle's exhaust pipes.
• Do not use near flammable liquids or gases.
• Do not use the air compressor if it is damaged.
• Do not over-inflate tires. High pressure air can cause injury.
• Keep out of reach of children.
• Connect the pump to a 12V DC, 10A cigarette lighter Do NOT use with a 24V connection. Utilize an AC to DC power converter if you want to use this pump with an AC power supply.
• Do not expose the pump to rain or water of any kind.
• Keep the device away from fire, corrosive liquids, and strong magnetic fields.
• Do not turn off the car engine while the air compressor is working.
• Air nozzle is compatible with all schrader valves, making it compatible with cars, small trucks and SUV, motorcycles, and bicycles.
• The included accessories are compatible with all balls that require a needle.
• The pump is not intended for use with high pressure or large volume applications.
• Do not store the air compressor in high temperature or humid environments.
• When not in use, disconnect the air compressor from all power sources.
• The air compressor may heat up during continuous use, be careful when handling the air compressor during or after use.
• Avoid extended and continuous use. The optimum time for continuous use is 15 minutes.
• After extended use, let the pump rest for 10 minutes after extended use.
• Do not pull the power cord when the stop line shows(The Red Label).
