UNIT 1 U1 User Manual

Smart light
Hide thumbs

Advertisement

Table of Contents

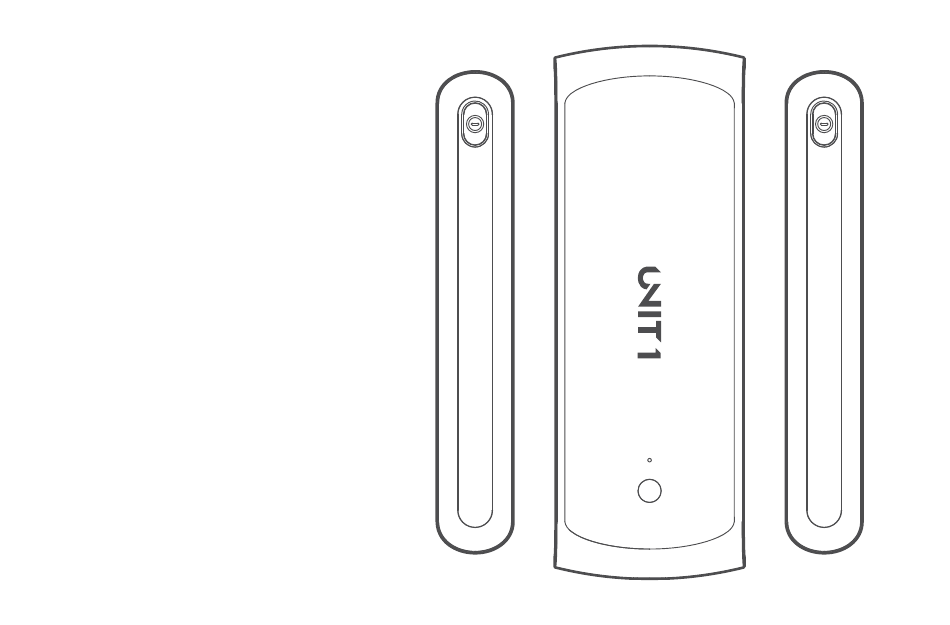

S M A R T L I G H T
User
manual.
@unit1gear
@unit1gear
www.unit1gear.com
www.unit1gear.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U1 and is the answer not in the manual?

Questions and answers

Summary of Contents for UNIT 1 U1

  • Page 1 S M A R T L I G H T User manual. @unit1gear @unit1gear www.unit1gear.com www.unit1gear.com...
  • Page 2 Congratulations. You are leveling up your safety with the U1 Smart Light. This embodies the work of creators, designers, engineers and entrepreneurs trying to build something unique. You are now a part of its story – use it with pride.
  • Page 3 IMPORTANT Please read this manual carefully before using your U1 Smart Light(s) for the first time.

  • Page 4: Safety Information

    Certain places have laws that require specific bike-mounted light, please make sure you comply with local regulations before using this product. Turn signals are a supplement, not a replacement of hand signals. Unit 1 Gear, Inc. and/or its subsidiaries are not responsible for any failure of communication resulting from turn signals or brake lights.
  • Page 5 Introduction U1 Smart Light is a rear & front bicycle light. It is magnetically attachable to a variety of mounts and thus usable in a variety of situations.
  • Page 6 Package content - Smart Light 1. Smart Light 2. Universal mount 3. Universal mount strap (Long & Short) 5. Allen wrench 6. USB Type-C / Type-A Cable...
  • Page 7 Package content - Smart Light Dual Pro 1. Smart Light X2 2. Charging case 3. Universal mount X2 3. Universal mount strap 5. Allen wrench 6. USB Type-C / (Long & Short) X2 Type-A Cable...
  • Page 8 Overview 1. Light 2. Operation 3. Direct Charging 4. Charging Case 5. Mounts 6. Nav Remote 7. Unit 1 App 8. Specs 9. Misc...
  • Page 9 1.Light Description The U1 Smart Light is comprised of 2 outer rings of red & white LEDs respectively and an inner strip of RGB LEDs. Through the use of a proprietary algorithm the light can switch from rear light (red) to front light (white).

  • Page 10: Operation

    2.Operation Changing Modes To set the U1 Smart Light on either Rear or Front Mode, power it on by pressing & holding the power button until you see light. After getting a battery reading (displayed via a colored light bar), hold the light in one of these 4 positions to trigger the correct mode.

  • Page 11: Direct Charging

    3.Direct Charging The U1 Smart Light can be charged directly via a water proof USB-C port located on the rear side. Whilst plugged in, the light will display a green bar showing charging percentage. A full green bar indicates a full charge.

  • Page 12: Charging Case

    4.Charging Case Basics When purchased in twos, the Smart Lights come with a Charging Case. The Charging Case can carry and charge up to 2 Smart Lights simultaneously.
  • Page 13 Charging Lights in the Case To charge the Smart Lights in the Charging Case, position each light in either dock, making sure the pins on the Smart Light are aligned with the pins on the Charging Case (the magnets will pull the Smart Light into position when aligned correctly).
  • Page 14 Pass-through Charging The Charging Case itself can be charged via the USB-C port on the side. When plugged in alone, it will only charge itself. When plugged in with 1 or 2 Smart Lights docked in, it will first charge the Smart Lights and only once they are fully charged, charge its internal battery.
  • Page 15 5.Mounts Overview The U1 Smart Light can be docked into a variety of mounts, each serving a different purpose and applicable for different use cases. 1. Universal Mount 2. Saddle Mount 3. Helmet Mount 4. Clip Mount...
  • Page 16 Universal Mount To install a Universal Mount: 1. Choose a rubber strap (A) of the required length (2 available). 2. Install the rubber strap (A) on 1 end of the mount core (B). 3. Tighten the rubber strap around the seat post/handlebar (C), making sure it is tightly fastened.
  • Page 17 4. Control orientation by lightly loosening the inner screw (D) and rotating the dock (E) into the desired position (horizontal or vertical). The screw (D) can be taken off completely to release the dock (E) and reinstall it in an offset position. 5.
  • Page 18 6. Control angle via the side screw (F). 7. Test the entire assembly to make sure it is secure. And mount your Smart Light (H) magnetically for riding.
  • Page 19 Saddle Mount To install a Saddle Mount: 1. Remove the screws (A) to fully disassemble the clamp. 2. Position the top half of the clamp (B) over the tube structure underneath your saddle. 3. Position the bottom clamp (C) under the tubes. 4.
  • Page 20 5. Control angle via the side screw (E). 6. Test the entire assembly to make sure it is secure. And mount your Smart Light (F) magnetically for riding.
  • Page 21 Helmet Mount To install a Helmet Mount: 1. Clean the helmet prior to installation – use a damp cloth and wait for it to dry up. 2. Turn on a Smart Light (A) and dock it into the mount (B) to make sure it fits in the desired mode. Remove the back film (C) of the mount, exposing the sticky surface.
  • Page 22 Position the mount (B) on the helmet and press firmly for 40 seconds. Check if the mount is secure by docking and undocking a Smart Light (A). And mount your Smart Light magnetically for riding.
  • Page 23 Clip Mount To install a Clip Mount: 1. Open the clip (A) to hook the mount where you want. 2. Turn on the Smart Light (B) and dock it to make sure the position of the Smart Light is correct. Mount your Smart Light (B) magnetically for riding.
  • Page 24 6.Navigation Remote Overview The U1 Smart Light can be connected to the U1 Navigation Remote. This enables Turn Signals, Brake Light and Remote Power on your Smart Light(s). Pairing trough App (recommended) Offline Pairing 1. Power on 1 Smart Light first 1.

  • Page 25: Function Guide

    7.Function guide UNIT 1 App The U1 Smart Lights are compatible with our Companion App. The App will allow you to customize the lights to your liking, track battery levels across multiple U1 devices and access the Crash Alert feature if you have a U1 Helmet.
  • Page 26 8. Specs U1 Smart Light U1 Charging Case Battery Capacity : 600mA Input : DC 5V 1.0A. USB type C Charging current for battery : 800mA Battery Capacity : 2500mAh. Charging current for battery : 800mA Battery Life: Working Temperature : 0 to +40°C Solid @ 100% : 180 min •...
  • Page 27 SPECIFICATION OF RADIO TRANSMISSION PRODUCT: U1 SMART LIGHT PRODUCT: U1 CHARGING CASE MODEL NUMBER: SL_1.0 MODEL NUMBER: CC_1.0 2402 - 2480MHz 2402 - 2480MHz OPERATING FREQUENCY: OPERATING FREQUENCY: POWER: DC 5V 1A POWER: DC 5V 1A FCC ID: A25E-R08 FCC ID:...
  • Page 28 Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 29 Recommendations for use • Do not try to replace the battery or open the case or take your U1 Smart Light or Charging Case apart. Each of these actions will void the warranty and may pose safety risks. The substances contained in batteries may be harmful for the environment or cause injury if handled and disposed of inappropriately.
  • Page 30 This product is not a toy. Do not let children or pets play with your U1 Smart Light. The product contains small parts which can be a choking hazarddisposed of separately from household waste as per the instructions.

  • Page 31: Warranty

    If your U1 SMART LIGHT or CHARGING CASE is found to be defective in materials or workmanship within one year from the date of purchase, Unit 1 Gear, Inc. will at its sole option either repair or replace the helmet free of charge. This warranty does not affect your statutory rights.
  • Page 32 Unit 1 Gear, Inc. HQ. Calle del Alcalde Sainz de Baranda 33, 1A, Madrid, 28009, Spain US Mailing. P. O. Box 3667, Little Rock, AR 72201, USA Email. support@unit1gear.com www.unit1gear.com youtube.com/@unit1 facebook.com/u1gear instagram.com/unit1gear...
