Summary of Contents for BR Remote GS200

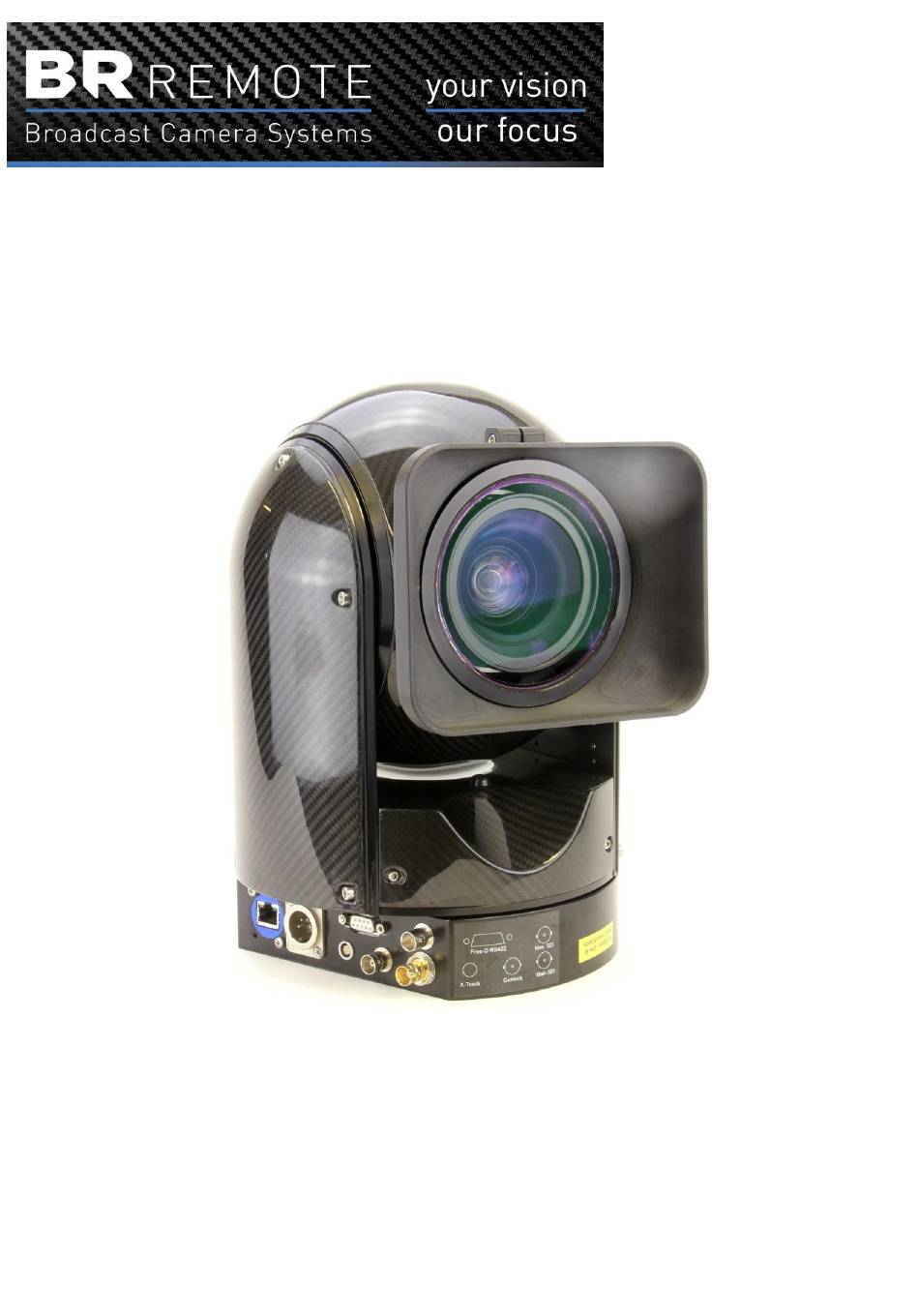

- Page 1 GS200 Operation Manual Ver. 2021.3 - 1 -...
-
Page 2: Table Of Contents
Contents Introduction ...……………………….. System Components ………………. Mechanical Rigging ………………… Fitting the ND filters …………………. Wide Angle Lens Removal …………. Power & Control ………………………. Connections ………………………….. Joystick Control ………………………. 10 Power Re-Set ……………………...… Remote Camera Panel …………….… 11 CCU Commands ………………………. 12 - 2 -... -
Page 3: Introduction
GS200 Technical Manual. The GS200 requires just power and control data. The control data can be routed via the RS485 serial input or over an IP network. The IP settings are pre-configured at the factory but can be re-configured at any time to suit the particular network. -
Page 4: System Components

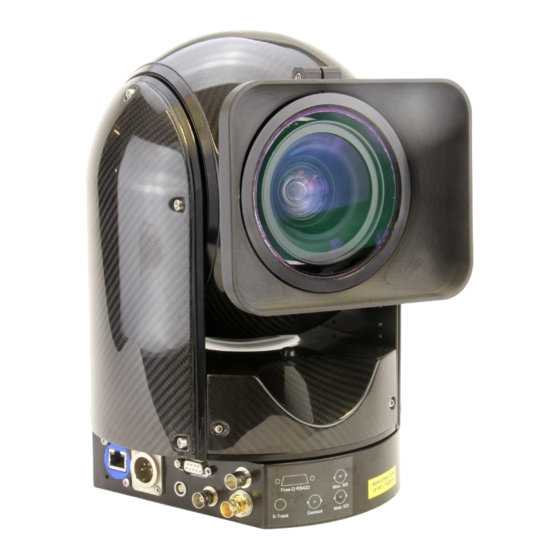

System Components GS200 camera unit Lens Hood 55mm ND Filter set Multi Function Controller Remote Camera Panel XLR4 – XLR4 cable XLR3 – XLR3 cable There are enough cables and power supplies to connect the system on the bench for testing and familiarisation of the controls and functions. -
Page 5: Mechanical Rigging
On some platforms an isolation mount may be required to remove high frequency vibrations. BR Remote can supply various isolation mounts depending on the actual requirement. The GS200 can be mounted either way up, standing or hanging. If the unit is to be mounted above the heads of people then... -
Page 6: Fitting The Nd Filters
ND Filter If the lighting conditions are bright sunshine it is better to fit one of the supplied ND Filters to allow the iris to operate below the extreme of F28. Aim to operate the lens between F5.6 – F8. Also set the Dynamic Range to LOW. The ND filter is threaded on to the lens inside the ball. -
Page 7: Wide Angle Lens Removal
Wide Angle Lens Removal The GS200 can be supplied with a wide angle lens option. This can be removed if desired. With the kit is an alternative Front Port fitted with a bearing specifically for use when the Wide Angle Lens is not required. -
Page 8: Power & Control
Power & Control There are 2 methods of connecting and controlling the GS200: 1. Power + RS485 control data. This is via the XLR4 connector. 2. Power only via the XLR4 connector + Network data via the RJ45 network connector. -
Page 9: Connections
Connection Details The GS200 control data can be at either of 2 data formats; 1. 9,600baud, 8, n, 1 this is our standard Dstar setting. 2. 38,400baud, 8, o, 1 this matches Free-D and is used for the network input. -
Page 10: Joystick Control
– The horizon can be levelled from the Setup menu by selecting <Product>, Roll Levelling <GS200>. The roll control is via the UP and Down buttons below the menu. The horizon stability is very good and should require only occasional adjustment. -
Page 11: Remote Camera Panel
Remote Camera Panel The Remote Camera Panel is connected to the Multi Function Controller using an XLR3 cable. A short XLR3 cable is supplied to bench test the system. Any XLR3 audio cable or audio tie-line can be used for this connection up to about 1km. Refer to the specific instruction manual for the RCP. - Page 12 10 mm. (at wide) - Infinity Iris: F1.6 – F28 Iris Range: Iris Resolution: 255 steps Technical details, procedures for fault tracking and software updates etc. are available in the – available on request. GS200 Technical Manual - 12 -...
- Page 13 BR Remote Ltd Units 14 - 20, Setley Ridge Vineyard Lymington Road Brockenhurst SO42 7UF www.br-remote.com Tel 44 (0)1590 622440 admin@br-remote.com - 13 -...
